We will simulate a basic system where entities (customers) arrive at a resource (service counter), wait if it is busy, are served, and then leave. In this model:

• Arrivals: Customers arrive every 60 to 70 time units.
• Service: Service time at the counter ranges from 60 to 90 time units.
• Queues: If the counter is busy, customers wait.
• Departure: Customers take 10 time units to move into the queue and another 10 to leave after service.

For those familiar with classic GPSS, we would have:

GENERATE 60,10   ; Entities are generated every 60 to 70 time units.
ADVANCE 10       ; Takes 10 time units to move into the counter queue.
SEIZE VENTANILLA ; The entity arrives at the counter queue.
ADVANCE 60,30    ; Service time: 60 to 90 time units.
RELEASE VENTANILLA ; Leaves the counter.
ADVANCE 10       ; Takes 10 time units to leave.
TERMINATE 1      ; The entity finishes.
START 100        ; Executes until 100 entities have been served.

In GPSS-Plus, it is very similar, but with graphical representation. To achieve this, we configure resources and additional parameters:

FACILITY {NAME:VENTANILLA, X:300, Y:300} ; Define the counter in space.
POSITION {NAME:SALIDA, X:500, Y:300}    ; Define the exit in space.

GENERATE 60,10 {NAME:GEN1, X:100, Y:300} ; Position the entity generator.
ADVANCE 10 {TO:VENTANILLA}               ; Move towards the counter.
SEIZE VENTANILLA                        ; Assignment of the "VENTANILLA" resource.
ADVANCE 60,30                           ; Service time: 60 to 90 time units.
RELEASE VENTANILLA                      ; Release of the resource.
ADVANCE 10 {TO:SALIDA}                  ; Move towards the exit.
TERMINATE 1                             ; The entity finishes.
START 100                               ; Executes until 100 entities have been served.

Final step: Press Play and observe the result. The first entity will exit the "Generate" block between time 60 and 70.

As can be observed, the program has not changed much to add the graphical component. Basically, we have defined the spatial layout of the elements.

In a simulation, there are two main elements at play:

1. ENTITIES, or transactions, are the elements that change their state during the simulation. They can represent people, boxes, or any kind of item. In GPSS-Plus, they are represented as colored dots. These entities interact with the environment. For example, they enter the system through the GENERATE block, move through a circuit using ADVANCE, and terminate at a TERMINATE block.

2. RESOURCES, which make up the environment and are used by entities, such as a service counter or a container larger than the entity itself.

For example, a person (entity) approaches a service counter (resource). This counter is defined by a COMMAND, and a set of BLOCKS describe what the person does in relation to that counter.

An example of defining a resource as a service counter is the COMMAND:

FACILITY {name:Ventanilla1, x:100, y:100}

An example of an instruction for an entity to occupy that counter is the BLOCK:

SEIZE Ventanilla1

In summary, the language is based on two main elements: blocks and commands.

1. Blocks bound to entities

Blocks are instructions that ENTITIES execute directly during the simulation. Each block defines a specific action that affects the flow or state of that entity.

General syntax:

BLOCK [PARAMETERS A,B,C..] {JSON-LIKE OPTIONS}

Block examples:

ASSIGN variableName,10
TERMINATE 1

Parameters are named by letters (A, B, C, ...). Depending on the block, they may also include parameters in a JSON-like format, usually defining graphical or advanced aspects.

Example:

MOD {COLOR:#FF0000} ; sets an entity to red color.

Another example:

ADVANCE 10,5 {TO:Ventanilla1} ; the entity advances in time towards "Ventanilla1"

2. Commands bound to resources and the engine environment

Commands configure the simulation environment. Unlike blocks, they are not executed directly by entities. Instead, they define resources, graphical positions, and system rules.

General syntax:

COMMAND {NAME:theName, JSON-LIKE OPTIONS}

Example of defining a storage resource:

STORAGE {NAME:ALMACEN1, CAPACITY:10, X:270, Y:200}

This format allows adding additional information such as position (X, Y).

In GPSS-Plus, variables allow storing information that can be used by entities or to configure elements of the environment. These variables are mainly divided into two types:

1. SAVEVALUE (global variables): Global variables are accessible by any entity and persist throughout the entire simulation. They are useful for storing shared data such as counters, accumulators, or global states.

Syntax:
SAVEVALUE variable, value

Example:

SAVEVALUE TiempoEspera, 8

This command sets the global variable "TiempoEspera" to a value of 8.

Once defined, the value can be updated at any time:

SAVEVALUE TiempoEspera, 10

The value of "TiempoEspera" is now 10.

To retrieve the value of a global variable, SNA are used, which follow a specific format:

X$savevalueName or X$(savevalueName)

; X$TiempoEspera or X$(TiempoEspera)

IF (X$TiempoEspera > 10)
...

For example, incrementing the value of a savevalue can be done as follows:

SAVEVALUE TiempoEspera, X$TiempoEspera + 1

Or through the method:

SAVEVALUE.inc TiempoEspera

In particular, since these variables are used by more than one entity, they have an associated COMMAND for creation and initialization called INITIAL.

Its syntax is simple:

INITIAL TiempoEspera,10

Remember that INITIAL is a command. It is used at the beginning of the program for initialization.

2. ASSIGN (entity local variables):
Local variables belong to a specific entity. Each entity can have its own value for the same variable, which makes them useful for managing entity-specific data.

Syntax:
ASSIGN variable, value

Example:

ASSIGN Identificador, 1

This block assigns the value 1 to the variable "Identificador" of the current entity invoking ASSIGN.

To retrieve the value of a local variable using its SNA format:

P$assignName or P$(assignName)

; P$Identificador or P$(Identificador)
if (P$Identificador > 5) ...

P$Identificador is the form that allows obtaining the value of a local variable of the entity.

Key differences between SAVEVALUE and ASSIGN:

• Scope: SAVEVALUE variables are global, while ASSIGN variables are entity-local.
• Persistence: SAVEVALUE variables retain their value at all times, even if no entity uses them. ASSIGN variables only exist while the entity is active.
• Usage: Use SAVEVALUE for shared data, and ASSIGN for entity-specific data.

Combined example:

In this example, we combine SAVEVALUE and ASSIGN to calculate the average waiting time at a service counter. If the time is defined by an ADVANCE 15,10, it means it will range between 15 and 25 time units. This should gradually approximate the average to 20.

INITIAL TiempoTotal, 0
INITIAL NumEntidades, 0
Facility {NAME:Ventanilla,X:354,Y:204}
Graphic {NAME:Text1,Type:TEXT,X:358,Y:321,Text:"Average"}
Position {NAME:Salida,X:577,Y:201}
START 50
;---------------------------------

Generate 20,0 {NAME:GEN1,X:100,Y:207}
ADVANCE 10 {to:Ventanilla}
SEIZE Ventanilla
ASSIGN TiempoInicio, AC1$
ADVANCE 15,10
ASSIGN TiempoFinal, AC1$
RELEASE Ventanilla
ADVANCE 15 {to:Salida}
ASSIGN TiempoEntidad, (P$TiempoFinal - P$TiempoInicio)
SAVEVALUE NumEntidades, X$NumEntidades + 1
SAVEVALUE TiempoTotal, X$TiempoTotal + P$TiempoEntidad
SAVEVALUE promedio, round(X$TiempoTotal / X$NumEntidades,3)
MOVE {NAME:Text1,text:"Average: X$promedio"}
TERMINATE 1

In this code:
- Each entity calculates its waiting time at the service counter.
- Times are accumulated in the global variable "TiempoTotal".
- The number of served entities is counted in "NumEntidades".
- At the end of the simulation, you can compute the average waiting time:
AverageTime = X$TiempoTotal / X$NumEntidades

In this way, SAVEVALUE and ASSIGN work together to provide efficient data handling within the simulation.

Later on, we will see how both BLOCKS support much more than just numerical variables.

In this example, we simulate a system where each entity randomly chooses one of three service counters to be served. Each counter has its own queue, and the flow is unevenly distributed depending on the service time.

The decision logic is resolved exclusively through structured procedures.

FACILITY {NAME:VENTANILLA1,X:320,Y:450}
FACILITY {NAME:VENTANILLA2,X:320,Y:300}
FACILITY {NAME:VENTANILLA3,X:320,Y:150}

POSITION {NAME:POS1,X:160,Y:300}
POSITION {NAME:POS2,X:497,Y:300}

START 30 ; Executes until 30 entities are completed

GENERATE 10,0 {NAME:GEN1,X:60,Y:300}
ADVANCE 20,0 {TO:POS1}
ASSIGN ALEATORIO,RANDOM
IF (P$ALEATORIO < 0.3)
    CALL CAMINO1
    ELSE
       IF (P$ALEATORIO < 0.6)
          CALL CAMINO2
          ELSE
          CALL CAMINO3
       ENDIF
ENDIF
ADVANCE 20 {TO:POS2}
TERMINATE 1

;---------------------------------------------

PROCEDURE CAMINO1
ADVANCE 20  {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE 25,10
RELEASE VENTANILLA1
ENDPROCEDURE

PROCEDURE CAMINO2
ADVANCE 20 {TO:VENTANILLA2}
SEIZE VENTANILLA2
ADVANCE 10,2
RELEASE VENTANILLA2
ENDPROCEDURE

PROCEDURE CAMINO3
ADVANCE 20 {TO:VENTANILLA3}
SEIZE VENTANILLA3
ADVANCE 10,2
RELEASE VENTANILLA3
ENDPROCEDURE

Compared to the previous example, only a few new BLOCKS are introduced:

ASSIGN ALEATORIO,RANDOM

This block creates a local variable in the entity (called ALEATORIO) and assigns it a random number between 0 and 1, using the RANDOM function.

These local variables are also called parameters and are accessed using the SNA notation:

P$ALEATORIO

• "P" because it is a parameter,
• "$" is the standard separator,
• "ALEATORIO" is its name.

IF (P$ALEATORIO < 0.3)

This is an "IF" control-structure block.

As can be seen, it is an "if" just like in any other language: a variable is compared against a value.

This other control-structure block also needs little introduction. It calls a PROCEDURE:

CALL CAMINO1

Finally:

PROCEDURE CAMINO1
...
ENDPROCEDURE 100 ; would produce an ASSIGN in the calling entity named CAMINO1 with value 100

Which also requires little explanation. PROCEDURE blocks encapsulate a set of actions.

ENDPROCEDURE may include a value in parameter A, which is returned in the same way as if an ASSIGN instruction had been generated. It can be retrieved as P$ProcedureName (e.g., P$CAMINO1). In this case, it is not used.

One of the classic resources is STORAGE.

FACILITY represents things such as a service counter, a machine, or an operator: it can serve only one entity at a time and according to its capacity (with CAPACITY:3, the FACILITY would serve 3 entities). STORAGE, on the other hand, represents something like a warehouse, a tank, or a network that can be used partially.

What is a STORAGE? A STORAGE is a type of resource that is not seized per entity, but by quantity. It is used when an entity must reserve part of a resource without occupying it entirely. For example, a truck can drop 10 boxes into a warehouse that can hold up to 40.

How does it work? It is defined with a total capacity, for example 40 units.

STORAGE {NAME:warehouse1, X:300, Y:200, capacity:40}

Entities use the ENTER block to occupy a certain amount, and LEAVE to give it back.

ENTER warehouse1,5
LEAVE warehouse1

If an entity tries to occupy more than what is available, it will automatically wait in an internal queue until the STORAGE has enough free capacity. You don’t need to program anything additional to manage that wait.

In the example: a box warehouse (STORAGE) is defined with 40 capacity units. Trucks arrive every 10 time units and deposit between 1 and 16 boxes. After some time, they leave, freeing the occupied space. You will see on-screen text how many boxes are stored at any moment.

In addition to calculating it via additions and subtractions, you can also do it directly by querying the corresponding SNA for STORAGE occupancy:

R$(warehouse1,OCCUPIED)  ; Units currently occupied
R$(warehouse1,LEFT)      ; Units available

---

Example:

/* Warehouses: STORAGE
Capacity management and storage usage.
*/

INITIAL capacity,40 ; defines a savevalue named capacity with value 40

STORAGE {NAME:warehouse1, X:300, Y:200, capacity:X$capacity}

POSITION {NAME:EXIT,  X:500, Y:200}

; Text showing current contents
GRAPHIC {NAME:text1, Type:TEXT, X:320, Y:240, Text:"Current boxes: 0"}

START 100

; Trucks arriving every 10 time units
GENERATE 10,0 {NAME:Truck, X:100, Y:200}

ADVANCE 15 {TO:warehouse1}
ENTER warehouse1,(random*15)+1 ; Occupies between 1 and 16 storage units
savevalue usage,X$capacity - R$(warehouse1,LEFT)
MOVE {name:text1,text:"Current boxes X$usage : R$(warehouse1,OCCUPIED)"}
ADVANCE 40,10
LEAVE warehouse1 ; Releases the occupied units
savevalue usage,X$capacity - R$(warehouse1,LEFT)
MOVE {name:text1,text:"Current boxes X$usage : R$(warehouse1,OCCUPIED)"}
ADVANCE 15 {TO:EXIT}
TERMINATE 1

The event queue:

At the heart of any discrete-event simulation lies the event queue, a structure that defines how and when entity actions are executed within the model. This discrete-event approach is what distinguishes it from other programming languages.

You can think of it as if each entity had its own program, as you would do in C or Python, but jumping between entities according to the temporal order dictated by this queue. If we simulate 10 entities, there are 10 programs running “at the same time” (or almost).

What is the event queue?

It is a time-ordered list of scheduled actions, each associated with a simulated time instant (AC1). The queue ensures actions are executed in the correct order according to when they must occur.

The most important thing: it is ordered by time. For example:

Time 15 - Serve entity 14 at step 88
Time 45 - Serve entity 22 at step 16
Time 77 - Serve entity 16 at step 25

Example: Evolution of the event queue

Let’s consider the classic case of a bank where customers enter through the door and are served at a counter. Entities are created with GENERATE and spend time being served via ADVANCE.

Imagine we are at instant T = 5, with the following queue:

T 5: Entity 5: Waiting in the counter queue
T 7: GENERATE: Create an item, a customer who will enter through the door
T 8: Entity 9: Heading to the counter queue
T 16: Entity 3: Heading to the counter queue

Right now, we have one entity—#5—which is next in the queue. We will remove that element from the queue to process it. Now we know that time is 5! Not because time has “passed”, but because our next task is scheduled for T=5.

Let’s assume, for example, that Entity 5 is at the “step” (position in its program) that indicates an ADVANCE 10 to be served.

In that case, the solution is to schedule itself in the queue at T=15 (5+10) and pause its execution while it is being served.

Now the event queue will look like this:

T 7: GENERATE: Create an item
T 8: Entity 9: Heading to the counter queue
T 15: Entity 5: Go to the exit
T 16: Entity 3: Heading to the counter queue

We are now at the next event. Time must be updated again: “AC1” now takes the value 7. As we said, it’s not that time has passed; it’s that the event queue makes time jump because there is nothing to do until T=7.

We remove the element from the queue and find a GENERATE 20,5. Therefore, we must compute what time is defined by 20,5; something between 20 and 25. Suppose the result is 22. That is, another person will enter in 22 time units. The queue now takes this form after the GENERATE advances and performs 2 tasks:

1.- The GENERATE itself advances 20 (parameter A) (7+20=27).
2.- It creates a new entity (#10) so it can carry out its tasks 22 time units later (7+22=29).

T 8: Entity 9: Heading to the counter queue
T 15: Entity 5: Go to the exit
T 16: Entity 3: Heading to the counter queue
T 27: GENERATE: Create an item
T 29: Entity 10: Heading to the counter queue

Now it would be time to advance system time again and serve the next element: Entity 9.

This event queue will remain alive until one of the program-ending conditions is met.

In GPSS-Plus, this event queue also has additional characteristics to support tasks in the graphical world and to add “ON_*” type events.

In the GPSS-Plus event queue, we have 5 types of elements:

• GENERATE – Introduce new entities into the system.
• Entities – The ones that move through the model and consume resources.
• Dead times – Visible pauses that allow step-by-step simulation or speed adjustment.
• Virtual entities – Not visible; execute events such as ON_ENTER, ON_TIMER, etc.
• System TIMER – Like a GENERATE, but it produces virtual entities at fixed intervals.

Resource queues:

Other existing queues are those belonging to resources; each resource can have one or two depending on the case.

These lists are ordered by arrival order, and their management depends exclusively on the resource itself.

For example, a FACILITY has two lists: the list of occupying entities and the list of entities waiting in queue.

When an entity attempts to SEIZE, if the resource is busy, it moves to the waiting list. If there are no entities in the resource, it will seize it by entering the occupants list.

When it performs RELEASE, it leaves that list and forces the resource to look for an entity in its pending queue to enter. If there is one, it will move it into the occupants list and schedule its entry into the event queue at that same instant, so that entity will take control of the engine as soon as the departing one stops its activity.

Conclusion

The event queue not only defines the order and time at which actions occur, but also acts as the core of the system. It ensures blocks execute correctly and that the simulation is consistent and accurate. Understanding this concept is essential to design efficient models and fully leverage GPSS-Plus capabilities.

In GPSS-Plus it is easy to view this queue: just open the menu window and click the “Event Queue” button.

Imagine a group of people waiting for an automatic door to open. They are not queuing and they are not occupying anything; they are simply waiting for something to happen.

This is exactly what the CONDITIONS resource allows: stopping entities until a logical condition is met.

Something similar existed in classic GPSS with the ASSEMBLE block for this purpose. In GPSS-Plus, this behavior is replaced by a more general and flexible resource.

The CONDITIONS resource allows holding entities until a condition is satisfied. This condition is defined as an expression that is evaluated each time an entity attempts to pass.

CONDITIONS {NAME:Conditions1,X:208,Y:317,expression:(X$counter>=5)}

CONDITIONS has additional options that will be covered later.

Its associated block, WAITUNTIL, is responsible for validating the condition for the current entity — in this case, whether the counter is greater than or equal to 5.

When the 5th entity arrives, the condition is satisfied and it continues without being held. At that point, the remaining entities are released by checking all retained ones using another associated block: WAITCHECK.

It is interesting to observe that all entities leave the CONDITIONS resource together in the first segment. In the second one, the randomness of ADVANCE 20,40 causes them to spread apart.

We also begin using the ENDGENERATE block, which is more consistent with the structured approach than TERMINATE. They are equivalent, but syntactically it is more appropriate to structure the block using GENERATE/ENDGENERATE. This makes it easier to identify which block was generated, especially when multiple GENERATE blocks exist in the program.

---

Example:

/* Synchronization: CONDITIONS / WAITUNTIL
Entities wait as a group and advance together.
*/

POSITION {NAME:POS1,X:208,Y:222}
POSITION {NAME:POS2,X:452,Y:215}
POSITION {NAME:POS3,X:752,Y:215}

CONDITIONS {NAME:Conditions1,X:208,Y:317,expression:(X$counter>=5)} ; Holding resource
INITIAL counter,0

START 100
;*****************************************************

GENERATE 10,2 {NAME:GEN1,X:86,Y:228,ERADIO:10,ECOLOR:#FF9900}

ADVANCE 16,0 {TO:POS1}
SAVEVALUE counter, X$counter + 1
WAITUNTIL Conditions1
WAITCHECK Conditions1
SAVEVALUE counter, 0
ADVANCE 20,0 {TO:POS2} ; ALL entities advance together to the second position
ADVANCE 20,40 {TO:POS3} ; Advance to the third position with random time between 20 and 40, now SPLITTING

ENDGENERATE 1 ; Ends the life of the entity — IDENTICAL to TERMINATE 1

Now that you already know how to use procedures and simple conditional decisions (IF), let’s look at a case where an entity chooses between multiple possible routes.

For this, we use the SWITCH structure, very similar to a “decision menu”.

What does this example do?

• Generates an entity every 10 time units.
• Assigns it a random number (P$RANDOM_VALUE).
• Depending on that number, chooses one of four routes (CALL PATH1 … CALL PATH4).
• In two of those routes (PATH3 and PATH4), a visual block is activated showing “Lock” or “Unlock”, and resources are locked or unlocked. If an entity enters path 3, the use of resources 1, 2, and 3 is locked, although entities already inside them are allowed to finish their work. When an entity takes path 4, those resources become available again immediately. Locking does not expel entities already using the resources, but prevents new ones from seizing them until they are unlocked.

We also define a purely visual aspect: “flow”.
By enabling it in ADVANCE, we will see a route line that initially runs vertically or horizontally depending on the LAYOUT. It may pass through a VIA or VIA2, and can converge or diverge according to MERGE or DECISION.

---

Example:

/* Blocks: SWITCH and LOCK/UNLOCK
Conditional routing and management of lockable resources.
*/

FACILITY {NAME:COUNTER1,X:320,Y:450,CAPACITY:3}
FACILITY {NAME:COUNTER2,X:320,Y:300,CAPACITY:3}
FACILITY {NAME:COUNTER3,X:320,Y:150}
FACILITY {NAME:COUNTER4,X:320,Y:50}

POSITION {NAME:POS1,X:158,Y:301}
POSITION {NAME:POS2,X:497,Y:300}
POSITION {NAME:POS3,X:627,Y:300,TYPE:TERMINATE,TITLE:END}

GRAPHIC {NAME:Text1,Type:TEXT,X:320,Y:104,Text:"Unlock"}

START 30

GENERATE 10,0 {NAME:GEN1,X:57,Y:300}
ADVANCE 20,0 {TO:POS1,flow:1}

ASSIGN RANDOM_VALUE,(RANDOM)

SWITCH P$RANDOM_VALUE
    CASE <,0.4
        CALL PATH1
    ENDCASE

    CASE <,0.8
        CALL PATH2
    ENDCASE

    CASE <,0.92
        CALL PATH3
        MOVE {NAME:Text1,text:"Lock"}
        LOCK COUNTER1
        LOCK COUNTER2
        LOCK COUNTER3
    ENDCASE

    DEFAULT
        CALL PATH4
        MOVE {NAME:Text1,text:"Unlock"}
        UNLOCK COUNTER1
        UNLOCK COUNTER2
        UNLOCK COUNTER3
    ENDCASE
ENDSWITCH

ADVANCE 20,10 {TO:POS2,flow:1,MERGE:"exit"}
ADVANCE 20,0 {TO:POS3,flow:1}

ENDGENERATE 1
;****************************************

PROCEDURE PATH1
    ADVANCE 20  {TO:COUNTER1,flow:1,DECISION:"start"}
    SEIZE COUNTER1
    ADVANCE 45,10
    RELEASE COUNTER1
ENDPROCEDURE

PROCEDURE PATH2
    ADVANCE 20 {TO:COUNTER2,flow:1,DECISION:"start"}
    SEIZE COUNTER2
    ADVANCE 40,10
    RELEASE COUNTER2
ENDPROCEDURE

PROCEDURE PATH3
    ADVANCE 20 {TO:COUNTER3,flow:1,DECISION:"start"}
    SEIZE COUNTER3
    ADVANCE 40,20
    RELEASE COUNTER3
ENDPROCEDURE

PROCEDURE PATH4
    ADVANCE 20 {TO:COUNTER4,flow:1,DECISION:"start"}
    SEIZE COUNTER4
    ADVANCE 10,2
    RELEASE COUNTER4
ENDPROCEDURE

;***************************************************************

Now that you know the fundamentals of GPSS-Plus, let’s see how they all come together in a unified example.

We’re going to look at a piece of code that is quite a bit longer than what we’ve seen so far—almost 100 lines.

This model represents a system with different vehicle types that move through a work area for several cycles. Each one decides its route, performs tasks, and finishes after completing a number of cycles, entering the utility-vehicle or truck parking area as appropriate—occupying either a FACILITY or a STORAGE depending on the truck size.

This code introduces several new ideas.

The first thing we notice is a top-level structure with two GENERATE blocks and several PROCEDUREs.

The generates are visually separated so each one has its own activity, and they mark the entities born from them in a differentiated way.

GENERATE ... NAME:G_UTILITY_VEHICLES ; generates utility vehicles
   ....
   ASSIGN ...
   ....
   CALL PROC.MAIN
ENDGENERATE 1

And then we have the set of PROCEDUREs:

Process procedures:

PROC.MAIN              ; Main process
PROC.UTILITY_VEHICLES
PROC.TRUCKS

Decision procedures:

DECIDE.ROUTE
DECIDE.LOOP_OR_END

PROC.MAIN:

All the main logic is concentrated in the PROC.MAIN process, which is typically built around a WHILE loop that keeps entities inside until they meet the condition to finish all their tasks.

WHILE ("P$state"!="EXIT")
    ...
    ...
    ASSIGN state, ????
ENDWHILE

Inside it, the decision over the main routes each entity can take is typically a SWITCH with options or several nested IFs. It is a good practice to place these decisions into PROCEDUREs named DECIDE.*, so they are easy to recognize and you know in advance they usually return, directly, the name of the PROCEDURE to be invoked by the entity:

ENDPROCEDURE "P$VALUE" ; Will return 'PROC.UTILITY_VEHICLES' or 'PROC.TRUCKS'

That is: CALL DECIDE.AAA will return in P$AAA (the part before the dot is omitted) the value 'PROC.BBB', which can be used directly as CALL P$AAA.

CALL DECIDE.ROUTE           ; Executes decision logic
CALL "P$(ROUTE)"            ; Calls the procedure returned by the decision

Very similar to the decision to exit or continue looping through the cycle.

Other new elements are:

ADVANCE0 {TO:POS_ENTRY,flow:1,layout:H}

Here it is ADVANCE0 instead of ADVANCE because we only want a visual jump, without the entity consuming time by entering and leaving the event queue.

The last novelty is the use of another resource with grouping and statistics utility: QUEUER.

It has unlimited capacity and makes it easy to know how many—and which—entities are in a given zone.

QUEUE IN_PARKING  ; enter
...
...
DEPART IN_PARKING ; leave

In summary, the example shows:

• How to use multiple GENERATE blocks with differentiated logic (trucks and utility vehicles).
• How entities can dynamically decide routes (SWITCH, CALL, PROCEDURE).
• How an internal per-entity loop (WHILE) is used to simulate iteration.
• How to visualize flow using positions, subtitles, and styles.
• How to combine different resources (FACILITY, STORAGE, QUEUE).
• How to work with dynamic procedure names (P$(ROUTE)).



---

Example:

QUEUER {NAME:IN_PARKING,X:413,Y:497}

FACILITY {NAME:UTILITY_VEHICLES, CAPACITY:4, X:413, Y:390}
STORAGE {NAME:TRUCKS, CAPACITY:5, X:412, Y:120}

POSITION {NAME:POS_ENTRY,X:240,Y:270}
POSITION {NAME:POS_EXIT,X:557,Y:316,TYPE:DECISION,TITLE:"END?"}
POSITION {NAME:POS_LOOP,X:225,Y:549}
POSITION {NAME:END,X:730,Y:324,TYPE:TERMINATE}

START 20

;************************************************************************
GENERATE 20,10,0,10 {NAME:G_UTILITY_VEHICLES,X:80,Y:363,ESUBTITLE:"P$cycles/3"}
ASSIGN VEHICLE_TYPE,1
MOD {RADIO:5,COLOR:#000066}
CALL PROC.MAIN
ENDGENERATE 1 ; ALIAS OF TERMINATE
;----------------------------
GENERATE 20,10,0,10 {NAME:G_TRUCKS,X:80,Y:199,ESUBTITLE:"P$cycles/3"}

ASSIGN VEHICLE_TYPE,FLOOR(RANDOM * 2 + 2)
MOD {RADIO:10,COLOR:#006600}
CALL PROC.MAIN
ENDGENERATE 1  ; ALIAS OF TERMINATE
;************************************************************************

PROCEDURE PROC.MAIN

ASSIGN cycles,1

ADVANCE0 {TO:POS_ENTRY,flow:1,layout:H}
ASSIGN state,"loop"

WHILE ("P$state"!="EXIT")

	QUEUE IN_PARKING

	CALL DECIDE.ROUTE ; return assign:ROUTE
    CALL "P$(ROUTE)"
    ADVANCE 20,18 {TO:POS_EXIT,flow:1,MERGE:"exit"}

	DEPART IN_PARKING

    CALL DECIDE.LOOP_OR_END
    ASSIGN state,"P$(LOOP_OR_END)"
ENDWHILE

ADVANCE 20,0 {TO:END,flow:1}

ENDPROCEDURE

;*****************************************************

PROCEDURE DECIDE.ROUTE
    ASSIGN VALUE,""
    SWITCH P$VEHICLE_TYPE
    CASE <=,1
	    ASSIGN VALUE,"PROC.UTILITY_VEHICLES"
    ENDCASE
    DEFAULT
    	ASSIGN VALUE,"PROC.TRUCKS"
    ENDCASE
    ENDSWITCH

ENDPROCEDURE "P$VALUE"
;---------------------------------------------
PROCEDURE DECIDE.LOOP_OR_END
    ASSIGN VALUE,"loop"
    ASSIGN cycles,P$cycles + 1
	IF (P$cycles > 3)
    	ASSIGN VALUE,"EXIT"
        MOD {SUBTITLE:"-EXIT-"}
    ELSE
        ADVANCE 30 {TO:POS_ENTRY,flow:1,VIA:POS_LOOP,layout:V}
	ENDIF
ENDPROCEDURE "P$VALUE"

;---------------------------------------------
PROCEDURE PROC.UTILITY_VEHICLES
    ADVANCE 20 {TO:UTILITY_VEHICLES,flow:1,DECISION:"resource"}
    SEIZE UTILITY_VEHICLES
    ADVANCE 55,40
    RELEASE UTILITY_VEHICLES
ENDPROCEDURE

PROCEDURE PROC.TRUCKS
    ADVANCE 20 {TO:TRUCKS,flow:1,DECISION:"resource"}
    ENTER TRUCKS, P$VEHICLE_TYPE
    ADVANCE 40,20
    LEAVE TRUCKS
ENDPROCEDURE
;----------------------------------

By now we have more than enough clarity on what an entity is: a little dot moving on the screen. We know it is born from a GENERATE, it traverses blocks, advances through positions, and can enter resources.

So what is a virtual entity? An entity that does not move on the screen.

That difference sounds simple, but it is essentially that—while carrying many implications. Imagine an invisible dot that does not occupy space but still executes instructions.

Let’s define them formally:

• Virtual entities are not born from a GENERATE. Instead, they are created by COMMANDS such as TIMER, PRE_RUN, TRIGGER (ON_ENTER, ON_QUEUE, ON_*...), or by the block TIMEOUT.
• Their identifier (D$N) is not a positive sequential number (1, 2, ... n) but the opposite: (-1, -2, ... -n).
• Their TERMINATE does not subtract terminations. In fact, you will see TERMINATE_VE, which ends only virtual entities.
• They have no direct visual representation, but they can interact with the graphical layer just like any other entity.

What are they for?

They have countless uses.

Even if it may not look like it, they are the reason GPSS-Plus does not rely on secondary languages to program complementary elements such as Python or Java.

You program them in GPSS-Plus like any other subprogram. They take care of all accessory tasks around entity life cycles. For example, if you want a clock, it makes little sense for it to depend on the birth or movement of entities that already have plenty to worry about while entering and leaving resources.
Instead, a TIMER that automatically fires every N instants can do those tasks.
If you want control over multiple resources and the state of their queues, you can have a virtual entity acting as a controller each time an entity enters a queue.

Virtual entities work behind the scenes. You don’t see them move, but without them, many processes simply would not happen.

In the example:

A normal entity, number 1 (D$N==1), creates a virtual entity that will be born in 30 time units to execute a procedure:

TIMEOUT updateCounter,30

It does not traverse flow positions nor use resources. It only appears after being requested by an entity and, from then on, the virtual entity schedules a new virtual entity every 3 time units.
Its only job: counting.
The first calls the second, which calls the third... all through the TIMEOUT block, which only needs the name of the procedure to be executed by the virtual entity and the time at which it will occur.
You can see the text changing even though there are no visible entities updating it. That is because a virtual entity does it, working in the background like a small autonomous process.

This example shows how a VE can act as a recurring process without any human intervention or physical entity. From now on, you will see that many system decisions, alarms, or statistics will be managed by this type of invisible entity.

---

Example:

/* Virtual entities:
Invisible processes operating in the background.
The first entity will create a VE after a delay of 30 time units.
That VE will create the next one every 3 time units.
Only entities are visible, not VEs.
*/

POSITION {NAME:POS1,X:321,Y:332}
POSITION {NAME:POS2,X:517,Y:326}
GRAPHIC {NAME:Text1,Type:TEXT,X:366,Y:454,Text:"Counter: 0"}

INITIAL counter,0

START 200

;*****************************************************
GENERATE 20,0 {NAME:GEN1,X:101,Y:332}
ADVANCE 10 {TO:POS1}
; Launch a virtual entity that will update the counter
IF (D$N==1)
	TIMEOUT updateCounter,30
ENDIF
ADVANCE 10 {TO:POS2}

ENDGENERATE 1

;*****************************************************
PROCEDURE updateCounter
    SAVEVALUE counter, X$counter + 1
    MOVE {NAME:Text1, TEXT:"I am Virtual Entity D$N. Counter: X$counter"}
    TIMEOUT updateCounter, 3
    TERMINATE_VE
ENDPROCEDURE

We have already seen what a virtual entity is: an entity that does not move on the screen but still executes instructions and participates in the simulation engine.

Now we will see how these virtual entities are created and who can create them.

Who creates a VE?

Virtual entities are not born from a GENERATE block like normal entities. Instead, they can be created by four different mechanisms:

• The system, using:
  • PRE_RUN – at the beginning of the simulation, once.
  • TIMER – at fixed intervals defined by INTERVAL.
• An entity, using:
  • TIMEOUT – schedules the execution of a VE X time units in the future.
• A resource, using ON_* events such as:
  • ON_SEIZE, ON_RELEASE, ON_LEAVE, etc.

What do they all have in common?

All virtual entities execute a PROCEDURE, which may be specified as a TRIGGER or as a procedure name. That PROCEDURE is the “code” executed by the VE. It must end with TERMINATE or TERMINATE_VE, just like any normal entity.

About parameters

When using NEW, TIMEOUT, or CALL, we can pass additional parameters. These will be available inside the procedure as P$PARAM_A, P$PARAM_B, etc., just as we have already seen with CALL.

This allows a VE to “know” who invoked it or why.

In the example:

• PRE_RUN creates an entity at the start (magenta color).
• TIMER1 creates one every 53 time units (blue color).
• TIMEOUT fires just before entering the resource and leaves a message.
• ON_RELEASE fires when FACILITY1 is released.

Each time one of these virtual entities is created, a message appears on screen showing its identifier and what it is doing.

---

Example:

/* Creation of virtual entities */

SYSTEM {TYPE:ON_TIMER, TRIGGER:TIMER1, INTERVAL:53}
SYSTEM {TYPE:PRE_RUN, TRIGGER:PRE_RUN}

POSITION {NAME:POS1,X:311,Y:497}
POSITION {NAME:POS2,X:571,Y:147,TYPE:TERMINATE,TITLE:END}

FACILITY {NAME:Facility1,X:573,Y:483,ON_RELEASE:on_RELEASE_Facility1}

GRAPHIC {NAME:Text_Pre_run,Type:TEXT,X:253,Y:196}
GRAPHIC {NAME:Text_TIMER1,Type:TEXT,X:253,Y:158}
GRAPHIC {NAME:Text_Timeout1,Type:TEXT,X:254,Y:252}
GRAPHIC {NAME:Text_on_release,Type:TEXT,X:575,Y:544}

START 40

GENERATE 30,0 {NAME:GEN1,X:110,Y:510,ECOLOR:#FF3333,ERADIO:8}
	IF ("P$PARAM_A"=="PRE_RUN")
    	MOD {COLOR:magenta,SUBTITLE:pre_run}
    ENDIF
	IF ("P$PARAM_A"=="TIMER1")
    	MOD {COLOR:blue,SUBTITLE:timer1}
    ENDIF
    ADVANCE 30,2 {TO:POS1,flow:1}
    ADVANCE 30,2 {TO:Facility1,flow:1}
    TIMEOUT Timeout1,0,D$N ; pass the entity number as a parameter
    SEIZE Facility1
    ADVANCE 30,30
    RELEASE Facility1
    ADVANCE 30,2 {TO:POS2,flow:1}
ENDGENERATE 1

;******************************************
PROCEDURE PRE_RUN
	MOVE {NAME:Text_Pre_run,TEXT:"I am [D$N] PRE_RUN.\nI create a new entity."}
    NEW GEN1,0,"pre_run"
    TERMINATE_VE
ENDPROCEDURE
;---------------------------------
PROCEDURE TIMER1
	MOVE {NAME:Text_TIMER1,TEXT:"I am [D$N] TIMER1.\nI create a new entity."}
    NEW GEN1,0,"timer1" ; Generate, time, PARAM_A, PARAM_B...
	TERMINATE_VE
ENDPROCEDURE
;---------------------------------
PROCEDURE Timeout1
	MOVE {NAME:Text_Timeout1,TEXT:"I am [D$N] Timeout1.\nEntity [P$PARAM_A] is about to enter"}
	TERMINATE_VE
ENDPROCEDURE

PROCEDURE on_RELEASE_Facility1
	MOVE {NAME:Text_on_release,TEXT:"I am [D$N] on_RELEASE.\nEntity [P$ENTITYNUMBER] leaves Facility1"}
	TERMINATE_VE
ENDPROCEDURE

;******************************************

A special type of virtual entity is one that does not die at the end of its procedure.

These VEs that remain active throughout the entire simulation (or part of it) are called agents.

• They are like background processes that never terminate.
• They are usually launched from PRE_RUN via a TIMEOUT.
• They store their entity number (D$N) in a SAVEVALUE, so they can be interacted with or their state can be queried.

Later on, we will see that these agents handle control tasks, monitoring, or coordination between resources.

In short, an agent is a VE that does not terminate and stays alive in a loop. This allows it to remain attentive—waiting or watching the environment.

---

Example:

/* Agents: Permanent Virtual Entities
Resource monitoring with an infinite loop.
*/

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

POSITION {NAME:POS1,X:311,Y:497}
POSITION {NAME:POS2,X:571,Y:147,TYPE:TERMINATE,TITLE:END}

FACILITY {NAME:Facility1,X:573,Y:483}

GRAPHIC {NAME:Text_agent,Type:TEXT,X:229,Y:305}

START 40

GENERATE 30,0 {NAME:GEN1,X:110,Y:510,ECOLOR:#FF3333,ERADIO:8}
    ADVANCE 30,2 {TO:POS1,flow:1}
    ADVANCE 30,2 {TO:Facility1,flow:1}
    SEIZE Facility1
    ADVANCE 30,30
    RELEASE Facility1
    ADVANCE 30,2 {TO:POS2,flow:1}
ENDGENERATE 1

;******************************************
PROCEDURE PRE_RUN
    TIMEOUT AGENT.INIT,0
    TERMINATE_VE
ENDPROCEDURE
;---------------------------------
PROCEDURE AGENT.INIT
	SAVEVALUE agentId,D$N
	WHILE (1==1)
 	   MOVE {NAME:Text_agent,TEXT:"I am agent [D$N].\nTime AC1$\nEntities in Facility1: R$(Facility1,IN)\nEntities in queue: R$(Facility1,QUEUE)"}
  	  ADVANCE 10
    ENDWHILE
	TERMINATE_VE
ENDPROCEDURE

In addition to normal entities and agents, the model supports a third type of entity: component entities.
A component entity is an entity that exists to execute a function on behalf of another entity. It is not a physical object nor an external resource, but an active part of its behavior—something the entity “does” continuously or in parallel.

This concept makes it possible to model very natural situations:
a diver who breathes and consumes oxygen while moving forward, a vehicle whose wheels wear down while driving, or a person who reads a piece of news and changes their decision while waiting in a bus queue.

Later on, we will see how they are created and how they work together with the main entity. For now, it is enough to understand that they allow an entity to be more than a single sequential thread, becoming instead a small system made up of multiple entities collaborating with each other.

GPSS-Plus DSL philosophy

The GPSS-Plus DSL is not intended as a general-purpose programming language, nor as an alternative notation for drawing blocks. It is designed as the operational language of the simulation engine.

When working with the DSL, the user does not “program”: they define behaviors, resources, and events that the engine executes over time. They model.

To understand it properly, it is useful to think of the DSL as a set of tools organized into four levels.

---

1. Visible or physical entities: behavior of the “dots”

The first level of the DSL is aimed at defining what the entities that move through the model do.

These entities:

• are born (GENERATE),
• advance in time (ADVANCE),
• interact with resources (SEIZE, ENTER, REST…),
• make decisions (IF, SWITCH),
• and eventually die (TERMINATE).

All their behavior is described step by step, but that step-by-step is not real sequential execution: it is execution over an event queue.

At this level, the DSL provides:

• flow blocks,
• time control,
• conditional structures and loops,
• procedure calls.

This is the most visible level of the model and the one closest to user intuition.

---

2. Virtual entities (VE): parallel behavior

Not all behavior belongs to a visible “dot”.

GPSS-Plus introduces virtual entities (VE) to model logic that:

• has no graphical representation,
• does not traverse the circuit,
• but lives inside the simulation engine.

VEs make it possible to:

• react to events (ON_SEIZE, ON_RELEASE, SIGNAL),
• execute periodic logic (TIMEOUT),
• act as agents, controllers, or even components,
• coordinate other entities without blocking them.

From the DSL point of view, a VE is a complete entity, with its own life cycle, but oriented toward system control or entity coordination.

---

3. Resources: the environment entities interact with

The third level of the DSL defines the model environment.

Resources represent what entities use, occupy, wait for, or query. They can be:

• physical: FACILITY, STORAGE, RESTROOM, STOCK
• logical: QUEUER, CONDITIONS, FSM
• external: BRIDGER, FILE, TABLE, PLOTTER

Each resource follows the same conceptual pattern:

1. it is defined by a COMMAND,
2. it is used via paired BLOCKS,
3. it is observed through SNAs.

The DSL does not hide resource state: everything can be read, queried, and used in decisions.

---

4. The engine: time, events, and system

Beneath entities and resources lies a fourth, less visible but fundamental level: the simulation engine.

The DSL allows explicit interaction with it by:

• controlling simulated time,
• scheduling future events (TIMEOUT),
• configuring the system (SYSTEM),
• accessing the event queue and internal state via SNAs.

This enables models where behavior is not just “flow”, but reaction, synchronization, and planning.

---

Example:

/* Season 3: DSL
Example of a simple model using the GPSS-Plus DSL.
*/

FACILITY {NAME:COUNTER, X:300, Y:300} ; Define the service counter in space.
POSITION {NAME:EXIT, X:500, Y:300}    ; Define the exit in space.

START 100                               ; Run until 100 entities have been served
;------------------------------------------------------------------------------------
GENERATE 60,10 {NAME:GEN1, X:100, Y:300} ; Position the entity generator.
    ADVANCE 10 {TO:COUNTER}               ; Move to the counter.
    SEIZE COUNTER                         ; Seize the COUNTER resource.
    ADVANCE 60,30                         ; Service time: 60 to 90 seconds.
    RELEASE COUNTER                       ; Release the resource.
    ADVANCE 10 {TO:EXIT}                  ; Move to the exit.
TERMINATE 1                              ; The entity finishes.

As far as the language is concerned, the evolution from classic GPSS to GPSS-Plus has two major turning points:

• The introduction of STACKS, which enable loops, nested calls, and complex control structures.
• The expansion of the SAVEVALUE and ASSIGN variable system, which now stores not only numbers but also strings, arrays, and objects, and allows functions to be executed on them.

This second advance makes older elements like MATRIX obsolete and allows GPSS-Plus to include native functions found in any modern language such as push, concat, merge, or split, all within the simulator’s own logic and without resorting to external programming. What used to be solved with rigid tools can now be done in an expressive, structured, and maintainable way. GPSS-Plus stops being a card-based language with numbers and becomes a full-purpose DSL, oriented to event flows and structured data manipulation.

We already know GPSS-Plus lets you declare variables with two scope levels:

• ASSIGN: entity-local variable.
• SAVEVALUE: global variable, shared among entities.

Their behavior is identical except for visibility. In both cases, variables can hold different data types:

• Numbers: written as usual: 123.4
• Strings: always in double quotes: "Some text"
• Arrays: written in brackets with comma-separated elements: [10,20,"some text","other text",30]
• Objects: written in braces with key:value pairs: {key1:"Some text",key2:123.4,key3:[10,20,30]}

Note that there is no boolean type: 0 is used for false and 1 for true. Examples:

ASSIGN myNumber, 10
ASSIGN myText, "hello"
ASSIGN myList, [10, 20, 30]
ASSIGN myObject, {key1: 20, key2: "hello"}
ASSIGN mixed, [10, {key: "data"}, 30]

Access via paths in their SNA
The SNA associated with these variables are P$ (for ASSIGN) and X$ (for SAVEVALUE). But since variables can now be more than numbers, SNAs become more versatile so you can access any part of a variable. Access is guided by a path of keys separated by dots, both for arrays and objects:

ASSIGN grades, [8,4,5]
ASSIGN avg, (P$(grades.0) + P$(grades.1) + P$(grades.2)) / 3

ASSIGN grades, {examGrade1:8,examGrade2:4,examGrade3:5}
ASSIGN avg, (P$(grades.examGrade1) + P$(grades.examGrade2) + P$(grades.examGrade3)) / 3

And all of this can become as complex as needed by embedding SNAs anywhere in the notation to build the right path:

ASSIGN number_0,0
ASSIGN number_1,1
ASSIGN number_2,2

ASSIGN grades, {examGrade_0:8,examGrade_1:4,examGrade_2:5}
ASSIGN avg, (P$(grades.examGrade_P$number_0) + P$(grades.examGrade_P$number_1) + P$(grades.examGrade_P$number_2)) / 3

Or accessing an array inside an object, or an object inside an array, following the same approach:

ASSIGN group, [{name: "Luis"}, {name: "Marta"}]
ASSIGN firstName, P$(group.0.name)

There is a single reserved word for these paths: LENGTH

ASSIGN length, P$(anArray.LENGTH)

Partial modification via paths
You can also modify part of a structure by addressing it directly:

ASSIGN anArray.0, {key1: "text1"}

turning the first array element into an object.

SNA for access without evaluation: V$
While P$ and X$ evaluate contents to be displayed, V$ returns the raw content (number, string, object, or array) without any processing. This is necessary to pass a whole array or object through a parameter or to make perfect copies.

; make a copy:
ASSIGN students,[{name:"Ana",age:20},{name:"Alberto",age:22},{name:"Antonio",age:19}]
ASSIGN studentsCopy, V$(students)

; get a specific element
ASSIGN element, V$(anArray.1)

; or pass it as a parameter
CALL goToClass, V$(anArray.1)

It is important to distinguish P$someText from V$someText.

ASSIGN myName,"Antonio"
MOVE {name:text1,text:"My name is P$myName"} ; shows 'My name is Antonio'
MOVE {name:text1,text:"My name is V$myName"} ; shows 'My name is "Antonio"'

This difference exists precisely because V$ retrieves the raw datum, which includes the type declaration—in this case, a string.
V$ should not be used directly inside strings. It is reserved for contexts where a structured value is expected.

As a final note, null handling is done with the "?" operator, so you can assign a value if it has not been assigned before with:

ASSIGN max_value, P$max_value ? P$max_value : 100



---

Example:

/* Structured variables: Arrays and Objects
Declaration, access, and modification of complex data.
*/

POSITION {NAME:POS1,X:300,Y:100}

INITIAL posY,400
GRAPHIC {NAME:Text1,Type:TEXT,X:324,Y:X$posY - 0}
GRAPHIC {NAME:Text2,Type:TEXT,X:324,Y:X$posY - 20}
GRAPHIC {NAME:Text3,Type:TEXT,X:324,Y:X$posY - 40}
GRAPHIC {NAME:Text4,Type:TEXT,X:324,Y:X$posY - 60}
GRAPHIC {NAME:Text5,Type:TEXT,X:324,Y:X$posY - 80}
GRAPHIC {NAME:Text6,Type:TEXT,X:324,Y:X$posY - 100}
GRAPHIC {NAME:Text7,Type:TEXT,X:324,Y:X$posY - 120}
GRAPHIC {NAME:Text8,Type:TEXT,X:324,Y:X$posY - 140}
GRAPHIC {NAME:Text9,Type:TEXT,X:324,Y:X$posY - 160}

START 1

;*****************************************************************

GENERATE 1,0,0,1 {NAME:GEN1,X:100,Y:100}

; --- Declarations of all types ---
ASSIGN myNumber, 10 * 2
ASSIGN myText, "Result"
ASSIGN myArray, [10, 20, 30]
ASSIGN myObject, {key1: 222, key2: 333}
ASSIGN myArrayOfObjects, [10, {key1: 555, key2: (111 * 6)}, 30]

; --- Path-based access ---
ASSIGN sum, P$(myArray.0) + P$(myArray.1)

; --- Path-based modifications ---
ASSIGN myArray.2, 777
ASSIGN myObject.key1, {depth: "inner value"}
ASSIGN myObject.key2, V$(myArray.2)

; --- Raw-value copies (entire structures) ---
ASSIGN objectCopy, V$(myObject)
ASSIGN copiedElement, V$(myArrayOfObjects.1)

; --- Length evaluation ---
ASSIGN arraySize, P$(myArrayOfObjects.LENGTH)

; --- Display ---
MOVE {NAME:Text1, TEXT: "myNumber = P$myNumber"}
MOVE {NAME:Text2, TEXT: "myText = P$myText"}
MOVE {NAME:Text3, TEXT: "myArray.2 = P$(myArray.2)"}
MOVE {NAME:Text4, TEXT: "myObject.key1.depth = P$(myObject.key1.depth)"}
MOVE {NAME:Text5, TEXT: "myObject.key2 (copied) = P$(myObject.key2)"}
MOVE {NAME:Text6, TEXT: "myArrayOfObjects.1.key2 = P$(myArrayOfObjects.1.key2)"}
MOVE {NAME:Text7, TEXT: "objectCopy.key2 = P$(objectCopy.key2)"}
MOVE {NAME:Text8, TEXT: "copiedElement.key1 = P$(copiedElement.key1)"}
MOVE {NAME:Text9, TEXT: "Array length = P$arraySize"}

ADVANCE 100,0 {TO:POS1}
ENDGENERATE 1

We already know that an ASSIGN creates an attribute (variable) associated with each entity or virtual entity, and that a SAVEVALUE is a global system value.
We have also seen that they are accessed through expressions such as P$name or X$name.
These expressions are called SNA, String/Numeric Accessors, and they are a fundamental language mechanism to dynamically access any value in the model.

• P$name — Returns the content as text. Useful for traces, graphic labels, or string concatenation.
• V$name — Returns the raw value (string, number, object, or array), exactly as it was assigned.
• X$name — Returns the content of a SAVEVALUE (global value).

ASSIGN aVariable, {name:"Antonio", age:30}
CALL fun, V$(aVariable) ; sends the object itself

Additionally, there are specific SNAs to access system data:

• AC1$ — Current system time.
• TG1$ — Number of entities pending execution.

And also resource properties:

• R$(resource, property) — Returns the requested property value.
• R$(storage1, IN) — Entries into a STORAGE.
• R$(facility3, ENTRIES) — Number of uses of a FACILITY.
• R$(market1, QUEUE) — Current queue length.

SNAs are not instructions; they are expressions.
They are evaluated anywhere a value is expected, which makes them an essential tool for decisions, message construction, calculations, or access to complex structures.

In the example, two very representative SNAs are used:

• AC1$: the current system time.
• R$(VENTANILLA,QUEUE): current queue state of the resource.
• D$N: returns the identifier of the current virtual entity. In this case, it is stored in a variable number via ASSIGN, and later accessed using P$number.

This shows how SNAs can be used both to obtain system data and to manipulate entity-specific variables, and how they integrate seamlessly with visual commands such as MOVE.

Finally, we have the SYS$ SNA, which contains basic system variables inside an object, such as date and time information:

ASSIGN sys, SYS$
MOVE {NAME:REALTIME1, TEXT:"P$(sys.date.year)/P$(sys.date.month)/P$(sys.date.day)"}
MOVE {NAME:REALTIME2, TEXT:"P$(sys.date.hour):P$(sys.date.min):P$(sys.date.sec)"}

Direct access to entity data:

The D$ SNA allows querying internal properties of any entity in the system.
Its general syntax is:

D$(property)                    ; current entity
D$(property, entityNumber)      ; specific entity

If the second parameter is omitted, D$N (the current entity) is assumed.

All these properties apply both to the current entity and to any other entity if its number is specified:

• N, ID — Entity identifier
• M0, M1 — Parameters M0 and M1
• BLOCK — Current block index
• STEP — Executed step number
• RESOURCETIME — Time inside the current FACILITY/STORAGE
• RESOURCENAME — Name of the occupied resource
• ADVANCESTART — Time when the current ADVANCE started
• ADVANCELAPSE — Remaining duration of the ADVANCE
• X, Y, Z — Visual coordinates
• T — Absolute creation time
• CX — Entity context

It is also possible to check for the existence of an entity using the same D$ SNA:

IF (D$(EXIST,1000)==1)
    ; entity 1000 is active
ENDIF

---

Example:

/* SNA: System and Resource Attributes
A virtual entity monitors the queue state of a resource.
*/

SYSTEM {TYPE:ON_TIMER, TRIGGER:Timer1, INTERVAL: 5}

FACILITY {NAME:Ventanilla,X:470,Y:308}
GRAPHIC {NAME:Text1,Type:TEXT,X:471,Y:254}
GRAPHIC {NAME:Text2,Type:TEXT,X:471,Y:234}

START 100

GENERATE 10,0 {NAME:gen1,X:115,Y:307}
    ADVANCE 20 {TO:Ventanilla}
    SEIZE Ventanilla
    ADVANCE 20
    RELEASE Ventanilla
ENDGENERATE 1

; Display current queue status periodically

PROCEDURE Timer1
    ASSIGN number, D$N
    MOVE {NAME:Text1, TEXT:"I am virtual entity number: P$number"}
    MOVE {NAME:Text2, TEXT:"T: AC1$       Entities in queue: R$(Ventanilla,QUEUE)"}
    TERMINATE
ENDPROCEDURE 1

Native functions allow operating directly on the contents of a variable, whether numeric, string, array, or object. Some functions modify the variable in place.

The format is always the same:

ASSIGN.<FUNCTION> targetVariable, parameter [,targetEntityNumber]
SAVEVALUE.<FUNCTION> targetVariable, parameter

If the variable does not exist, it is created.

It is very important to note that JSON objects and arrays can only be created using these two blocks and the INITIAL command. Any other COMMAND or BLOCK that requires object or array parameters must receive an already-created structure via the SNA V$(variable).

CALL fun, V$(structure)
CALL fun, P$(variable)
CALL fun, {name:"Antonio"} ; objects are not interpreted outside ASSIGN, SAVEVALUE or INITIAL
CALL fun, [1,2,V$(otherList)] ; objects are not interpreted outside ASSIGN, SAVEVALUE or INITIAL

Functions:

1. Numeric variables

• .INC value – increments the current value, 1 by default. Modifies its contents

  ASSIGN.INC counter
  ASSIGN.INC counter,10
  ASSIGN.INC myObject.score


2. String variables

• .TRIM – removes leading and trailing spaces Modifies its contents

  ASSIGN.TRIM myString


• .LENGTH – returns the string length Stores the result in another variable

  ASSIGN.LENGTH myString, length


• .JOIN – joins elements into a string Returns a new value

  ASSIGN.JOIN finalString, {DATA:["one","two","three"], SEP:" - "}
  ASSIGN.JOIN finalString, {DATA:V$myArray, SEP:" - "}


3. Array variables

• .PUSH value – adds to the end
  .UNSHIFT value – adds to the beginning
  .EXTEND array – appends elements from another array
• .SPLIT – splits a string into an array
• .SLICE – takes a section of an array between START and END (END not included)

4. Object variables

• .MERGE object – merges keys from another object
  .DELETE path – removes a property Modifies contents
• .KEYS – returns a list of key names Stores the result in another variable

Access paths

The DSL allows assigning values to internal parts of objects or arrays using dot-separated paths.

Object paths do not auto-create intermediate levels. If a path does not exist, an error is raised and the simulation stops.

Array paths allow direct access to any index, even if empty.

SNA VD$

Some data can be accessed directly using the associated SNA for validation and inspection:

• VD$(path) – raw unprocessed value.
• VD$(path,LENGTH) – content length.
• VD$(path,TYPEOF) – data type as text.
• VD$(path,ISEMPTY) – returns "1" if empty, "0" otherwise.
• VD$(path,EXIST) – checks if the full path exists.
• VD$(path,HASKEY,key) – checks if an object has a given key.
• VD$(path,INCLUDES,value) – checks if an array or string includes a value.

---

Example:

POSITION {NAME:POS1,X:300,Y:100}

INITIAL posY,500
GRAPHIC {NAME:Text1,Type:TEXT,X:324,Y:X$posY - 0}
GRAPHIC {NAME:Text2,Type:TEXT,X:324,Y:X$posY - 20}
GRAPHIC {NAME:Text3,Type:TEXT,X:324,Y:X$posY - 40}
GRAPHIC {NAME:Text4,Type:TEXT,X:324,Y:X$posY - 60}
GRAPHIC {NAME:Text5,Type:TEXT,X:324,Y:X$posY - 80}
GRAPHIC {NAME:Text6,Type:TEXT,X:324,Y:X$posY - 100}
GRAPHIC {NAME:Text7,Type:TEXT,X:324,Y:X$posY - 120}
GRAPHIC {NAME:Text8,Type:TEXT,X:324,Y:X$posY - 140}
GRAPHIC {NAME:Text9,Type:TEXT,X:324,Y:X$posY - 160}
GRAPHIC {NAME:Text10,Type:TEXT,X:324,Y:X$posY - 180}
GRAPHIC {NAME:Text11,Type:TEXT,X:324,Y:X$posY - 200}
GRAPHIC {NAME:Text12,Type:TEXT,X:324,Y:X$posY - 220}
GRAPHIC {NAME:Text13,Type:TEXT,X:324,Y:X$posY - 240}
GRAPHIC {NAME:Text14,Type:TEXT,X:324,Y:X$posY - 260}

START 1

GENERATE 1,0,0,1 {NAME:GEN1,X:100,Y:100}

; Base variables
ASSIGN greeting, "Hello"
ASSIGN complement, "world"
ASSIGN originalMessage, "   Hello World GPSS+   "
ASSIGN names, ["Ana", "Luis", "Eva"]
ASSIGN otherNames, ["Sonia", "David"]
ASSIGN textWithSeparator, "one,two,three,four,five"

; Array methods
ASSIGN.PUSH names, "Ricardo" ; ["Ana", "Luis", "Eva", "Ricardo"]
ASSIGN.UNSHIFT names, "Laura" ; ["Laura", "Ana", "Luis", "Eva", "Ricardo"]
ASSIGN.EXTEND names, V$otherNames ; ["Laura", "Ana", "Luis", "Eva", "Ricardo", "Sonia", "David"]
ASSIGN.SLICE names, {START:1,END:6} ; ["Ana", "Luis", "Eva", "Ricardo", "Sonia"]

; String methods
ASSIGN.JOIN finalMessage, {DATA:["P$greeting", " ", "P$complement", "!"]} ; "Hello world!"
ASSIGN.JOIN namesText, {DATA:V$names,SEP:" - "} ; "Ana - Luis - Eva"
ASSIGN.SPLIT words, {DATA:V$textWithSeparator, SEP:","} ; ["one","two","three","four","five"]
ASSIGN.TRIM originalMessage ; "Hello World GPSS+"
ASSIGN.LENGTH originalMessage, messageLength ; 16

; Objects
ASSIGN data, {name:"John", age:25}
ASSIGN newData, {city:"Madrid", age:30}
ASSIGN.MERGE data, V$newData
ASSIGN.DELETE data, city

; Numeric
ASSIGN counter, 10
ASSIGN.INC counter,-5
ASSIGN.INC counter

; Keys
ASSIGN students, {ana:{age:20}, luis:{age:25}}
ASSIGN.KEYS students, studentKeys

; Access paths
ASSIGN myObject, {}
ASSIGN myObject.key1, 123
;ASSIGN myObject.key2.otherLevel, "error" -> error because it does not exist
ASSIGN myArray, []
ASSIGN myArray.2, 99
ASSIGN myArray.3, []
ASSIGN.PUSH myArray.3, 199

; Display results
MOVE {NAME:Text1, TEXT:"Final message: P$finalMessage"}
MOVE {NAME:Text2, TEXT:"Names (2): P$(names.2) LENGTH: VD$(names,LENGTH)"}
MOVE {NAME:Text3, TEXT:"Names text: P$namesText"}
MOVE {NAME:Text4, TEXT:"Words[1]: P$(words.1)"}
MOVE {NAME:Text5, TEXT:"Trimmed text: P$originalMessage"}
MOVE {NAME:Text6, TEXT:"Message length: P$messageLength"}
MOVE {NAME:Text7, TEXT:"data.age: P$(data.age)"}
MOVE {NAME:Text8, TEXT:"data.city: P$(data.city)"} ; should be empty
MOVE {NAME:Text9, TEXT:"Final counter: P$counter"}
MOVE {NAME:Text10, TEXT:"studentKeys[1]: P$(studentKeys.1)"}
MOVE {NAME:Text11, TEXT:"Type of names: VD$(names,TYPEOF)"}
MOVE {NAME:Text12, TEXT:"Students has luis?: VD$(students,HASKEY,luis)"}
MOVE {NAME:Text13, TEXT:"myObject.key1: P$(myObject.key1)"}
MOVE {NAME:Text14, TEXT:"myArray.3.0: P$(myArray.3.0)"}

ADVANCE 100,0 {TO:POS1}
ENDGENERATE 1

Accessing Variables from Other Entities

In addition to working with local or global variables, GPSS-Plus allows reading and writing ASSIGN variables from any live entity in the system.

Reading via SNA:

The usual P$ SNA accepts a second parameter indicating the target entity number:

P$(variableName, entityNumber)

This makes it possible to query internal values from another entity without copying them into a SAVEVALUE.

MOVE {name:text5, text:"Entity 2 has: P$(aPrivateNumber,2)"}

This directly accesses the variable aPrivateNumber currently active in entity number 2.

Writing into another entity:

By using a third parameter in the ASSIGN instruction, data can be stored directly into the target entity:

ASSIGN aNumber, 123, 1

Checking entity existence:

The existence of an entity can be verified using the specific SNA:

IF (D$(EXIST,1000)==1)

---

Example:

/* Cross-entity access using P$ and ASSIGN with target entity */

POSITION {NAME:POS_MOD,   X:286, Y:244}
POSITION {NAME:POS_END,   X:741, Y:233, type:terminate}

GRAPHIC {NAME:T1, type:TEXT, X:455, Y:300}
GRAPHIC {NAME:T2, type:TEXT, X:455, Y:188}

START 60   ; there will be 6 entities (3 of each type)

/* --- ENTITY TYPE A --- */
GENERATE 30,0,15 {NAME:GA, X:100, Y:70, ECOLOR:#ff3333, subtitle:"A"}
    ASSIGN miValor, 100
    MOD {subtitle:"My value P$miValor"}

    ADVANCE 20 {to:POS_MOD}

    ; If entity B exists (2, 4, 6...)
    IF (D$(EXIST, D$N+1)==1)
        ASSIGN nEntidadDestino, D$N+1
        ASSIGN miValor, P$(miValor)+10, P$nEntidadDestino   ; A increments B's value
        MOVE {name:T1, text:"I change the value of P$nEntidadDestino to: [P$(miValor,P$nEntidadDestino)]"}
    ENDIF

    ADVANCE 50 {to:POS_END}
ENDGENERATE 3

/* --- ENTITY TYPE B --- */
GENERATE 30,0 {NAME:GB, X:103, Y:407, ECOLOR:#3366ff, subtitle:"B"}
    ASSIGN miValor, 200
    MOD {subtitle:"My value P$miValor"}

    ADVANCE 20 {to:POS_MOD}

    ; If entity A exists (1, 3, 5...)
    IF (D$(EXIST, D$N-1)==1)
        ASSIGN nEntidadDestino, D$N-1
        ASSIGN miValor, P$(miValor)-5, P$nEntidadDestino   ; B reduces A's value
        MOVE {name:T2, text:"I change the value of P$nEntidadDestino to: [P$(miValor,P$nEntidadDestino)]"}
    ENDIF

    ADVANCE 50 {to:POS_END}
ENDGENERATE 3

Control structures allow entities to make decisions, repeat blocks of code, or iterate over collections. GPSS-Plus incorporates these structures with a simple syntax adapted to the declarative paradigm of the language.

1. IF / ELSE / ENDIF

Evaluates a condition and executes alternative blocks depending on the result.

IF (P$edad > 18 || "P$nombre"=="Eva")
    MOVE {name:text1,text:"Adult or is Eva"}
ELSE
    MOVE {name:text1,text:"Minor or not Eva"}
ENDIF

• The condition must be enclosed in parentheses.
• Logical operators (&&, ||) and comparisons (==, !=, >, <, >=, <=) can be used.
• The entire condition is evaluated as a single expression.

2. FOREACH / ENDFOREACH

ASSIGN listaAlumnos,[{nombre:"Ana"},{nombre:"Luis"}]
FOREACH alumno IN V$listaAlumnos
    MOVE {name:text1,text:"Student: P$alumno.nombre"}
ENDFOREACH

• Iterates over the elements of a collection (array or object).
• The iteration variable must be an ASSIGN.
• Can iterate over arrays or arrays of objects.
• The iteration variable is automatically created if it does not exist.
• The data source must be a valid reference via its SNA V$(route).

Available modes

• IN: Iterates over an array.
• IN_OBJECT: Iterates over the keys of an object.
• IN_RESOURCE: Iterates over entities currently using a resource.
• IN_QUEUE: Iterates over entities waiting in a resource queue.

3. REPEAT / UNTIL

ASSIGN intento, 0
REPEAT
    ASSIGN.INC intento
    MOVE {name:text1,text:"Attempt number: P$intento"}
UNTIL (P$intento >= 3)

• Repeats a block until a condition is met.
• Executes at least once.
• The condition is evaluated after each iteration.

4. SWITCH / CASE / ENDCASE / ENDSWITCH

Allows execution of specific blocks depending on the value of an expression, similar to switch-case in other languages.

5. WHILE / ENDWHILE

Executes a block while a condition remains true. Unlike REPEAT, the condition is evaluated before each iteration.

---

Example:

/* Control Structures: FOREACH and REPEAT
Iteration over arrays, objects and resources.
*/

POSITION {NAME:POS1,X:651,Y:480}
INITIAL posY,400

GRAPHIC {NAME:Text1,Type:TEXT,X:324,Y:X$posY - 0}
GRAPHIC {NAME:Text2,Type:TEXT,X:324,Y:X$posY - 20}
GRAPHIC {NAME:Text3,Type:TEXT,X:324,Y:X$posY - 40}
GRAPHIC {NAME:Text4,Type:TEXT,X:324,Y:X$posY - 60}
GRAPHIC {NAME:Text5,Type:TEXT,X:324,Y:X$posY - 80}
GRAPHIC {NAME:Text6,Type:TEXT,X:324,Y:X$posY - 160,color:#000000}

FACILITY {NAME:Facility1,X:382,Y:483,capacity:3}

START 100

GENERATE 10,0 {name:GEN1,X:110,Y:477}

ASSIGN edad,2
ASSIGN nombre,"Eva"

; IF (P$nombre=="Eva") -> Incorrect expression, missing quotes
IF ("P$nombre"=="Eva")
    MOVE {name:Text1, text:"Correct expressions"}
ENDIF

IF (P$edad > 18 || V$nombre=="Eva")
    MOVE {name:Text1, text:"Correct expressions"}
ENDIF

ASSIGN intentos, 0
MOVE {name:Text1, text:"Current color: P$valor"}

; FOREACH: iterate through all preferences
ASSIGN gustos_luis,""
ASSIGN persona, {nombre:"Luis"
        , gustos:["leer", "música", "viajar", "dormir"]
        , ciudad:"Madrid"
        , pais:"España"
        }
FOREACH gusto, IN, V$(persona.gustos)
    ASSIGN gustos_luis,"P$gustos_luis P$gusto"
ENDFOREACH
MOVE {name:Text1, text:"Luis's preferences: P$gustos_luis"}

ASSIGN claves_valores,""
FOREACH clave, IN_OBJECT, V$(persona)
    ASSIGN claves_valores,"P$(claves_valores) \n P$clave  P$(persona.P$clave)"
ENDFOREACH

MOVE {name:Text6, text:"Keys and values of persona:\n P$(claves_valores)"}

ASSIGN entidades_cola,""
FOREACH entidad, IN_QUEUE, Facility1
    ASSIGN entidades_cola,"P$entidades_cola P$entidad"
ENDFOREACH
MOVE {name:Text3, text:"entities in queue: P$entidades_cola"}

ASSIGN entidades_dentro,""
FOREACH entidad, IN_RESOURCE, Facility1
    ASSIGN entidades_dentro,"P$entidades_dentro P$entidad"
ENDFOREACH
MOVE {name:Text4, text:"entities inside: P$entidades_dentro"}

ASSIGN intento, 0
ASSIGN maximo, 3

ASSIGN intentos,""
REPEAT
    ASSIGN.INC intento
    ASSIGN intentos,"P$intentos P$intento"
UNTIL (P$intento >= P$maximo)
MOVE {name:Text5, text:"attempts: P$intentos"}

ADVANCE 10,0 {to:Facility1}
SEIZE Facility1
ADVANCE 20,30
RELEASE Facility1

ADVANCE 100,0 {TO:POS1}
ENDGENERATE 1

Subprocesses and calls in GPSS-Plus (introduction)

GPSS-Plus incorporates a complete subprocess system that did not exist in classic GPSS, thanks to the introduction of execution stacks.
This allows an entity —or even the system itself— to invoke independent procedures and resume execution in a controlled way.

There are several types of calls, depending on who invokes and who executes the procedure:

• CALL — Executed by the same entity that invokes it.
• SIGNAL — Executed by another entity, but only when the current one releases its turn.
• SIGNALNOW — Executed by another entity immediately, interrupting the current one.
• TIMEOUT — Executed by a virtual entity (VE) at a future time.
• ON_* — Executed by a VE when an event occurs on a resource (SEIZE, RELEASE, ENTER...).
• TIMER — Executed by a VE periodically.
• PRE_RUN — Executed by a VE at the start of the simulation.

All of them jump to a PROCEDURE block, which must end with ENDPROCEDURE.

Hierarchical names

Procedures can be organized as paths:

agente.abrir
cliente.saludar
robot1.motor.arrancar

The returned value will be automatically stored in a variable whose name matches the last fragment ("abrir", "saludar", "arrancar").

Parameters and available SNA

Inside a PROCEDURE, the received parameters can be accessed:

• P$PARAM_A — evaluated value
• V$PARAM_A — raw value (array, object, number, unevaluated string)

Procedure termination

A procedure can end with:

• RETURN value — Returns to the caller.
• RETURN_RESTORE value — For SIGNAL/SIGNALNOW: the target entity resumes exactly where it was.
• RETURN_RETRY value — For SIGNAL/SIGNALNOW: the target entity repeats its current step (typical in resource retries).

The SYSTEM command allows configuring different aspects of the simulation engine. Its basic syntax is:

SYSTEM {TYPE:..., ...}

Simulation parameters (speed, precision...)
You can control the simulation speed, temporal precision, and time decimal precision:

SYSTEM {TYPE:OPTIONS, SPEED:3}
SYSTEM {TYPE:OPTIONS, TIME_DECIMALS:2}
SYSTEM {TYPE:OPTIONS, width:1400, height:1400}
SYSTEM {TYPE:OPTIONS, SEED:1400}

• SPEED: Initial playback speed (default: 5).
• TIME_DECIMALS: Allows AC1 time to have decimal values like 3.14 instead of integers (default: 0).
• WIDTH: Width of the simulation canvas. Default 800.
• HEIGHT: Height of the simulation canvas. Default 600.
• SEED: Generates the random number sequence using Xorshift128+.
• TRACE_ROUTES: Generates traces for V&V.

2.- Show basic system information

You can enable or disable the display of key engine elements:

SYSTEM {TYPE:OPTIONS, SHOW_BASICS:1}

This will display at the bottom:

• TG1: Initial global time
• AC1: Current time
• SPEED: Simulation speed

3.- Timers (TIMER)

Timers allow procedures to be executed periodically, without entity intervention:

SYSTEM {TYPE:ON_TIMER, TRIGGER:fill, INTERVAL:0.1}

• TRIGGER: Name of the procedure to execute.
• INTERVAL: Time interval (in simulation units) between executions.

This is useful for monitoring tasks, logging, periodic loads, etc.

---

Example:

SYSTEM {TYPE:OPTIONS, SPEED:5, TIME_DECIMALS:1, SHOW_BASICS:0}
SYSTEM {TYPE:ON_TIMER, TRIGGER:updateGraphics, INTERVAL:0.5}

PROCEDURE updateGraphics
   move {name:text1:text: "Text updated at AC1$"}
   TERMINATE_VE
ENDPROCEDURE

The platform includes visual and technical tools that allow detailed tracking of the simulation, both at execution level and in terms of results.

Debug panel

From the third panel (playback canvas, tracking and debug, code editor), you can access:

• Event queue
  Shows in real time which entities are scheduled, their temporal position (TG1) and which program step they are currently in.

• Resources
  Details the occupying entities, those waiting (queue), and the capacity of each resource.

• Entities
  Displays the state of each entity: variables, position, current step, delay, etc.

• Files
  Displays all files created using the FILE command and the WRITE block.
  It also includes the special DEBUG file, which is automatically generated when instructions are marked with {debug:1} or {debug:2}.

  • {debug:1} records general information about the execution of the line.

  • {debug:2} includes evaluated variable values and detailed results.

if (P$variable == 1) {debug:1}
assign P$variable, X$source {debug:2}



Report button

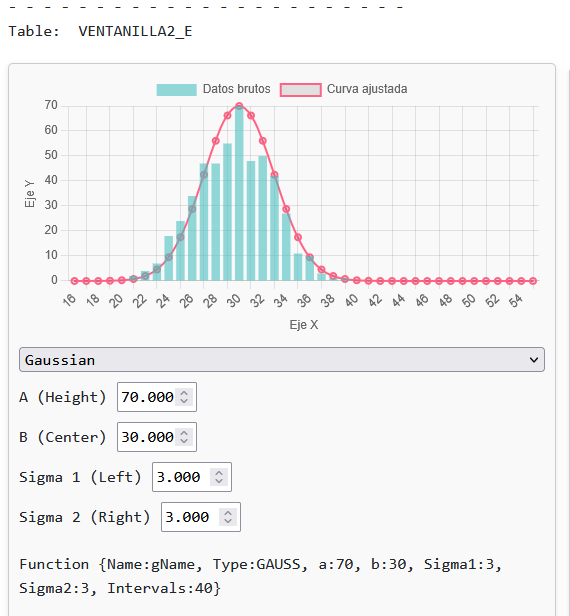

Using the Report button, a complete statistical overview of the simulation is generated:

• General simulation information, final time (AC1), number of processed entities, etc.
• Status and history of each resource and its charts.
• Information about the PLOTTER elements and their charts.

This example shows the basic use of a STORAGE resource, useful to model inventories, warehouses, or capacity-limited areas. Entities consume a random number of units from the resource, representing a variable load.

The interesting part of the example is how to obtain the resource contents in real time using two different methods:

• Sum of individual data: using FOREACH, you iterate over each entity occupying the resource and add up its associated values (in this case, the number of units it took).

• Direct query: with R$(WAREHOUSE1,LEFT) you get the number of free units, so the total occupied is CAPACITY - LEFT.

Both approaches let you cross-check and validate the information, and can be applied to statistical calculations, inventory control, or saturation alerts.

The TIMER periodically updates the on-screen information, providing a continuous view of the resource state.

---

Example:

/*

 Accessing and measuring a resource

*/
STORAGE {NAME: WAREHOUSE1, CAPACITY:40, X:316,Y:401}

SYSTEM {TYPE:ON_TIMER,INTERVAL:50,TRIGGER:PROCTIMER}

GRAPHIC {NAME:BANNER1,TYPE:TEXT,X:184,Y:343,TEXT:RANDOM.}
GRAPHIC {NAME:BANNER2,TYPE:TEXT,X:305,Y:283,TEXT:SUM}
GRAPHIC {NAME:BANNER3,TYPE:TEXT,X:306,Y:241,TEXT:DIRECT}

POSITION {NAME:POS1,X:176,Y:296}
POSITION {NAME:POS2,X:452,Y:300}
POSITION {NAME:POS3,X:559,Y:299}

START 100

;******************************************************

GENERATE 30,10 {NAME:GEN1,X:61,Y:297}

    ASSIGN RANDOM,FLOOR(RANDOM * 9 + 1) {debug:1}

    MOVE {NAME:BANNER1,TEXT:"RANDOM: P$RANDOM"}
    ADVANCE 20 {TO:POS1}
    ADVANCE 20 {TO:WAREHOUSE1}
    ENTER WAREHOUSE1  ,P$RANDOM
    ADVANCE 110,90
    LEAVE WAREHOUSE1
    ADVANCE 20 {TO:POS2}
    ADVANCE 20,0 {TO:POS3}
ENDGENERATE 1

;*****************************************************
PROCEDURE PROCTIMER

    ASSIGN SUM,0

    FOREACH NUMBER,IN_RESOURCE,WAREHOUSE1
      ASSIGN SUM,(P$(RANDOM,P$NUMBER) + P$SUM)
    ENDFOREACH

    MOVE {NAME:BANNER2,TEXT:"SUM OF RANDOMS: P$SUM"}
    ASSIGN DIRECT,40-R$(WAREHOUSE1,LEFT)
    MOVE {NAME:BANNER3,TEXT:"DIRECT: P$DIRECT"}
    TERMINATE_VE
ENDPROCEDURE
;*****************************************************

Not all resources must serve every entity for the same duration. In some scenarios—such as customer service, healthcare triage, or processing stations—it can be reasonable to adapt the service time based on the system load.

In this example, three counters (Facility_1, Facility_2, Facility_3) receive entity flows of different intensities. Each one is paired with a Queuer, which lets you measure and record the current queue size.

Before being served, each entity calls a procedure that dynamically computes its service time, based on the current queue size of the resource.

The logic used here is one of the following:

assign queueSize,R$(P$counter,QUEUE) + 1

ASSIGN serviceTime, round(max(2, 120 / P$queueSize))
ASSIGN serviceTime, round(max(2, 120 / sqrt(P$queueSize)))
ASSIGN serviceTime, round(120 / log(P$queueSize + 1))

This means:

• With a larger queue, service time becomes shorter, prioritizing throughput.

• With a smaller queue, more time is spent per entity, improving service quality.

It is an automatic balancing strategy between quality and performance.

This technique demonstrates:

• How to couple a resource with its Queuer to measure load.

• How to use mathematical functions to adapt ADVANCE durations.

• How to keep queue size under control without sacrificing attention.

The example can easily be extended to:

• More complex service-time functions.

• Decision-making about which counter to choose.

• Global system performance optimization.





---

Example:

/*

 Managing service time

*/
Facility {NAME:Facility_1,X:400,Y:84,capacity:3,E_BIN_SIZE:1,E_BIN_COUNT:200}
Facility {NAME:Facility_2,X:400,Y:282,capacity:3,E_BIN_SIZE:1,E_BIN_COUNT:200}
Facility {NAME:Facility_3,X:400,Y:471,capacity:3,E_BIN_SIZE:1,E_BIN_COUNT:200}

Queuer {NAME:Queuer_1,X:400,Y:174,R_BIN_SIZE:1,R_BIN_COUNT:30}
Queuer {NAME:Queuer_2,X:400,Y:363,R_BIN_SIZE:1,R_BIN_COUNT:30}
Queuer {NAME:Queuer_3,X:400,Y:557,R_BIN_SIZE:1,R_BIN_COUNT:30}



Graphic {NAME:Text_1,Type:TEXT,X:400,Y:132}
Graphic {NAME:Text_2,Type:TEXT,X:400,Y:323}
Graphic {NAME:Text_3,Type:TEXT,X:400,Y:512}

POSITION {NAME:POS_1,X:700,Y:137}
POSITION {NAME:POS_2,X:700,Y:328}
POSITION {NAME:POS_3,X:700,Y:506}

START 1000

;*********************************************************

GENERATE 10,0 {NAME:GEN1,X:100,Y:126}
    CALL counterPath,1
ENDGENERATE 1

GENERATE 15,0 {NAME:GEN2,X:100,Y:319}
    CALL counterPath,2
ENDGENERATE 1

GENERATE 20,0 {NAME:GEN3,X:100,Y:492}
    CALL counterPath,3
ENDGENERATE 1
;----------------------------------
PROCEDURE counterPath
	assign counter,"Facility_P$PARAM_A"
	assign queue,"Queuer_P$PARAM_A" {debug:1}
	assign counterId,"P$PARAM_A"
    ADVANCE 20 {TO:"P$counter"}
    CALL computeTime , "P$counter",P$counterId
	QUEUE P$queue
	SEIZE P$counter
	DEPART P$queue
    ADVANCE P$computeTime
    RELEASE P$counter
    ADVANCE 20 {TO:"POS_P$counterId"}
ENDPROCEDURE
;----------------------------------
PROCEDURE computeTime
	assign counter,"P$PARAM_A"
	assign counterId,P$PARAM_B
    assign queueSize,R$(P$counter,QUEUE) + 1

    ;ASSIGN serviceTime, round(max(2, 120 / P$queueSize))
    ;ASSIGN serviceTime, round(max(2, 120 / sqrt(P$queueSize)))
    ASSIGN serviceTime, round(120 / log(P$queueSize + 1))
    move {name:"Text_P$counterId",text:"service time: P$serviceTime"}
	RETURN P$serviceTime
ENDPROCEDURE

In this example, entities must decide which of three paths to take, each one associated with a counter that has its own queue (FACILITY with different capacity). The decision is made in DECIDE.SELECT, which iterates a list containing the path names and the current size of their queues (QUEUE). The result is the name of the path with the least load.

That value is a STRING returned with ENDPROCEDURE and is automatically stored in the variable P$SELECT, which is then used directly as a call: CALL P$SELECT. This mechanism enables dynamic selection without conditionals or multiple explicit calls.

The .decide structures are used to directly return the name of the procedure to execute, saving the programmer from having to write a SWITCH or a cascade of IF.

This greatly simplifies the decision logic, because simply:

CALL DECIDE.SELECT
CALL P$SELECT

replaces:

CALL DECIDE.SELECT
SWITCH P$SELECT
  CASE ==, "PATH1"
    CALL PATH1
  CASE ==, "PATH2"
    CALL PATH2
  ...
ENDSWITCH

---

Example:

/*

 Rerouting queues

*/
FACILITY {NAME:COUNTER1,X:320,Y:450,capacity:3}
FACILITY {NAME:COUNTER2,X:320,Y:300,capacity:1}
FACILITY {NAME:COUNTER3,X:320,Y:150,capacity:2}

POSITION {NAME:POS1,X:152,Y:300}
POSITION {NAME:POS2,X:497,Y:300}

Graphic {NAME:Text1,Type:TEXT,X:100,Y:100}

START 200
;*************************************************************************
GENERATE 6,0 {NAME:GEN1,X:54,Y:300}
ADVANCE 20,0 {TO:POS1,flow:1}

CALL DECIDE.SELECT ; returns strings: "PATH1", "PATH2" or "PATH3", creating an ASSIGN named P$SELECT
CALL P$SELECT

ADVANCE 20 {TO:POS2,flow:1,merge:"path"}

ENDGENERATE 1

;*************************************************************************
PROCEDURE DECIDE.SELECT

assign myMap, [
{queue:"PATH1",inQueue: R$(COUNTER1,QUEUE)},
{queue:"PATH2",inQueue: R$(COUNTER2,QUEUE)},
{queue:"PATH3",inQueue: R$(COUNTER3,QUEUE)}
]

ASSIGN MINKEY,"PATH1"; initialize selected KEY
ASSIGN MINVAL,100000 ; initialize the minimum value for comparisons

FOREACH tmp,IN,V$myMap

  IF (P$(tmp.inQueue) < P$MINVAL)
    ASSIGN MINKEY,"P$(tmp.queue)"
    ASSIGN MINVAL,P$(tmp.inQueue)
    move {name:Text1,Text:"Decision: P$(MINKEY) Queue: P$(MINVAL)"}
  ENDIF
ENDFOREACH


ENDPROCEDURE "P$MINKEY" ; will return, for example, "PATH1"

;**************************************************************************

PROCEDURE PATH1
ADVANCE 20  {TO:COUNTER1,flow:1,decision:"path"}
SEIZE COUNTER1
ADVANCE 25,10
RELEASE COUNTER1
ENDPROCEDURE

PROCEDURE PATH2
ADVANCE 20 {TO:COUNTER2,flow:1,decision:"path"}
SEIZE COUNTER2
ADVANCE 80,70
RELEASE COUNTER2
ENDPROCEDURE

PROCEDURE PATH3
ADVANCE 20 {TO:COUNTER3,flow:1,decision:"path"}
SEIZE COUNTER3
ADVANCE 30,20
RELEASE COUNTER3
ENDPROCEDURE

;***************************************************************

We previously saw the ADVANCE block as something that seemed immutable. For example:

ADVANCE 20,10

The role of UPDATE

An entity that is inside an ADVANCE cannot modify its own wake-up time, because it is inactive. Therefore, another entity (usually a virtual entity, triggered by a TIMER or a HOOK) must execute UPDATE to adjust its time.

Technically, UPDATE does not modify an ADVANCE: it modifies the event queue.
It removes the entity from its future activation and reschedules it at a new absolute time.
The engine does not interpret the change: it only keeps the queue ordered.



Scenario: Changing conditions on a road segment

We simulate a road segment under conditions stored in the SAVEVALUE conditions.

• Under normal conditions (conditions = 1.0), it takes 100 time units to cross.

• If conditions = 1.5, the trip takes 150 time units.

• An entity computes its travel time when it enters the segment.

• If conditions change while an entity is on the way, we want to adjust its arrival time to reflect that change.

How is it computed?

Imagine an entity entered when conditions = 1.2 (travel time = 120), but now conditions improve to 1.0. If it has already completed 50%, it would have 50 units left under the new conditions. In total, it would take 110 instead of 120.

The UPDATE command

UPDATE entityID, newTime

This command reschedules an entity with a new activation time, as long as that time is ≥ AC1$ (the current simulation time).

What this example demonstrates:

• That an entity’s behavior can be modified even while it is in progress.

• That TIMER + FOREACH + UPDATE is a powerful combination to react dynamically.

• That it enables representing real-world scenarios where conditions change and the system must adapt.



---

Example:

/*

 Updating the event queue: UPDATE

*/
SYSTEM {TYPE:ON_TIMER, TRIGGER:TIMER1, INTERVAL: 100}

Queuer {NAME:Queuer1,X:350,Y:324}
Graphic {NAME:Text1,Type:TEXT,X:352,Y:381}

POSITION {NAME:POS1,X:90,Y:513}
POSITION {NAME:POS2,X:638,Y:512}
POSITION {NAME:POS3,X:635,Y:322}

START 100

;*********************************************************
INITIAL defaultTime,100
INITIAL conditions,1.0
;*********************************************************
PROCEDURE TIMER1
	savevalue oldConditions,X$conditions
	savevalue conditions,round(random + 0.5,2)
    MOVE {NAME:Text1,TEXT:"Old Conditions: X$oldConditions \nNew conditions: X$conditions"}
    FOREACH number,IN_RESOURCE,Queuer1

    assign myConditions,X$conditions,P$number

    ASSIGN from, D$(ADVANCESTART, P$number)
    ASSIGN lapse, D$(ADVANCELAPSE, P$number)

    ASSIGN completedRatio , (AC1$ - P$from) / P$lapse
	ASSIGN remainingRatio , 1 - P$completedRatio

	ASSIGN adjustedRemainingTime , P$remainingRatio  * X$defaultTime * X$conditions
	ASSIGN newTime, AC1$ + P$adjustedRemainingTime

      if (X$conditions<1)
     	 MOD {number:P$number,color:#00DD00}
      else
      	MOD {number:P$number,color:#000000}
      endif
      if (P$newTime < AC1$)
     	 assign newTime,AC1$
      endif
      Update P$number,P$newTime
    ENDFOREACH



    TERMINATE_VE
ENDPROCEDURE
;*********************************************************


GENERATE 20,0 {NAME:GEN1,X:102,Y:203, ECOLOR:#FF3333, ERADIO:8,esubtitle:P$myConditions}
    ADVANCE 16,5 {TO:POS1}
    assign myTime,X$defaultTime * X$conditions
    assign myConditions,X$conditions
    Queue Queuer1
    ADVANCE P$myTime,0 {TO:POS2}
    Depart Queuer1
    MOD {color:#FF3333}
    ADVANCE 16,5 {TO:POS3}
ENDGENERATE 1

Create and modify

GPSS-Plus lets you define graphic elements that can be moved, transformed, and updated during the simulation. These objects can be texts, curves, images, arcs, or lines, and they can be grouped to form complete visual units.

Graphics can be moved individually or as a group, and you can modify properties such as:

• Position (X, Y)
• Rotation (ROTATE)
• Size (RESIZE)
• Opacity (OPACITY)
• Text content (TEXT)
• Color and angles, for shapes like ARC or LINE

The MOVE commands allow:

• Absolute values, like X:100
• Relative values, reading the current value via GD$, for example: X:GD$(object,X) + 10

This example shows how an entity, across its steps, updates internal variables (SAVEVALUE) and uses those variables to refresh graphic objects on each advance.

It illustrates the use of graphics of type TEXT, CURVE3, CURVE, ARC, IMAGE, and GROUP, as well as the combined use of relative animations, scaling, and rotation.

About curves and filling

GPSS-Plus supports two curve types:

• CURVE3: three-point curve (simple Bezier), declared with direct coordinates X1, Y1, X2, Y2, X3, Y3
• CURVE: Catmull-Rom smoothed curve, defined with a list of points

To declare points, there are two equivalent forms:

• Compact syntax: POINTS:"[x1,y1],[x2,y2],[x3,y3],..."
• Direct pair syntax: X1:1,Y1:2, X2:3,Y2:4, X3:5,Y3:6

Curves, lines, or arcs can be open or closed. To render them as closed shapes with fill, you must set:

• CLOSE:1
• FCOLOR: for the fill color

---

Example:

/*

 Create and modify graphics

*/
SYSTEM {TYPE:OPTIONS, SPEED:8, TIME_DECIMALS:1}

;==============================
; DYNAMIC VARIABLES
;==============================
INITIAL GRADO, 0
INITIAL ALTURA, 80
INITIAL ESCALA, 100
INITIAL CRECIENDO, 1

;==============================
; GRAPHIC ELEMENTS
;==============================

GRAPHIC {NAME:txt, TYPE:TEXT, X:300, Y:50,text:"--test--"}


GRAPHIC {NAME:radarGrupo, TYPE:GROUP, X:300, Y:400}

GRAPHIC {
  GROUP:radarGrupo,
  NAME:radarTexto,
  TYPE:TEXT,
  TEXT:"GRADO: X$GRADO",
  COLOR:#00AAFF,
  X:0, Y:-50
}

GRAPHIC {
  GROUP:radarGrupo,
  NAME:radarImagen,
  TYPE:IMAGE,
  SRC:"DOOR",
  X:100, Y:100,
  OPACITY:0.9,
  ROTATE:0
}

GRAPHIC {
  GROUP:radarGrupo,
  NAME:ondaVisual,
  TYPE:CURVE,
  POINTS:"[0,0],[40,X$ALTURA],[80,0]",
  COLOR:red,
  WIDTH:2,
  OPACITY:0.6
}

GRAPHIC {
  NAME:puerta,
  TYPE:IMAGE,
  SRC:"DOOR",
  X:400, Y:100,
  OPACITY:0.9,
  ROTATE:0
}


GRAPHIC {
  NAME:barreraCircular,
  TYPE:ARC,
  X:100, Y:400,
  COLOR:#FFAA00,
  RADIUS:60,
  START_ANGLE:0,
  END_ANGLE:X$GRADO,
  OPACITY:1,
  CLOSE:0
}


;==============================
; MAIN ENTITY
;==============================
GENERATE 5, 0 {NAME:GEN1, X:50, Y:200}

;move {name:txt,text:"Pos X GD$(barreraCircular,X)"}
; Increase angle (rotation)
SAVEVALUE GRADO, (X$GRADO + 15) % 360

; Raise/lower the wave
IF ((X$GRADO % 180) < 90)
  SAVEVALUE ALTURA, X$ALTURA + 4
ELSE
  SAVEVALUE ALTURA, X$ALTURA - 4
ENDIF

; Animate size
IF (X$CRECIENDO == 1)
  SAVEVALUE ESCALA, X$ESCALA + 5
  IF (X$ESCALA >= 140)
    SAVEVALUE CRECIENDO, 0
  ENDIF
ELSE
  SAVEVALUE ESCALA, X$ESCALA - 5
  IF (X$ESCALA <= 100)
    SAVEVALUE CRECIENDO, 1
  ENDIF
ENDIF

ADVANCE 5, 0

;==============================
; VISUAL UPDATES
;==============================

MOVE {NAME:radarTexto, TEXT:"Degree: X$GRADO"}
MOVE {NAME:radarImagen, ROTATE:X$GRADO}
MOVE {NAME:radarImagen, RESIZE:X$ESCALA}
MOVE {NAME:ondaVisual, Y2:X$ALTURA}


MOVE {NAME:radarGrupo, Y:(GD$(radarGrupo,Y)+(RANDOM*10)-5)}

MOVE {NAME:puerta, RESIZE_X:X$ESCALA * 2}
MOVE {NAME:barreraCircular, END_ANGLE:X$GRADO}


TERMINATE 1

START 500

Before introducing the CX$ context system to instantiate reusable graphic components in independent libraries, it is important to understand how a visual component can be built manually, step by step, using procedures (PROCEDURE) and configuration structures (INITIAL).

This example does not represent the optimal or recommended way to implement reusable graphic components, but it plays an essential role in learning:

• It helps you understand how grouped graphics are declared (GROUP).
• It shows how to parameterize geometry and position using dictionaries (INITIAL).
• It teaches how to encapsulate visual transformations inside procedures.
• It introduces calling “visual functions” from entities using CALL.

This approach will later be replaced by using CX$ contexts, but it’s worth mastering this “manual” level first to understand in depth how GPSS-Plus turns procedures into autonomous, reusable visual components.

In this example, we render a tank with a visual level, made of a GROUP that contains:

• an outer frame (closed LINE)
• a fill level (closed LINE, with variable height)
• a text showing the visible fill percentage

All the tank’s geometry and position are defined via a configuration structure (config) and applied directly to graphics with fixed names. Although this simulates a form of parameterization, it is not reusable as-is: the graphic object names are hard-coded, which prevents instantiating multiple tanks without conflicts.

This limitation will be solved later with CX$ contexts and libraries, which will allow creating multiple visual instances of the same component, each with its own state and configuration.

The nivel_init procedure generates the graphic vertices at startup (PRE_RUN), and deposito_set visually updates the fill level based on a percentage (P$PARAM_A).

deposito_locate is also included, allowing you to move the whole group to a new position.

---

Example:

/*

 Graphics. Procedure-based modification

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}


;==============================
; TANK CONFIGURATION
;==============================
INITIAL config, {deposito_coords:[0, 0, 20, 200],deposito_position:[180,180]}

;==============================
; GRAPHICS
;==============================
GRAPHIC {NAME:Deposito, TYPE:GROUP, X:0, Y:0}

; Outer frame
GRAPHIC {
  NAME:Marco,
  GROUP:Deposito,
  TYPE:LINE,
  POINTS:"[0,0],[0,10],[10,10],[10,10]",
  COLOR:#555555,
  CLOSE:1
}

; Inner level (fill)
GRAPHIC {
  NAME:Nivel,
  GROUP:Deposito,
  TYPE:LINE,
  POINTS:"[0,300],[0,300],[40,300],[40,300]",
  COLOR:#3399FF,
  FCOLOR:#99CCFF,
  CLOSE:1
}

; Percentage text
GRAPHIC {
  NAME:TextoNivel,
  GROUP:Deposito,
  TYPE:TEXT,
  X:0, Y:0,
  TEXT:"Level: 0%",
  COLOR:#000000
}
START 100


PROCEDURE PRE_RUN
	timeout nivel_init,0
	TERMINATE
ENDPROCEDURE 1

;==============================
; UPDATE PROCEDURE
;==============================
PROCEDURE nivel_init
move {name:Marco
	,X1:X$(config.deposito_coords.0)-4,Y1:X$(config.deposito_coords.1)-4
	,X2:X$(config.deposito_coords.2)+4,Y2:X$(config.deposito_coords.1)-4
	,X3:X$(config.deposito_coords.2)+4,Y3:X$(config.deposito_coords.3)+4
	,X4:X$(config.deposito_coords.0)-4,Y4:X$(config.deposito_coords.3)+4
	}

move {name:Nivel
	,X1:X$(config.deposito_coords.0),Y1:X$(config.deposito_coords.1)
	,X2:X$(config.deposito_coords.2),Y2:X$(config.deposito_coords.1)
	,X3:X$(config.deposito_coords.2),Y3:X$(config.deposito_coords.3)
	,X4:X$(config.deposito_coords.0),Y4:X$(config.deposito_coords.3)
	}

MOVE {NAME:TextoNivel
		, x:(GD$(Marco,X1) + GD$(Marco,X2))/ 2
		, y:X$(config.deposito_coords.1)-14, TEXT:"Level: PP$A%"}

MOVE {NAME:Deposito
		, x:X$(config.deposito_position.0)
		, y:X$(config.deposito_position.1)}
terminate
endprocedure 1


PROCEDURE deposito_set

; PP$A = desired percentage (0 to 100)

ASSIGN yBase, X$(config.deposito_coords.1) ; bottom y
ASSIGN yTop, X$(config.deposito_coords.3)  ; top y

ASSIGN alturaMaxima, P$yBase - P$yTop
ASSIGN alturaNivel, P$alturaMaxima * P$PARAM_A / 100
ASSIGN yActual, P$yBase - P$alturaNivel

; Move the level vertices
MOVE {
  NAME:Nivel,
  Y3:P$yActual,
  Y4:P$yActual
}
MOVE {NAME:TextoNivel,TEXT:"Level: P$PARAM_A%"}

ENDPROCEDURE 1

PROCEDURE deposito_locate

MOVE {NAME:Deposito
		, x:P$PARAM_A
		, y:P$PARAM_B}

ENDPROCEDURE 1

;==============================
; ENTITY THAT USES IT
;==============================
GENERATE 25,0 {NAME:Gen1}

CALL deposito_set, 25
ADVANCE 5

CALL deposito_set, 50
ADVANCE 5

CALL deposito_set, 75
ADVANCE 5

CALL deposito_set, 90
ADVANCE 5

CALL deposito_set, 10
ADVANCE 5
CALL deposito_locate, GD$(Deposito,X)+4,GD$(Deposito,Y)+4

TERMINATE 1

This example renders a traditional analog clock using graphic primitives. A PROCEDURE initializes the scene with a background arc, hour markers (TEXT), and the two hands (LINE). A virtual entity (TIMER) is generated periodically and updates the hand positions using trigonometry and time variables (SAVEVALUE).

It combines:

• ARC for the main circle.
• TEXT for the numbers and the digital clock.
• LINE to represent the hands.

This is a clear case where the animation does not come from moving entities, but from programmed visual transformations.

You can observe playback speed: with a value around SPEED: 5, AC1 would roughly match the second hand.

---

Example:

/*

 Graphics. Animated analog clock

*/
SYSTEM {type:OPTIONS, TIME_DECIMALS:0, SPEED:7}
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
SYSTEM {TYPE:ON_TIMER, TRIGGER:TIMER1, INTERVAL: 10}


; ANALOG CLOCK
GRAPHIC {NAME:OUT,TYPE:ARC,X:0,Y:0,COLOR:#FFFF99,RADIUS:200,START_ANGLE:0,END_ANGLE:360,CLOSE:0}
GRAPHIC {NAME:AT12,TYPE:TEXT,X:300,Y:500,TEXT:"12"}
GRAPHIC {NAME:AT3,TYPE:TEXT,X:500,Y:300,TEXT:"3"}
GRAPHIC {NAME:AT6,TYPE:TEXT,X:300,Y:100,TEXT:"6"}
GRAPHIC {NAME:AT9,TYPE:TEXT,X:100,Y:300,TEXT:"9"}

GRAPHIC {NAME:MINLINE,TYPE:LINE,COLOR:#F00,X1:268,Y1:361,X2:265,Y2:332}
GRAPHIC {NAME:HOURLINE,TYPE:LINE,COLOR:#000,X1:240,Y1:361,X2:233,Y2:328}
; DIGITAL CLOCK
GRAPHIC {NAME:TIME,TYPE:TEXT,X:300,Y:536,TEXT:"IT'S.. ",FONT:"26PX"}
GRAPHIC {NAME:REALTIME1,TYPE:TEXT,X:575,Y:536,TEXT:"REALTIME.. ",FONT:"14PX"}
GRAPHIC {NAME:REALTIME2,TYPE:TEXT,X:575,Y:516,TEXT:"REALTIME.. ",FONT:"14PX"}

START 1

; THE CLOCK

GENERATE 100,0 {NAME:GEN1,VISIBLE:0,EVISIBLE:0,X:647,Y:99}

TERMINATE 0


PROCEDURE PRE_RUN
	SAVEVALUE MIN,0
    SAVEVALUE A,0
    SAVEVALUE B,0
    SAVEVALUE CENTROX,300
    SAVEVALUE CENTROY,300
    SAVEVALUE RADIOM,180
    SAVEVALUE RADIOH,120
    MOVE {NAME:OUT,X:X$CENTROX,Y:X$CENTROY}
    MOVE {NAME:MINLINE,x1:0,y1:0,x2:0,y2:0}
	MOVE {NAME:HOURLINE,x1:0,y1:0,x2:0,y2:0}
	TERMINATE_VE
ENDPROCEDURE

PROCEDURE TIMER1

	assign sys,SYS$

    ASSIGN sys, SYS$
  	MOVE {name: REALTIME1, text:"P$(sys.date.year)/P$(sys.date.month)/P$(sys.date.day)"}
  	MOVE {name: REALTIME2, text:"P$(sys.date.hour):P$(sys.date.min):P$(sys.date.sec)"}


	MOVE {NAME:TIME,TEXT:"[X$HOR:X$MIN2]"}
    MOVE {NAME:MINLINE
    		,X1: (X$CENTROX)
    		,Y1:(X$CENTROY)
            ,X2:(X$CENTROX+SIN(X$A)*X$RADIOM)
            ,Y2:(X$CENTROY+COS(X$A)*X$RADIOM)}
    MOVE {NAME:HOURLINE
    		,X1:(X$CENTROX)
    		,Y1:(X$CENTROY)
            ,X2:(X$CENTROX+SIN(X$B)*X$RADIOH)
            ,Y2:(X$CENTROY+COS(X$B)*X$RADIOH)}

    SAVEVALUE MIN, (X$MIN+1)
    SAVEVALUE MIN2,(X$MIN %60)
    SAVEVALUE HOR, (FLOOR(X$MIN/60))
    SAVEVALUE A, (MODULO(X$MIN,60) *2*PI)/60
    SAVEVALUE B, (MODULO(X$MIN,720) *2*PI)/720
	TERMINATE_VE
ENDPROCEDURE

Although everything can be represented in 2D, in some simulations—especially mechanical ones or those with a strong visual focus—it may be desirable to use 3D representations.

GPSS-Plus is not intended to be a 3D modeling tool; the focus is on enabling visually effective simulations that are easy to implement. Therefore, 3D content can come from two sources:

• External .GLB files
• Built-in geometric primitives



Available 3D primitives



Permanent transforms (at creation time)

Dynamic transforms (in MOVE)

These actions are analogous to PRISMATIC and REVOLUTE joints in mechanical systems, but applied directly from the mathematical knowledge of the object's position.

Examples

; Places a spring described in a file between two defined points
MOVE {name:spring, STRETCH_BETWEEN:"[0,0,0],[0,P$x_mass,0]"}

; Places a piston or telescopic segment along a segment at position "X" relative to its center point
MOVE {name:shock_absorber, MOVE_BETWEEN:"[0,0,0],[0,P$x_mass,0]",y:P$x_mass -10}

Enable 3D mode

SYSTEM {TYPE:VISUAL, MODE:3D, V_WIDTH:70, V_HEIGHT:30, CAMERA:1}

V_WIDTH, V_HEIGHT: area the objects will occupy in internal units
CAMERA: camera preset (1 = isometric, 2 = top-down, etc.)

The example

In this example, two points are used to rotate a nut around that same axis.

---

Example:

/*

 Graphics. 3D

*/
SYSTEM {TYPE:PRE_RUN, TRIGGER:PRE_RUN}
SYSTEM {TYPE:VISUAL, MODE:3D, V_WIDTH:40, V_HEIGHT:20, CAMERA:0}
SYSTEM {TYPE:OPTIONS, TIME_DECIMALS:1, SPEED:5}

GRAPHIC {NAME:floor, TYPE:PLANE, X:25, POINTS:"[0,0,0],[0,0,40],[40,0,0]", color:#fabada}

GRAPHIC {NAME:nut, TYPE:OBJECT, src:NUT, X:0, Y:0, Z:0,WIDTH:20, HEIGHT:20, DEPTH:20,rotate_x:90,opacity:0.9}

Graphic {NAME:axis1,Type:LINE,X1:0,Y1:0,X2:0,Y2:500}
Graphic {NAME:axis2,Type:LINE,X1:0,Y1:0,X2:500,Y2:0}
Graphic {NAME:axis3,Type:LINE,X1:0,Y1:0,X2:0,Y2:0,Z2:500}


Graphic {NAME:line4,Type:LINE,POINTS:"[10,0,10],[150,150,150]",color:red}
Graphic {NAME:Text1,Type:TEXT,X:20,Y:20,text:"sss",font:"2px"}



START 1
;===========================
; PROCEDURES
;===========================

PROCEDURE agent.init

savevalue DT,0.1
savevalue speed,1
savevalue X,4
savevalue state,0

  WHILE (1==1)

	if (X$state==0)
    savevalue X,X$X + X$DT * X$speed
	else
    savevalue X,X$X - X$DT * X$speed
	endif

    if (X$X>10)
    savevalue state,1
    endif
    if (X$X<4)
    savevalue state,0
    endif

    assign height, round(X$X,3)
	move {name:Text1,text:"Height: P$height"}
    ; The nut is positioned and rotated around its axis
    MOVE {name:nut, MOVE_BETWEEN:"[10,0,10],[150,150,150]", rotate_y:P$height * 60,y:P$height}

    ADVANCE 1, 0

  ENDWHILE

STOP
ENDPROCEDURE
;===========================
PROCEDURE PRE_RUN

  TIMEOUT agent.init, 0

  TERMINATE_VE

ENDPROCEDURE

In GPSS-Plus, a virtual entity (VE) is usually short-lived: it is created, executes a sequence of blocks, and ends. However, some models require permanent processes that can act as controllers, managers, or passive processes that wait for orders. We call these special VEs agents.

What an agent is

An agent is simply a virtual entity that never finishes its execution. To do this, it is initialized with the TIMEOUT block (outside of GENERATE blocks), which makes it start without depending on any arrival stream.

Once created, an agent can behave in two main ways:

1. Active: it runs cycles continuously (for example, using ADVANCE) to check and make decisions. Like a TIMER that is always the same entity.

2. Passive: it waits using HOLD and stays there until it is ordered to do something else.

How it is created

In PRE_RUN we call its initializer PROCEDURE:

timeout agent1.main,0 ; Will execute at time 0.

By convention, it is named .main.

This PROCEDURE stores its identifier in a SAVEVALUE so that any entity can access it, and then enters an infinite loop with active or passive waiting:

PROCEDURE agent1.main
    SAVEVALUE nAgent1,D$N
    WHILE (1==1)
    ADVANCE 100
    ... ; Periodic actions
    ENDWHILE
    TERMINATE_VE ; Will never be reached
ENDPROCEDURE

;----------------------------------------

PROCEDURE agent2.main
    SAVEVALUE nAgent2,D$N
    HOLD HOLDER_AGENTS
    TERMINATE_VE ; Will never be reached
ENDPROCEDURE

Its associated methods (PROCEDUREs) follow the convention agent.method, for example:

procedure agent2.full_release
    MOVE {NAME:INFO2, TEXT:"T= AC1$ Agent 2 releasing everything"}
    UNHOLD HOLDER1
    UNHOLD HOLDER2
    RETURN_RESTORE ; Returns exactly to the previous state
ENDPROCEDURE

The most important part to highlight is its special termination: RETURN_RESTORE.

This block returns the agent to the exact situation it was in when it was interrupted via SIGNAL/SIGNALNOW.
If it was in an ADVANCE, it resumes with the remaining time properly adjusted.
If it was waiting in a resource queue, its situation is not altered.

Note that if RETURN or ENDPROCEDURE were used, execution would continue to the next line of code. That can be useful if the agent is using active waiting and you want to restart its periodic action timer.

In the example:

We see two agents of both types releasing entities from two HOLDERS in arbitrary ways.
The second one, every 20 entities that complete the route, releases all those trapped.

---

Example:

/*

 Persistent virtual entity. The agent

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
START 100


;===> Resource and position setup
Restroom {NAME:Restroom1, X:337, Y:344}
Restroom {NAME:Restroom2, X:337, Y:258}
Restroom {NAME:Restroom_AGENT2, X:567, Y:104}

POSITION {NAME:ENTRY, X:179, Y:301}
POSITION {NAME:EXIT, X:559, Y:299}

GRAPHIC {NAME:INFO1, TYPE:TEXT, X:335, Y:178, TEXT:"Agent1"}
GRAPHIC {NAME:INFO2, TYPE:TEXT, X:569, Y:62, TEXT:"Agent2"}
INITIAL counter,0



;*****************************************************
;===> Agent initialization
PROCEDURE PRE_RUN
	timeout agent1.main,0
	timeout agent2.main,0
	TERMINATE_VE
ENDPROCEDURE

;*****************************************************
;===> Main flow of entities
GENERATE 15,5 {NAME:GEN1, X:50, Y:300}
ADVANCE 10 {TO:ENTRY}

ASSIGN randomChoice, FLOOR(RANDOM * 2) + 1
IF (P$randomChoice==1)
	MOD {color:#990000}
    ADVANCE 10 {TO:Restroom1}
    REST Restroom1
ELSE
    MOD {color:#999900}
    ADVANCE 10 {TO:Restroom2}
    REST Restroom2
ENDIF



ADVANCE 30,30 {TO:EXIT}

if (D$N %20 == 0)
	SIGNAL agent2.full_release,X$nAgent2
endif

ENDGENERATE 1

;*******************************
procedure agent2.main
    ; Save its unique id as a variable if needed
    SAVEVALUE nAgent2,D$N
    MOVE {NAME:INFO2, TEXT:"Agent 1 active"}

    WHILE (1==1) ; useless if RETURN_RESTORE is always used
        REST Restroom_AGENT2
    ENDWHILE

    TERMINATE_VE ; Will never be reached
ENDPROCEDURE

;*******************************
procedure agent2.full_release
    MOVE {NAME:INFO2, TEXT:"T= AC1$ Agent 2 releasing everything"}
	WAKE Restroom1
	WAKE Restroom2
	RETURN_RESTORE
ENDPROCEDURE

;**********************************


PROCEDURE agent1.main
    ; Save its unique id as a variable if needed
    SAVEVALUE nAgent1,D$N
    MOVE {NAME:INFO1, TEXT:"Agent 2 active"}

    WHILE (1==1)
        ADVANCE 50 ; The agent checks every 50 units

        SAVEVALUE counter, X$counter + 1
        MOVE {NAME:INFO1, TEXT:"Agent: X$counter"}

        IF (X$counter % 3==0)
        	assign toRelease,R$(Restroom1,IN)
            MOVE {NAME:INFO1, TEXT:"Releasing Restroom 1 (P$toRelease OF R$(Restroom1,IN))"}
            WAKE Restroom1
        ENDIF

        IF (X$counter % 5 ==0)
        	assign toRelease,round(R$(Restroom2,IN) * 2 / 3)
            MOVE {NAME:INFO1, TEXT:"Releasing Restroom 2 (P$toRelease OF R$(Restroom2,IN))"}
            WAKE Restroom2,P$toRelease

        ENDIF

    ENDWHILE

    TERMINATE_VE ; Will never be reached
ENDPROCEDURE
;**********************************

In this chapter we explore how an agent can act as an autonomous visual controller that reacts to changes in its environment and produces animated effects. We will see a typical example: an automatic door that opens when it detects entities nearby and closes when nobody is around.

Core idea

The agent is a VE that never ends and repeatedly executes one task: check whether there are entities in a given area (simulated with a QUEUER) and move the door accordingly.

This kind of logic is ideal for animated behaviors, sensors, traffic lights, or any visual object that acts based on its surroundings.

---

Example:

/*

  	Agent as a controller

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

Queuer {NAME:sensor,X:403,Y:575}

POSITION {NAME:POS1,X:265,Y:454}
POSITION {NAME:POS2,X:523,Y:449}
POSITION {NAME:POS3,X:720,Y:450}

Graphic {NAME:Line1,Type:LINE,color:#FF0000, X1:418,Y1:370,X2:413,Y2:383,X3:387,Y3:383,X4:381,Y4:370}
Graphic {NAME:Line2,Type:LINE,color:#FF0000, X1:422,Y1:509,X2:414,Y2:486,X3:387,Y3:486,X4:382,Y4:508}

Graphic {NAME:Text1,Type:TEXT,X:431,Y:262,Text:" "}

initial nAgent,0
START 200

;*****************************************************

PROCEDURE PRE_RUN
	timeout agent.main,0
	TERMINATE_VE
ENDPROCEDURE 1

;*****************************************************
GENERATE 30,50 {NAME:GEN1,X:86,Y:450}

	ADVANCE 20,0 {TO:POS1}
	queue sensor
	ADVANCE 20,0 {TO:POS2}
	depart sensor
	ADVANCE 20,0 {TO:POS3}

ENDGENERATE 1


;*******************************
procedure agent.main
	savevalue nAgent,D$N
    assign users,0
    assign state,100
    assign posY2,GD$(Line1,Y2)
    while (1==1)
    	advance 1
        call agent.moveDoor
    endwhile
    terminate_ve
endprocedure


procedure agent.moveDoor
    IF (R$(sensor,IN)<=0)
    assign state,P$state + 5
    assign state,MIN(100,P$state)
    else
    assign state,P$state -5
    assign state,MAX(10,P$state)
    ENDIF

move {name:Line1,Y2:P$state + P$posY2,Y3:P$state + P$posY2}
;move {name:Text1,TEXT:"p$users P$state | P$posY1"}

endprocedure

This chapter breaks down the combined behavior of the event queue and the context stack inside GPSS-Plus, and how they affect asynchronous behavior with SIGNAL and synchronous behavior with SIGNALNOW.

The event queue

When an entity executes an ADVANCE block, it is placed into the event queue, which is ordered chronologically. If multiple events share the same time, the entity that entered first has priority (FIFO). The queue only stores the execution time, a reference to the entity, and the element type.

The context stack

Each entity has its own private context stack, used to resume execution after jumps such as CALL or FOREACH. This stack is LIFO: the last context pushed is the first popped.

When calling other entities (agents) via SIGNAL or SIGNALNOW, the current execution state is saved on this stack so it can be resumed afterward.

What happens with SIGNAL?

SIGNAL is asynchronous. The sending entity does not stop; it merely schedules the execution of a procedure in another agent. If three SIGNALs are sent in sequence to the same agent, the sender continues immediately, while the receiving agent is scheduled three times in the event queue.

When the agent runs, it executes the pending procedures using its stack. Because the stack is LIFO, execution happens in reverse order, producing results such as: (((0 + 4) * 10) + 2) = 42.

What about SIGNALNOW?

SIGNALNOW is synchronous. It temporarily pauses the calling entity, immediately executes the agent procedure, and then resumes execution. Calls therefore run in the written order, yielding: (((0 + 2) * 10) + 4) = 24.

Example in action

This model defines an agent with three methods (add2, multiply10, add4). Two entities invoke it: one using SIGNAL and the other using SIGNALNOW. On screen, the different results clearly show the behavioral difference.

With SIGNAL, the result remains unchanged at first because the calls have not yet executed. A simple ADVANCE 0 (re-scheduling the entity in the event queue) allows the agent calls to run, after which the result becomes available.

---

Example:

/*

  	SIGNAL vs SIGNALNOW

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

Restroom {NAME:RestroomAgents,X:252,Y:60,visible:1}

POSITION {NAME:POS1,X:552,Y:194}
POSITION {NAME:POS2,X:552,Y:394}

Graphic {NAME:Text1,Type:TEXT,X:313,Y:252,Text:"Entity"}
Graphic {NAME:Text2,Type:TEXT,X:313,Y:232,Text:"Entity"}
Graphic {NAME:Text3,Type:TEXT,X:326,Y:444,Text:"Entity"}
Graphic {NAME:TextAgent,Type:TEXT,X:311,Y:325,Text:"---",color:#ff3333}

initial nAgent,0
START 2

;*****************************************************

PROCEDURE PRE_RUN
	timeout agent.main,0
	TERMINATE_VE
ENDPROCEDURE 1

;*****************************************************
GENERATE 10,0,0,1 {NAME:GEN1,X:100,Y:200}

    assign result,0,X$nAgent
	SIGNAL agent.add2,X$nAgent
	SIGNAL agent.multiply10,X$nAgent
	SIGNAL agent.add4,X$nAgent
	move {name:Text1,TEXT:"SIGNAL Before: P$(result,X$nAgent)"}
    advance 0
	move {name:Text2,TEXT:"SIGNAL Result: P$(result,X$nAgent)"}

	ADVANCE 20,0 {TO:POS1}

ENDGENERATE 1

GENERATE 60,0,0,1 {NAME:GEN2,X:100,Y:400}

	assign result,0,X$nAgent
	SIGNALNOW agent.add2,X$nAgent
	SIGNALNOW agent.multiply10,X$nAgent
	SIGNALNOW agent.add4,X$nAgent
	move {name:Text3,TEXT:"SIGNALNOW Result: P$(result,X$nAgent)"}

	ADVANCE 20,60 {TO:POS2}

ENDGENERATE 1


;*******************************
procedure agent.main
	savevalue nAgent,D$N
    assign result,0
    REST RestroomAgents
    terminate_ve
endprocedure

procedure agent.add2
    assign result,P$result + 2
    	move {name:TextAgent,TEXT:"Result ADD2: P$result T= AC1$"}
    RETURN_RESTORE
endprocedure
procedure agent.add4
    assign result,P$result + 4
    	move {name:TextAgent,TEXT:"Result ADD4: P$result T= AC1$"}
    RETURN_RESTORE
endprocedure
procedure agent.multiply10
    assign result,P$result * 10
    move {name:TextAgent,TEXT:"Result MULTIPLY10: P$result T= AC1$"}
    RETURN_RESTORE
endprocedure

This example shows a model with a complex narrative that becomes natural to express in GPSS-Plus thanks to its primitives for agents, task lists, and event-based synchronization. The simulation represents a simplified restaurant: clients arrive, take a table, place an order, and wait to be served. Cooks (agents) wake up if they were sleeping, take an order from a shared list, and generate dish entities for each task. When all dishes for a client are ready, the client can start eating. All coordination is handled through a shared FIFO task list (using savevalue.push / pop) and a common RESTROOM that regulates sleeping and waking of agents. No SIGNAL, ON_QUEUE, or ON_RELEASE blocks are required, yet the system flows correctly. This model demonstrates how agents can self-manage their workload without external interruptions, simply by polling a shared work queue. Here, the RESTROOM acts as a sleep lock: the first agent to wake up handles the task, while the others continue waiting.

---

Example:

/*

  	 	Message queues

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
START 1000

Facility {NAME:tables,X:221,Y:60,capacity:7}
Restroom {NAME:waitToServe,X:323,Y:60}
Restroom {NAME:sleepingAgents,X:348,Y:357}

POSITION {NAME:EATING, X:579, Y:46}

GRAPHIC {NAME:INFOA_1, TYPE:TEXT, X:149, Y:296, TEXT:"Agent1 ready"}
GRAPHIC {NAME:INFOB_1, TYPE:TEXT, X:147, Y:237, TEXT:"infoB1"}
GRAPHIC {NAME:INFOC_1, TYPE:TEXT, X:147, Y:268, TEXT:"infoC1"}

GRAPHIC {NAME:INFOA_2, TYPE:TEXT, X:577, Y:292, TEXT:"Agent2 ready"}
GRAPHIC {NAME:INFOB_2, TYPE:TEXT, X:576, Y:238, TEXT:"infoB2"}
GRAPHIC {NAME:INFOC_2, TYPE:TEXT, X:576, Y:266, TEXT:"infoC2"}

Graphic {NAME:TextOrder,Type:TEXT,X:270,Y:132,Text:"Order"}
Graphic {NAME:TextA,Type:TEXT,X:271,Y:102,Text:"Not served"}
Graphic {NAME:TextB,Type:TEXT,X:469,Y:84,Text:"Eating"}

;--------------------------------
;		CLIENTS
;--------------------------------
GENERATE 8,5,0,8 {NAME:Clients, X:53, Y:61}
    ADVANCE 3 {TO:tables,FLOW:1}
    seize tables
    call add_order
    rest waitToServe
    ADVANCE 120,30 {FROM:waitToServe,TO:EATING,FLOW:1} ; eating
    release tables
    if (R$(tables,IN)<=0)
	    stop
    endif
ENDGENERATE 1

;**********************************
procedure add_order

    ASSIGN cOven, FLOOR(RANDOM * 4)
    ASSIGN cStove, FLOOR(RANDOM * 6)
    ASSIGN cFryer, FLOOR(RANDOM * 3)

    ASSIGN pendingDishes, P$cOven + P$cStove + P$cFryer

    savevalue.push orders, [1,D$N,P$cOven,P$cStove,P$cFryer]
    MOVE {name:TextOrder,text:"Oven: P$cOven ; Stove: P$cStove ; Fryer: P$cFryer"}

	; wake up kitchen staff, the first to arrive will take the order
    wake sleepingAgents

ENDPROCEDURE

;--------------------------------
;		COOKS / AGENTS
;--------------------------------

PROCEDURE PRE_RUN
	timeout agent.main,0,1
	timeout agent.main,0,2
	TERMINATE_VE
ENDPROCEDURE

procedure agent.main
    if (P$PARAM_A==1)
        savevalue nAgent1,D$N
        assign nAgent,1
    else
        savevalue nAgent2,D$N
        assign nAgent,2
    endif

    MOVE {NAME:"INFOA_P$nAgent", TEXT:"Agent active P$PARAM_A"}
	savevalue orders, []
    assign taskInProgress,0

	WHILE (1==1)
        if (VD$(orders,LENGTH)<=0)
        	MOVE {NAME:"INFOA_P$nAgent", TEXT:"T: AC1$ Cook P$nAgent : SLEEPING...", color:red}
            rest sleepingAgents
        endif
		assign nTasks,VD$(orders,LENGTH)
		MOVE {NAME:"INFOA_P$nAgent", TEXT:"Cook: I have P$nTasks tasks, Awake", color:green}

    	savevalue.pop orders,order
		assign taskInProgress,P$(order.0)
		assign nEntity,P$(order.1)
		assign cOven,P$(order.2)
		assign cStove,P$(order.3)
		assign cFryer,P$(order.4)

		if (P$taskInProgress > 0)
        MOVE {NAME:"INFOB_P$nAgent", TEXT:"Processing client P$nEntity"}
        MOVE {NAME:"INFOC_P$nAgent", TEXT:"Oven: P$cOven ; Stove: P$cStove ; Fryer: P$cFryer"}

		assign counter,0
        while (P$counter

In this chapter we explore how an agent can be responsible for monitoring the passage of entities through a zone of the model and computing global metrics such as total usage time or average residence time. The agent does not act directly on the entities; instead, it listens to events automatically generated by a QUEUER (through its ON_QUEUE and ON_DEPART hooks) and, based on those events, records when entities enter and leave. To do this, the agent maintains a data structure (associative array) where it stores entry times and later computes differences upon exit. This allows full tracking without interfering with the logical flow of the rest of the model. This kind of logic is useful for implementing custom statistics, usage auditing, alerts, or any control that depends on external events and entity history.

---

Example:

/*

  	 	Entity management

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

Restroom {NAME:RestroomAgents,X:100,Y:121,visible:1}
Queuer {NAME:Queuer1,X:321,Y:123,on_queue:Queuer1on_queue,on_depart:Queuer1on_depart}

POSITION {NAME:POS1,X:251,Y:335}
POSITION {NAME:POS2,X:469,Y:341}

Graphic {NAME:Text1,Type:TEXT,X:425,Y:514,Text:"Entity"}
Graphic {NAME:TextAgent1,Type:TEXT,X:433,Y:462,Text:"---"}
Graphic {NAME:TextAgent2,Type:TEXT,X:433,Y:416,Text:"---"}

initial nAgent,0
START 500

;*****************************************************
PROCEDURE PRE_RUN
	timeout agent.main,0
	TERMINATE_VE
ENDPROCEDURE 1

;*****************************************************
GENERATE 10,0 {NAME:GEN1,X:43,Y:300}

	move {name:Text1,TEXT:"Entity result P$(result,X$nAgent) AC1$"}

	ADVANCE 20,0 {TO:POS1}
	queue Queuer1
	ADVANCE 20,60 {TO:POS2}
	depart Queuer1

ENDGENERATE 1

;*******************************
procedure agent.main
	savevalue nAgent,D$N
    assign data,{}
    assign result,0
    assign average,0
    assign nEntities,0
    assign totalTime,0
    while (1==1)
        REST RestroomAgents
    endwhile
    terminate_ve
endprocedure

;**********************************
procedure agent.IN
    assign data.entity_P$PARAM_A,P$PARAM_B
    move {name:TextAgent1,TEXT:"IN Entity P$PARAM_A : Start time: P$(data.entity_P$PARAM_A)"}
    RETURN_RESTORE
endprocedure

;**********************************
procedure agent.OUT
    assign nEntities,P$nEntities + 1
    assign startTime,P$(data.entity_P$PARAM_A)
    assign endTime,P$PARAM_B
    assign totalTime,P$totalTime + P$endTime - P$startTime
    assign average,P$totalTime / P$nEntities
    move {name:TextAgent2,TEXT:"OUT Entity: P$PARAM_A Total time: P$totalTime Average: P$average"}
    ASSIGN.DELETE data,entity_P$PARAM_A
    RETURN_RESTORE
endprocedure

procedure Queuer1on_queue
	SIGNAL agent.IN,X$nAgent,P$ENTITYNUMBER,AC1$
    TERMINATE_VE
endprocedure

procedure Queuer1on_depart
    SIGNAL agent.OUT,X$nAgent,P$ENTITYNUMBER,AC1$
	TERMINATE_VE
endprocedure

In this chapter we present an agent that acts as an intelligent manager of a shared resource: a traffic light (semaphore). The goal is to allow entities to pass from different origins to different destinations, but only one direction at a time, in a controlled manner. This simulates an intersection where the semaphore changes direction periodically, enabling one of four possible paths. General structure: - An INITIAL block defines the tramos table, which contains the configuration for each direction (positions, restrooms, colors, graphics, etc.). - Entities wait in a Restroom if their direction is not currently enabled and proceed when it becomes active. - The semaphoreAgent.main agent: * Switches the current semaphore to yellow and then red. * Selects the next open direction randomly. * Updates colors and on-screen text. * Wakes the entities waiting for the newly opened direction. Key learning: The agent behaves as both a visual and operational scheduler, showing how a permanent control loop can govern multiple entity flows simply by deciding when to allow progress. This pattern is useful for exclusive zones, turn-based access, shared resources, or alternating flows.

---

Example:

/*

  	 	Resource manager

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

INITIAL tramos,  [
    { tiempo: 10, color: "#009900", nInicio: "InicioN", nFin: "FinN", nCentro: "CentroN", nRestroom: "RestroomN", nSemaforo: "SemaforoN", nTexto: "TextN" },
    { tiempo: 20, color: "#FF0099", nInicio: "InicioS", nFin: "FinS", nCentro: "CentroS", nRestroom: "RestroomS", nSemaforo: "SemaforoS", nTexto: "TextS" },
    { tiempo: 30, color: "#000099", nInicio: "InicioE", nFin: "FinE", nCentro: "CentroE", nRestroom: "RestroomE", nSemaforo: "SemaforoE", nTexto: "TextE" },
    { tiempo: 40, color: "#0099FF", nInicio: "InicioO", nFin: "FinO", nCentro: "CentroO", nRestroom: "RestroomO", nSemaforo: "SemaforoO", nTexto: "TextO" }
  ]

POSITION {NAME:InicioN,X:368,Y:541}
POSITION {NAME:InicioS,X:393,Y:30}
POSITION {NAME:InicioE,X:756,Y:270}
POSITION {NAME:InicioO,X:41,Y:269}

POSITION {NAME:FinN,X:398,Y:540}
POSITION {NAME:FinS,X:416,Y:31}
POSITION {NAME:FinE,X:754,Y:298}
POSITION {NAME:FinO,X:40,Y:301}

POSITION {NAME:CentroN,X:381,Y:347}
POSITION {NAME:CentroS,X:393,Y:249}
POSITION {NAME:CentroE,X:447,Y:294}
POSITION {NAME:CentroO,X:325,Y:290}

Graphic {NAME:SemaforoN,TYPE:ARC,X:413,Y:346,FCOLOR:"red",RADIUS:16,START_ANGLE:0,END_ANGLE:360,CLOSE:1}
Graphic {NAME:SemaforoS,TYPE:ARC,X:363,Y:246,FCOLOR:"red",RADIUS:16,START_ANGLE:0,END_ANGLE:360,CLOSE:1}
Graphic {NAME:SemaforoE,TYPE:ARC,X:453,Y:263,FCOLOR:"red",RADIUS:16,START_ANGLE:0,END_ANGLE:360,CLOSE:1}
Graphic {NAME:SemaforoO,TYPE:ARC,X:326,Y:320,FCOLOR:"red",RADIUS:16,START_ANGLE:0,END_ANGLE:360,CLOSE:1}

Restroom {NAME:RestroomN,X:713,Y:570,on_rest:actualiza}
Restroom {NAME:RestroomS,X:713,Y:473,on_rest:actualiza}
Restroom {NAME:RestroomE,X:713,Y:521,on_rest:actualiza}
Restroom {NAME:RestroomO,X:713,Y:422,on_rest:actualiza}

Graphic {NAME:TextN,Type:TEXT,X:412,Y:347,Text:"N",font:"18px",color:#ffffff}
Graphic {NAME:TextS,Type:TEXT,X:363,Y:247,Text:"S",font:"18px",color:#ffffff}
Graphic {NAME:TextE,Type:TEXT,X:453,Y:263,Text:"E",font:"18px",color:#ffffff}
Graphic {NAME:TextO,Type:TEXT,X:326,Y:320,Text:"O",font:"18px",color:#ffffff}

Graphic {NAME:textSem,Type:TEXT,X:165,Y:381,Text:"Semaphore",font:"18px",color:#000000}

START 3000

;----------------------------- MAIN MOVEMENT PROCEDURE
procedure toSemaphore ; P$PARAM_A = origin, P$PARAM_B = destination

ADVANCE X$(tramos.P$(PARAM_A).tiempo),10 {from:X$(tramos.P$(PARAM_A).nInicio), to:X$(tramos.P$PARAM_A.nCentro)}

if (X$openSemaphore!=P$PARAM_A)
    rest X$(tramos.P$(PARAM_A).nRestroom)
endif

ADVANCE 10,3 {to:X$(tramos.P$PARAM_B.nCentro)}
ADVANCE X$(tramos.P$(PARAM_B).tiempo),10 {to:X$(tramos.P$(PARAM_B).nFin)}

endprocedure

;----------------------------- SEMAPHORE AGENT
procedure semaphoreAgent.main

savevalue openSemaphore,0

while (1==1)
    savevalue prevOpenSemaphore, X$openSemaphore
    move {name:X$(tramos.X$(openSemaphore).nSemaforo),FCOLOR:yellow}

    savevalue openSemaphore,-1
    advance 50

    call calculateDestination,X$prevOpenSemaphore

    move {name:X$(tramos.X$(prevOpenSemaphore).nSemaforo),FCOLOR:red}
    savevalue openSemaphore,P$calculateDestination
    move {name:textSem,text:"Open semaphore: X$openSemaphore"}

    move {name:X$(tramos.X$(openSemaphore).nSemaforo),FCOLOR:green}
    wake X$(tramos.X$(openSemaphore).nRestroom)

    advance 200
endwhile

endprocedure

;----------------------------- DESTINATION SELECTION PROCEDURE
procedure calculateDestination ; P$PARAM_A origin
assign tmp, (P$PARAM_A + 1 + floor(random*3)) % 4
endprocedure P$tmp

;----------------------------- UI UPDATE PROCEDURE
procedure actualiza

move {name:X$(tramos.0.nTexto),text:"R$(X$(tramos.0.nRestroom),IN)"}
move {name:X$(tramos.1.nTexto),text:"R$(X$(tramos.1.nRestroom),IN)"}
move {name:X$(tramos.2.nTexto),text:"R$(X$(tramos.2.nRestroom),IN)"}
move {name:X$(tramos.3.nTexto),text:"R$(X$(tramos.3.nRestroom),IN)"}

terminate

endprocedure

;----------------------------- ENTITY GENERATOR
GENERATE 10,5 {NAME:GEN,X:577,Y:575,ERADIO:10}

assign origin,floor(random*4)
mod {color:X$(tramos.P$origin.color)}

call calculateDestination,P$origin
call toSemaphore,P$origin,P$calculateDestination

ENDGENERATE 1

;----------------------------- AGENT STARTUP
PROCEDURE PRE_RUN
    TIMEOUT semaphoreAgent.main, 0
    TERMINATE_VE
ENDPROCEDURE

In a discrete-event simulation engine, an entity is usually a single execution thread: a sequential flow that advances, blocks, and resumes according to the model. This works, but it does not fully match real behavior in many situations. A person waiting at a bus stop does not just wait: they breathe, check their phone, think, get distracted, and may change their mind. A moving vehicle also acts in parallel: it consumes energy, wears down, receives signals, and adjusts its route. Modeling all of this with a single linear flow is an excessive simplification. Component entities: simultaneity inside the entity We therefore extend the way we think about an entity so that it can have several functions running in parallel. A component entity is a virtual entity that executes a function on behalf of another main entity. Its existence depends on the main entity, but it has its own execution flow. This allows a main entity to have multiple active behaviors simultaneously, each represented by an independent component entity. Key characteristics: - The component entity is created when the main entity is created. - It runs its logic in parallel, without blocking the main flow. - It can read and modify attributes of the main entity. - It can wake it, change its state, or trigger decisions. - It automatically ends when the main entity ceases to exist. It is not a “child” in an OOP sense, nor an object or a property. It is a living behavior, modeled as an entity. The event queue remains strictly sequential, but the entity is no longer monolithic: it no longer represents a single flow, but a small system composed of several cooperating entities that model the main entity more deeply. This makes it possible to model natural simultaneity phenomena without threads, semaphores, or external programming. Lifecycle of a component entity: 1. The main entity is created. 2. A component entity is immediately created, receiving the main entity’s identifier. 3. The component entity runs its logic in a WHILE loop as long as D$(EXIST, mainEntityId) == 1. 4. It may influence the main entity by assigning values, modifying state, or waking it. 5. When the main entity disappears, the component entity automatically terminates. In the example, people arrive at a simplified bus stop. When more than six accumulate, everyone leaves while they are resting outside the event queue. Meanwhile, the entities are also checking their phones, and some may decide to leave urgently. When a component entity decides the queue must be abandoned, it executes the required actions while the main entity is still sleeping in the RESTROOM.

---

Example:

/*

Component

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
;SYSTEM {TYPE:OPTIONS,Speed:8}

Restroom {NAME:Restroom_bus,X:333,Y:282}
POSITION {NAME:URGENT_EXIT,X:335,Y:119}
POSITION {NAME:EXIT,X:615,Y:286,type:terminate,title:end}

Graphic {NAME:textAgent,Type:TEXT,X:494,Y:336,Text:"Group"}
Graphic {NAME:Text2,Type:TEXT,X:331,Y:76,Text:"Urgency"}

START 500
;*****************************************************
PROCEDURE PRE_RUN
	timeout check_queue,1
	TERMINATE_VE
ENDPROCEDURE

;*****************************************************
GENERATE 10,0,0,0 {NAME:GEN1,X:61,Y:288}

ASSIGN urgentExit,0
timeout component_check_phone,0,D$N
ADVANCE 20,0 {TO:Restroom_bus}
REST Restroom_bus

if (P$urgentExit == 1)
ADVANCE 20,10 {TO:URGENT_EXIT}
else
ADVANCE 20,10 {TO:EXIT}
endif
ENDGENERATE 1

;*******************************
procedure check_queue
    while (1==1)
        advance 5
        if (R$(Restroom_bus,OCCUPIED) > 5)
        move {name:textAgent,text:"Releasing [AC1: AC1$]"}
        WAKE Restroom_bus ; all leave
        endif
    endwhile
endprocedure
;**********************************

procedure component_check_phone
	assign myEntity,P$PARAM_A
    while (D$(EXIST,P$myEntity)==1)
        advance 5
        if (R$(Restroom_bus,IS_OCCUPIED_BY,P$myEntity) == 1 && RANDOM < 0.02)
        move {name:Text2,text:"Releasing entity P$myEntity [AC1: AC1$]"}
        assign urgentExit,1,P$myEntity
        mod {number:P$myEntity, color:red}
        WAKE Restroom_bus,-1,P$myEntity ; only this entity leaves
        endif
    endwhile
    terminate_ve
endprocedure
;**********************************

Before starting with contexts, we must take into account a specific characteristic of GPSS-Plus. In general, drag-and-drop based engines allow resources to be easily placed on the canvas and immediately used. In GPSS-Plus this works differently: the resource must be defined by writing its command. On the other hand, this drag-and-drop approach makes runtime resource creation very difficult. In GPSS-Plus this is solved by simply replacing the FACILITY command with the NEWFACILITY block. The only requirement is that the resource must exist before being used, which is why this is typically done in PRE_RUN.

---

Example:

/*

Contexts and modules. Dynamic creation 1


*/
SYSTEM {TYPE:OPTIONS, SPEED:5}
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
Position {NAME:pos_exit,X:581,Y:407}

; --- Facility defined in the classic way ---
FACILITY {NAME:resource_static, CAPACITY:1,  X:496, Y:164}

START 200

PROCEDURE PRE_RUN
    ; Create a second dynamic facility at startup
    NEWFACILITY {NAME:resource_dynamic, CAPACITY:1,  X:300, Y:400}
    TERMINATE_VE
ENDPROCEDURE

;------------------------------------------------------
; --- Entity flow ---
GENERATE 10,0 {NAME:GEN1}     ; one entity every 10 ticks
advance 15 {to:resource_static}

SEIZE resource_static
ADVANCE 15
RELEASE resource_static

advance 15 {to:resource_dynamic}

SEIZE resource_dynamic
ADVANCE 17
RELEASE resource_dynamic

advance 15 {to:pos_exit}

TERMINATE 1

Now that we know resources can be created at runtime, let’s look at their most obvious use: creating many of them using an iterator. We only need to keep track of the names assigned in order to use them later. In GPSS-Plus, resource names are real strings, which means they can be dynamically constructed and directly used in SEIZE, RELEASE, R$(), and similar commands.

---

Example:

SYSTEM {TYPE:OPTIONS, SPEED:5}
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
Position {NAME:POS1,X:147,Y:311}
Position {NAME:POS2,X:542,Y:327}
Position {NAME:POS3,X:756,Y:322}


Graphic {NAME:Text1,Type:TEXT,X:305,Y:571,Text:"Hello"}

; --- Facility defined in the classic way ---
FACILITY {NAME:f_static, CAPACITY:4, X:657, Y:325,color:blue}

START 200

PROCEDURE PRE_RUN
    ; Create a second dynamic facility at startup
	assign t,0

    while (P$t < 5)
        assign t,P$t+1
        assign pos_y,(P$t * 80 + 20)
        assign nombre,"f_dynamic_P$t"
        NEWFACILITY {NAME:P$nombre, CAPACITY:1, X:300, Y:(P$pos_y)}
        NEWPOSITION {NAME:pos_P$nombre, X:200, Y:(P$pos_y)}
    endwhile

    TERMINATE_VE
ENDPROCEDURE

;------------------------------------------------------
; --- Entity flow ---
GENERATE 6,0 {NAME:GEN1,x:58,y:310}

advance 15,0 {to:POS1,flow:1}

ASSIGN MINKEY,0
ASSIGN MINVAL,100000

assign t,0
while (P$t < 5)
    assign t,P$t+1
    assign nombre,"f_dynamic_P$t"
    if (R$(P$nombre,QUEUE) < P$MINVAL)
        ASSIGN MINKEY,P$t
		ASSIGN MINVAL,R$(P$nombre,QUEUE)
    endif
endwhile

assign siguiente_recurso,"f_dynamic_P$MINKEY"

move {name:Text1,text:"Entity D$N query: P$(siguiente_recurso) Queue: R$(P$siguiente_recurso,QUEUE)"}




advance 15,0 {to:"pos_P$siguiente_recurso",flow:1,DECISION:"inicio"}
advance 15,0 {to:"P$siguiente_recurso",flow:1}


SEIZE P$siguiente_recurso
ADVANCE 25,15
RELEASE P$siguiente_recurso

advance 15 {to:POS2,flow:1,MERGE:"salida"}

advance 15 {to:f_static,flow:1}

SEIZE f_static
ADVANCE 7,8
RELEASE f_static

advance 15 {to:POS3,flow:1}

TERMINATE 1

And finally, they can also be created if the need arises.

You just need to keep in mind that a resource cannot be modified once it is created; it can only be blocked with the LOCK block.

---

Example:

/*

Contexts and modules. Dynamic creation 3


*/
SYSTEM {TYPE:OPTIONS, SPEED:5}
Position {NAME:pos_exit,X:581,Y:407}

; --- Facility defined in the classic way ---
FACILITY {NAME:resource_static, CAPACITY:1,  X:496, Y:164}

START 200


;------------------------------------------------------
; --- Entity flow ---
GENERATE 10,0 {NAME:GEN1}
advance 15 {to:resource_static}

SEIZE resource_static
ADVANCE 15
RELEASE resource_static

if (R$(resource_dynamic,EXIST)==0)
	NEWFACILITY {NAME:resource_dynamic, CAPACITY:1,  X:300, Y:400}
endif

advance 15 {to:resource_dynamic}

SEIZE resource_dynamic
ADVANCE 17
RELEASE resource_dynamic

advance 15 {to:pos_exit}

TERMINATE 1

By now you have probably realized what it can mean to build logic that simulates an entire workshop.
And we can go crazy if we are told there are two workshops. And then 10.

It seems that we should give up at that point, but no — that is exactly what GPSS-Plus contexts are for.
They are not classes, because in a discrete-event environment that concept does not really make sense, but we will see that they are very similar. They are more like a namespace, and everything becomes much simpler.

Let’s imagine a more trivial case: a graphic showing the level of a tank.
We draw the lines, colors and text, and then we want to reuse it.
That is where the problems begin: that object, class, drawing, element — whatever you want to call it — has its parameters so deeply embedded that it becomes overwhelming to work with.
And not only that: if we have two tanks, the work is not just double; we must also be very careful not to overwrite variables and to create as many LINE elements as needed.

This is the problem we are going to solve.

By analogy, it may look like classes with methods, local variables and instantiation, but it is not. It will be solved with a simple string-type variable.

Until now, to move a graphic we could do:

CALL grafico_set,75

And if our procedure was correct, it would redraw a given graphic to show that 75% fill level.
Graphics that we previously had to create.

Now we are going to do it differently, in such a way that everything we are about to see can be moved to another file that no longer gets in our way, and call it using INCLUDE.

First step: create a descriptive method

If our object is a tank, we will create a procedure called:

PROCEDURE deposito.init

This procedure will normally be invoked by an EV from PRE_RUN / CALL, and it will be responsible for creating all the graphics — instead of using GRAPHIC commands, it will use NEWGRAPHIC blocks.

Like all calls, it can receive parameters to be executed, for example:

call deposito.init, 20, 130,120, 100,"Carga","#ff0000"

…where deposito.init is the procedure and the rest are: width, height, X, Y, name and color. It can also be done more conveniently by defining an object with all the characteristics beforehand.

And with this we can start drawing our tank based on those parameters:

NEWGRAPHIC { NAME:TextoNivel, GROUP:Deposito, TYPE:TEXT, X:0, Y:0, TEXT:"Level: 0% ", COLOR:#000000 }

And so on with everything we want to add to our graphic.

Then we only need to add some methods to manage it:

PROCEDURE deposito.move
    MOVE {NAME:Deposito, x:P$PARAM_A, y:P$PARAM_B}
ENDPROCEDURE

With this we will have a graphic… but only one!

That is the problem.

The solution comes from something we mentioned regarding the separator point in the procedure name.

To call this procedure init or locate, we can call it in as many ways as instances we want:

CALL aaa.deposito.init, 20, 130,120, 100,"Carga","#ff0000"
CALL bbb.deposito.init, 20, 80,420, 100,"Nivel","#ffff00"
CALL ccc.deposito.init, 20, 180,320, 100,"Nivel","#ff00ff"
...
CALL aaa.deposito.locate,100,200
CALL bbb.deposito.locate,200,100
CALL ccc.deposito.locate,300,200

What we do is add another separator point to the instance name of that object.

And from here we must introduce the critical point: the value of the context string CX$

Calling a procedure "aaa.deposito.locate" means that:

1. The real name of the procedure is "deposito.locate"
2. The context (CX$) is the string "aaa"

And this must be very clear and always kept in mind.

When an entity enters a PROCEDURE whose call is made with separator points, the activity will be executed under that CX$ value.

And this is enough to avoid overwriting variables or resources between instances.

For example:

SAVEVALUE CX$_altura , 100

…will actually create:

SAVEVALUE aaa_altura , 100

Or:

NEWGRAPHIC {NAME:CX$_Deposito, TYPE:GROUP, X:0, Y:0}

…will really be:

NEWGRAPHIC {NAME:aaa_Deposito, TYPE:GROUP, X:0, Y:0}

Therefore, as many SAVEVALUE, ASSIGN, NEWGRAPHIC, NEWRESTROOM elements will be generated as there are ways to call the init of each class.

So we only need to rename our internal ASSIGNs, SAVEVALUEs and NAMEs… prefixing them with "CX$_".
And when we want to access those same parameters, we must do so using parentheses, again avoiding unwanted nesting.

For example:

savevalue CX$_ALTO, 100

…is retrieved with the SNA:

X$(CX$_ALTO)

And with this, we will be able to create and move as many tank instances as we want

All this material is placed in a separate file and included from the main program using include.

Summary of key concepts of this technique:

The dot separation in a CALL of the form aaa.bbb.ccc is interpreted as follows:

- The context (CX$) is "aaa"

- The real name of the executed procedure is bbb.ccc

- CX$ is a key SNA that represents the current call context and can be used to build dynamic names.

- Variables (ASSIGN or SAVEVALUE) are overwritten if they are not inside the context. Always use:

ASSIGN CX$_name, value

…to avoid collisions between instances.

- If the method needs to return a value (like a "get"), you can do:

CALL aaa.bbb.get

…and then obtain the return with:

P$(get)

- All internal SAVEVALUEs should use CX$_ to be private to each instance.
Example:

SAVEVALUE CX$_estado, 1

IMPORTANT: EVs created with SIGNAL or TIMEOUT die when the procedure finishes, and their ASSIGNs disappear.
Only CALL uses a real entity that keeps its variables.

- For consistency and encapsulation, everything that is used from outside a "class" should be accessed through its methods:

CALL instance.object.method,...

…and not by directly accessing the internal names of graphics, variables or resources.

In the example:

There are two files: the main one and a library called ./library_graphics/tank.lib.

You can view the code by opening it from the "OPEN" menu.

The most interesting part is that the library is configured from the main program in PRE_RUN:

assign config,{title:"deposito"
        ,x:100,y:100
        ,width:50 ,height:180
        ,value:88
        ,"color":"#ff0000"}

call aaa.tank.init,V$config

And then used directly from the program with CALL:

CALL aaa.tank.set, 10

CALL aaa.tank.get
MOVE {NAME:Text1, TEXT:"Current value aaa: P$(get)"}

---

Example:

/*

Contexts and modules. Graphic libraries


*/

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
Graphic {NAME:Text1,Type:TEXT,X:100,Y:319,Text:"Current value"}
Graphic {NAME:Text2,Type:TEXT,X:300,Y:312,Text:"Current value"}

START 100

include ./library_graphics/tank.lib

;-----------------------------------------------------------
; We instantiate two tanks with different parameters
; Each one is generated in its own context: aaa and bbb
; The procedures will be the same, but data and graphics will be independent
PROCEDURE PRE_RUN
	assign config,{title:"tank"
    		,x:100,y:100
            ,width:50 ,height:180
            ,value:88
            ,max_value:100
            ,"color":"#ff0000"}
	call aaa.tank.init,V$config

	assign config2,{title:"tank"
    		,x:300,y:100
            ,width:50 ,height:180
            ,value:88
            ,max_value:100
            ,"color":"#ff00ff"}

	call bbb.tank.init,V$config2

	TERMINATE_VE
ENDPROCEDURE


;============================================================
GENERATE 25,0 {NAME:Gen1,x:100,y:400}


CALL aaa.tank.set, 25
CALL bbb.tank.set, 35
ADVANCE 5

CALL aaa.tank.set, 52
CALL bbb.tank.setcolor, "blue"
ADVANCE 5

CALL aaa.tank.get
MOVE {NAME:Text1, TEXT:"Current value aaa: P$(get)"}

CALL bbb.tank.get
MOVE {NAME:Text2, TEXT:"Current value bbb: P$(get)"}

CALL aaa.tank.set, 75
CALL bbb.tank.set, 10
ADVANCE 5
CALL aaa.tank.set, 90
ADVANCE 5

CALL aaa.tank.set, 10
ADVANCE 5

ENDGENERATE 1

We have already seen contexts CX$, which—very roughly—are a special assign of type string used so that variable names do not collide, and which is inherited from caller to callee. That is, if we do TIMEOUT, the VE that executes the PROCEDURE will do so with the same CX$ value as the one that called it.

It can also be set with the CX BLOCK:

CX "sevilla"

And from that point on, the SNA CX$ will have that value.

Now that we know how to create graphic elements with NEWGRAPHIC passing the context, let’s see how to create a complete module with the same system.

A module is a set of GENERATEs, NEWFACILITYs, PROCEDUREs... that would work on their own, normally under a context, and that usually contain at least one GENERATE. All of this goes into a single file that we will call with the ".mod" extension.

The most distinctive thing about these modules is that they are used with an INCLUDE, and the parameters will affect what is in the block area, but not what is a GENERATE because it is the BLOCK/COMMAND that is not exactly a BLOCK, but is also a program point that creates entities and is the safe place to send an entity with SCAPE or UNLOAD.

So it makes no sense to do something like:

GENERATE {name: CX$_gen,x:100,y:200}

because a virtual entity is not going to pass through it to create the GENERATE, nor will it be able to perform a NEWGENERATE.

This is what a GENERATE looks like inside a module:

GENERATE 0,0,0,0 {name:hub,visible:0,x:700,y:100}
    advance 10,30 {from: hub , to:"CX$_posicion"}
ENDGENERATE
;-------------------------------------------
PROCEDURE hub.init
;... resource creation
ENDPROCEDURE

When INCLUDE is executed, the only thing that happens is that this file becomes part of the general code. The GPSS-Plus code texts are concatenated as-is.

So the code will now have a new GENERATE called "hub", which can be the landing point for any entity that arrives via SCAPE or UNLOAD. The important thing is that those entities land with the correct CX$.

For this reason, a module without a GENERATE cannot receive entities from outside, so it cannot work as an autonomous subsystem. In this example, "hub" is the reference to the program point.

In short, what we will normally have in a module is one or several GENERATEs that will process entities coming from other contexts or modules, or from the main program, with access to resources under that same context.

In the example we will see a basic system.

From the main GENERATE, entities branch out to end up in a set of resources that, as a whole, are a module called "plantaReciclaje".

This module has, in addition to an ".init" similar to the initialization of any library with NewGraphic, NewFacility... the GENERATE so that entities can reach it from the main program through SCAPE:

scape plantaReciclaje {cx:"plantaA"}

And it will make each entity arrive at the "plantaReciclaje" generate with an empty return-address stack but all assigns intact and the context value set.

generate 0,0,0,0 {name:plantaReciclaje,visible:0}
    call procesar
    terminate 1
endgenerate

procedure procesar
    advance 10,10 {to:CX$_pos_in}
    advance 10,10 {to:CX$_fac1}
    seize CX$_fac1
    advance 10,10
    release CX$_fac1
    advance 10,10 {to:CX$_pos_out}
endprocedure

 In a way, it is somewhat like the classic "GOTO" instruction, but where the jump is only allowed to a safe program point, which is the GENERATE.



---

Example:

/*

Contexts and modules. Simple module


*/
SYSTEM {TYPE:OPTIONS, SPEED:5}
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
Position {NAME:POS1,X:147,Y:311}

START 200

include "./manual_es/Season_07_Contextos_y_modulos/modulo.mod"

PROCEDURE PRE_RUN

	assign config,{title:"Plant_A"
    		,x:350,y:500
            }
	CALL plantaA.plantaReciclaje.init,V$config

	assign config,{title:"Plant B"
    		,x:350,y:100
            }
	CALL plantaB.plantaReciclaje.init,V$config

    TERMINATE_VE
ENDPROCEDURE

;------------------------------------------------------
; --- Entity flow ---
GENERATE 6,0 {NAME:GEN1,x:58,y:310}

advance 15,0 {to:POS1}

if (RANDOM > 0.5)
scape plantaReciclaje {cx:"plantaA"}
else
scape plantaReciclaje {cx:"plantaB"}
endif

TERMINATE 1

Let’s look at an example of a logistics control system.

Each module is loaded through an INCLUDE that specializes in a specific responsibility.

A JSON containing data for several cities will be the starting point to create the sets of resources in a way analogous to what we have already seen.

Packages are generated at each punto_distribucion and stored in a RESTROOM specific to that point.

A van travels through the distribution points, loading packages into its BACKPACK from the corresponding RESTROOM. BACKPACKs and RESTROOMs are compatible with each other; it is not possible to place entities from any other resource into a backpack.

The van unloads all entities at the safe GENERATE point called hub_distribucion, which is responsible for classifying the packages into different RESTROOMs. After that, the van loads each already-classified sack and makes the route again, delivering the packages to their destination.

In the end, this is a small example—about 150 lines of code—to implement something that appears complex.



---

Example:

SYSTEM {TYPE:OPTIONS, SPEED:5}
SYSTEM {TYPE:VISUAL,  WIDTH:900,HEIGHT:600}
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

START 1

include ./logistica/namespace.mod
include ./logistica/punto_distribucion.mod
include ./logistica/hub_distribucion.mod
include ./logistica/transportes.mod

PROCEDURE PRE_RUN
	CALL crear_puntos_de_distribucion
    CALL hub_distribucion.init
    TERMINATE_VE
ENDPROCEDURE

;------------------------------------------------------
procedure crear_puntos_de_distribucion


    FOREACH ciudad, IN_OBJECT, V$(aCiudades)
        assign datosCiudad, V$(aCiudades.P$ciudad)

        assign config,{
    		title:"P$(ciudad)"
    		,x:P$(datosCiudad.x)
            ,y:P$(datosCiudad.y)
            }
	call P$ciudad.punto_distribucion.init,V$config

    ENDFOREACH
endprocedure

An advanced and complex concept as the system grows is rehydration.

Rehydration means loading the system state not from the beginning, but from a later point in time, rebuilding the simulation exactly as it was at that instant.
In the logistics example this is fundamental: it is not the same to “start simulating packages” as it is to load the real state from an ERP and continue the simulation from there.

In this approach, the modeler becomes responsible for storing everything they want to be able to restore later.



This process implies solving three deep problems:



1. The global simulated time (AC1) must advance to the saved instant.
2. Entities must reschedule their internal times, which must always be later than the new AC1.
3. The way of modeling changes radically: it is no longer enough to describe processes; now you must reconstruct them.

At this stage, more than modeling, we are programming. Rehydration is a technical problem, not a declarative one.

In the example:

So suppose what we have stored is that 4 trucks were looping around a circuit with 4 positions. The last saved data are:

• System time: 105
• Truck 1: it went through phase F3 and would arrive at its destination at 110
• Truck 2: it went through phase F1 and would arrive at its destination at 108
• Truck 3: it went through phase F3 and would arrive at its destination at 109
• Truck 4: it went through phase F2 and would arrive at its destination at 109

To rebuild (rehydrate) this state we need to solve the three problems above.

1. Advance global time

The FORWARD_AC1 block allows moving the simulated clock forward.
Typically you place it as the first instruction of PRE_RUN, so the model starts directly at the desired instant.

2. Reschedule entity times

Once AC1 has advanced, all entities must have times after the new AC1.
This is achieved with UPDATE, which reschedules the end of an ADVANCE. In this case, we also provide the start time so that visualization begins where it left off.

The only condition is critical:

UPDATE must be executed by a VE when the entity is already inside an ADVANCE.
That is why rehydration requires a small temporal choreography: first we put it into the corresponding queue and then we update its times through an immediate TIMEOUT.

3. Rebuild the program point

This is the most complex problem.
If there were a GOTO, it would be trivial: we would jump to the exact point where each entity was.
But it does not exist, and it must not exist.

The correct solution is:

Create a local finite-state machine (FSM) for each entity.

The FSM state represents which point in the program the entity was at when the system was saved.
The model logic is rewritten so that each entity advances according to its state.

This turns the program flow into an explicit automaton, perfectly restorable.



4. The key detail: every entity always ends up in a queue

In a DES engine, the “last state” of an entity is always one of these:

• The event chain, if it is in an ADVANCE.
• A resource queue, if it is in a SEIZE.
• An explicit queue, if it is waiting.

Therefore:



The FSM states must correspond to these queues.



We do not need to reconstruct internal queues or manipulate hidden structures:
it is enough to reinsert entities at the correct program point, and the engine rebuilds the rest automatically.



---

Example:

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

POSITION {NAME:Pos1,X:368,Y:429}
POSITION {NAME:Pos2,X:634,Y:452}
POSITION {NAME:Pos3,X:592,Y:164}
POSITION {NAME:Pos4,X:343,Y:217}

initial fsm_camion_logic, {
    STATES: [
        "F1", "F2", "F3", "F4"
    ],

    TRANSITIONS: [
        {FROM:"F1", INPUT:"tick", TO:"F2"},
        {FROM:"F2", INPUT:"tick", TO:"F3"},
        {FROM:"F3", INPUT:"tick", TO:"F4"},
        {FROM:"F4", INPUT:"tick", TO:"F1"}
    ],

    INITIAL: "F1"
}

FSM {NAME:FSM_CAMION, LOCAL:1, LOGIC:V$(fsm_camion_logic)}
FACILITY {NAME:Fac1,X:633,Y:385}
Graphic {NAME:Text1,Type:TEXT,X:324,Y:100}

START 100
;-------------------------------
PROCEDURE PRE_RUN
  FORWARD_AC1 105
    assign params,{status:"F2",tiempoIni:90,tiempo:110,matricula:"1111"}
	new GEN1,0,V$params
    assign params,{status:"F3",tiempoIni:88,tiempo:108,matricula:"2222"}
	new GEN1,0,V$params
    assign params,{status:"F2",tiempoIni:89,tiempo:109,matricula:"3333"}
	new GEN1,0,V$params
    assign params,{status:"F2",tiempoIni:104,tiempo:124,matricula:"4444"}
	new GEN1,0,V$params
	TERMINATE_VE
ENDPROCEDURE

;-------------------------------
PROCEDURE camion_update
	; PARAM_A -> Numero entidad
	; PARAM_B -> tiempo final
	; PARAM_C -> tiempo inicial
	move {name:Text1,text:"camion_update P$(FSM_CAMION,P$PARAM_A) P$PARAM_C"}
    if (D$(IN_ADVANCE,P$PARAM_A)==1)
    	update P$PARAM_A, P$PARAM_B, P$PARAM_C
    endif
    TERMINATE_VE
endprocedure 1
;-------------------------------

GENERATE 0,0,0,0 {NAME:GEN1,X:62,Y:396}
    assign params,V$PARAM_A
    assign FSM_CAMION,"P$(params.status)"
    mod {subtitle:"P$(params.matricula)"}
    ; debe ser una VE y que se ejecute una vez hayan arrancado los advance.
    timeout camion_update,0,D$N,P$(params.tiempo),P$(params.tiempoIni)

   ; move {name:Text1,text:"Camión inicializado P$PARAM_C R$(FSM_CAMION,STATE) P$FSM_CAMION"}
	while (1==1)
    	STATE FSM_CAMION,"tick"

    	switch "R$(FSM_CAMION,STATE)"
	    case ==,"F1"
	        advance 20 {from:Pos4, to:Pos1}
        endcase
	    case ==,"F2"
        	 advance 20 {from:Pos1, to:Pos2}
        endcase
	    case ==,"F3"
            seize Fac1
  	        advance 40 {from:Pos2, to:Pos3}
            release Fac1
        endcase
	    case ==,"F4"
	        advance 20 {from:Pos3, to:Pos4}
        endcase

        endswitch
    endwhile

endgenerate 1
;-------------------------------

Simulation and statistics go hand in hand. We can do very little if some basic concepts are not clear. In GPSS-Plus, statistical calculations are divided into three major groups:

1. Times an entity remains in a resource (entity-oriented).

2. Times a number of entities occupy a resource (resource-oriented).

3. Any other custom data you want to measure (model-oriented).

In this first example, we work with case 3, where we want to measure the time an entity remains in a section of the circuit, including a resource (a FACILITY) and its surrounding area.

Using TABLE to record residence times:

GPSS-Plus automates much of the work. You only need to create a TABLE with the appropriate parameters:

TABLE {name: TABLA1, E_BIN_START:0, E_BIN_SIZE:1, E_BIN_COUNT:100, EXPRESSION:(AC1$ - P$TIEMPOINICIO)}

This configures a table with 100 bins of width 1, starting at 0. Each time TABULATE TABLA1 is executed, the EXPRESSION is evaluated:

(AC1$ - P$TIEMPOINICIO)

which computes the difference between the current time (AC1$) and a previously stored instant (P$TIEMPOINICIO).

This value, representing the entity’s residence time within the modeled zone, is accumulated in the corresponding bin.

A basic example

We create entities that move FROM ONE POINT, pass through a FACILITY, and reach ANOTHER POINT, then tabulate the duration:

GENERATE 8,3
    ADVANCE 30,0 {TO:POS1}
    ASSIGN TIEMPOINICIO,AC1$      ; Start timing
    ADVANCE 20,0 {TO:VENTANILLA1}

    SEIZE VENTANILLA1
    ADVANCE 20,20                 ; +20 to +40 (random) + queue time
    RELEASE VENTANILLA1

    ADVANCE 20,0 {TO:POS2}
    TABULATE TABLA1               ; End timing
    ADVANCE 20,0 {TO:POS3}

ENDGENERATE

What does the table measure?

If you inspect the report output, you will see a rectangular (uniform) distribution between 60 and 80, with some higher values for entities that spent time waiting in the queue. That is, all entities remained within that expected range.

This is a solid starting point for analyzing internal model behavior using objective data.

---

Example:

/*

  	 	Accumulating data in tables

*/
FACILITY {NAME:VENTANILLA1,X:380,Y:348,capacity:4}
POSITION {NAME:POS1,X:218,Y:437}
POSITION {NAME:POS2,X:591,Y:429}
POSITION {NAME:POS3,X:713,Y:329}

Graphic {NAME:Line1,Type:LINE,color:#FF0000, X1:218,Y1:500,X2:592,Y2:500}
Graphic {NAME:Text1,Type:TEXT,X:410,Y:527,Text:"Statistics section"}

TABLE {name: TABLA1,E_BIN_START:50,E_BIN_SIZE:1,E_BIN_COUNT:60,EXPRESSION:(AC1$ - P$TIEMPOINICIO)}
;TABLE {name: TABLA1,E_BIN_START:0,E_BIN_SIZE:1,E_BIN_COUNT:160,EXPRESSION:(AC1$ - D$M0)}

START 500

;***************************************************************

GENERATE 8,3 {NAME:GEN1,X:66,Y:350}

    ADVANCE 40,0 {TO:POS1}
    ASSIGN TIEMPOINICIO,AC1$
    ADVANCE 20,0 {TO:VENTANILLA1}

    SEIZE VENTANILLA1
    ADVANCE 20,20
    RELEASE VENTANILLA1

    ADVANCE 20,0 {TO:POS2}
    TABULATE TABLA1
    ADVANCE 20,0 {TO:POS3}

ENDGENERATE 1

;***************************************************************

We now move on to statistics focused on the time entities spend in a resource.

Statistics calculated on a single resource are computed automatically by GPSS-Plus:

Facility {NAME:ventanilla1,X:377,Y:362,capacity:10
     ,E_BIN_START:18,E_BIN_SIZE:1,E_BIN_COUNT:14
     }

We measure the time that an entity (E) remains in the resource using the E_BIN_* parameters, which have the same meaning as in the TABLE block.

In the following example, entities are generated at a constant rate, and the FACILITY contains an ADVANCE 20,10, meaning the statistical results will fall between 20 and 30.

---

Example:

/*

  	 	Entity time

*/
SYSTEM {TYPE:OPTIONS,Speed:7}
POSITION {NAME:POS1,X:620,Y:360}
Facility {NAME:ventanilla1,X:377,Y:362,capacity:10,E_BIN_START:18,E_BIN_SIZE:1,E_BIN_COUNT:14}
START 200

;*****************************************************
GENERATE 8,0,0,0 {NAME:GEN1,X:111,Y:366}
ADVANCE 10 {TO:ventanilla1}

seize ventanilla1
ADVANCE 20,10
release ventanilla1

ADVANCE 10 {TO:POS1}
TERMINATE 1

We now move on to statistics focused on the usage of a resource, that is, how much time it has been occupied by one or more entities.

If previously we measured the time an entity (E) remains in the resource using the E_BIN_* parameters, now, to observe how busy the resource has been at each moment, we use R_BIN_*.

The table created with R_BIN_* indicates, for each occupancy level (0, 1, 2, ...), how long the resource has been exactly at that level of usage.

In the following example, entities are generated at a constant rate, and the FACILITY tends to have between 4 and 6 units occupied, which will appear as a peak in that range in the automatically generated chart.

Of course, nothing prevents you from using both E_BIN_* and R_BIN_* on the same resource if you want a view from both perspectives: the entity’s and the resource’s.



---

Example:

/*

  	 	Resource usage

*/
SYSTEM {TYPE:OPTIONS,Speed:7}
POSITION {NAME:POS1,X:620,Y:360}
Facility {NAME:ventanilla1,X:377,Y:362,capacity:10,R_BIN_START:0,R_BIN_SIZE:1,R_BIN_COUNT:11}
START 200

;*****************************************************
GENERATE 5,3,0,0 {NAME:GEN1,X:111,Y:366}
ADVANCE 10 {TO:ventanilla1}

seize ventanilla1
ADVANCE 20,10
release ventanilla1

ADVANCE 10 {TO:POS1}
ENDGENERATE 1

Queues can also be analyzed statistically. In GPSS-Plus, they behave exactly like resources, but they are managed separately through specific structures called QUEUER.

To enable statistics collection, it is enough to wrap access to the resource with QUEUE and DEPART:

queue Qventanilla1
seize ventanilla1
depart Qventanilla1

This enables the automatic calculation of:

• The number of entities in the queue over time (R_BIN_*)

• The waiting time each entity spends in the queue (E_BIN_*)

In the report, you can visualize graphically how the queue behaved: when it formed, how long entities waited, and whether the resource sizing was sufficient.

The following example shows a FACILITY with frequent queues. By applying QUEUE/DEPART, the system captures all the statistics with no additional code.





---

Example:

/*

  	 	Queues

*/
SYSTEM {TYPE:OPTIONS,Speed:7}
POSITION {NAME:POS1,X:620,Y:360}

QUEUER {NAME:Qventanilla1,X:374,Y:424
	,R_BIN_START:0,R_BIN_SIZE:1,R_BIN_COUNT:20
    ,E_BIN_START:0,E_BIN_SIZE:1,E_BIN_COUNT:20
    }

Facility {NAME:ventanilla1,X:373,Y:365,capacity:5}
START 200

;*****************************************************
GENERATE 5,3,0,0 {NAME:GEN1,X:111,Y:366}
ADVANCE 10 {TO:ventanilla1}

queue Qventanilla1
seize ventanilla1
depart Qventanilla1
ADVANCE 20,10
release ventanilla1

ADVANCE 10 {TO:POS1}
ENDGENERATE 1

STORAGE resources are a special type of resource. Unlike FACILITY, which manage entities individually, a STORAGE manages variable quantities that an entity can put in or take out.

For example, an entity can represent a truck that drops 10 units into a depot. Therefore, the system does not analyze how many entities went through the storage, but how many units were stored and for how long.

What is measured?

Two types of statistics are collected:

• EQ_BIN_*: Time each unit remains in storage (occupancy time per unit).

• RQ_BIN_*: Storage occupancy level at each moment (by quantity).

This behavior is enabled the same way as with other resources, but using the EQ_BIN_* and RQ_BIN_* parameters to configure the table intervals.

A practical example

The following code shows a storage (STORAGE) with a capacity of 14 units. Incoming entities occupy a random amount (between 1 and 5 units). The resulting statistics will indicate how long those units stayed stored and how the storage occupancy level varied over time:

STORAGE {NAME:almacen1,X:377,Y:362,capacity:14,
         EQ_BIN_START:18,EQ_BIN_SIZE:1,EQ_BIN_COUNT:14,
         RQ_BIN_START:0, RQ_BIN_SIZE:1, RQ_BIN_COUNT:18}

GENERATE 8,0,0,0
    ADVANCE 10 {TO:almacen1}
    ENTER almacen1,(RANDOM*5)+1
    ADVANCE 20,10
    LEAVE almacen1
    ADVANCE 10 {TO:pos1}
ENDGENERATE 1

What to look at?

In the report, you will see two different tables:

• One with the ranges of time per stored unit (EQ), which tells you whether units stayed for a short or long time in the storage.

• Another with the storage occupancy levels (RQ), where you can see how many units were simultaneously present at each moment.

This type of analysis is essential in logistics, inventory, or any system with variable storage.





---

Example:

/*

  	 	Storages

*/
SYSTEM {TYPE:OPTIONS,Speed:7}
POSITION {NAME:POS1,X:620,Y:360}
STORAGE {NAME:almacen1,X:377,Y:362,capacity:14
	,EQ_BIN_START:18,EQ_BIN_SIZE:1,EQ_BIN_COUNT:14
    ,RQ_BIN_START:0,RQ_BIN_SIZE:1,RQ_BIN_COUNT:18
    }
START 200

;*****************************************************
GENERATE 8,0,0,0 {NAME:GEN1,X:111,Y:366}
ADVANCE 10 {TO:almacen1}

ENTER almacen1,(RANDOM*5)+1
ADVANCE 20,10
LEAVE almacen1

ADVANCE 10 {TO:POS1}
ENDGENERATE 1

In GPSS-Plus, statistics are accumulated automatically if tables are defined with the appropriate parameters. There are several types of statistics, classified by what is being measured:

Entity-based statistics (E_BIN_*)

They measure how long each entity has remained in a resource.

• Applicable to: All resources (FACILITY, STORAGE, QUEUE, etc.)

• Example: An entity spends 40 time units → 1 is added to bin 40.

Resource-based statistics (R_BIN_*)

They measure how long a resource has had a specific number of active entities.

• Applicable to: All resources

• Example: The resource has 3 entities for 10 time units → 10 is added to bin 3.

Statistics per stored unit (EQ_BIN_*)

They measure how long each unit remains inside a STORAGE.

• Applicable to: Only STORAGE

• Example: A truck with 5 units stays 40 time units → 5 is added to bin 40.

Statistics by storage quantity (RQ_BIN_*)

They measure how long a STORAGE contains a certain total quantity of units.

• Applicable to: Only STORAGE

• Example: 3 units for 10 time units → 30 is added to bin 3.

Queues (QUEUER)

Queues have their own statistics table if a QUEUER is declared. To collect data:

queue Queue1
seize Resource1
depart Queue1
ADVANCE ...
release Resource1

You can apply:

• E_BIN_*: Time each entity spent in the queue.

• R_BIN_*: Time the queue had X entities waiting.

Full customization: TABLE + TABULATE

To record arbitrary data:

TABLE {name:TABLA1, E_BIN_START:0, E_BIN_SIZE:1, E_BIN_COUNT:100, EXPRESSION:(AC1$ - P$TIEMPOINICIO)}
TABULATE TABLA1

This allows you to measure anything defined by a mathematical expression.







What is a function?

A function is a component that produces a numeric value from an input. That value can represent times, quantities, costs, or any other variable parameter we want to incorporate into the model.

In mathematical terms, we could write something like:

f(x) = 10 + (x * 5)

If x takes values between 0 and 1, then f(x) will take values between 10 and 15.

In GPSS-Plus, when we use:

ADVANCE 10,5

we are using that implicit function: it generates a random value between 0 and 1, multiplies it, and resolves a value between 10 and 15.

In statistical terms, this is a uniform distribution between 10 and 15, meaning that all values within the range have the same probability of occurring.

Using functions:

In many cases, reality is not uniform.

If we measure how long 1000 vehicles take to travel 100 km, most will take close to 1 hour. Some will take a bit less, others a bit more. But almost none will do it in 30 minutes or in 2 hours.

That is not a uniform distribution. It is what is known as a normal distribution or Gaussian.

That is why GPSS-Plus allows defining functions that more accurately model behaviors like these. There are two ways to do it:

1. FUNCTION of type VALUES

With this method, we manually define a function based on a cumulative probability table.

Function {
  NAME: funValues,
  TYPE: "VALUES",
  EXPRESSION: "RANDOM",
  VALUES: "0.0001,0.0000/0.0002,0.0101/.../1.0000,1.0000/"
}

This table associates keys (cumulative probabilities between 0 and 1 using EXPRESSION: "RANDOM") with result values. If the generated random value is 0.33, the function finds the corresponding interval and returns the associated value, representing a bell-shaped (Gaussian) distribution, where extreme values are less likely than central ones.

So an instruction like:

ADVANCE 20 + (FN$funValues * 20)

will generate values between 20 and 40, concentrated around 30.

2. FUNCTION of type GAUSS

This method allows defining a Gaussian distribution directly through its characteristic parameters:

Function {
  NAME: funGauss,
  TYPE: "GAUSS",
  A: 1,
  B: 30,
  SIGMA1: 3.3,
  SIGMA2: 3.3,
  INTERVALS: 100
}

• A: curve height (visual only, does not affect the result)
• B: central value (mean)
• SIGMA1, SIGMA2: left and right standard deviations
• INTERVALS: number of divisions for the function

With this function, we simply use:

ADVANCE FN$funGauss

Both techniques will produce a distribution of times around the value 30, but using different methods: a predefined table versus an automatically constructed curve.

Visualization and validation

Facilities with parameters such as:

E_BIN_START:16, E_BIN_SIZE:1, E_BIN_COUNT:40

automatically record statistics about how long each entity has remained in the resource. These statistics are shown in the report and allow checking how the function actually behaves.

We will see that, in both cases, the resulting graph is a Gaussian distribution. This allows validating that both the manual table and the generated function provide coherent behaviors.

---

Example:

/*

  	 	Defining functions

*/
SYSTEM {TYPE:OPTIONS,Speed:5}

Facility {NAME:VENTANILLA1,X:165,Y:184,E_BIN_start:16,E_BIN_SIZE:1,E_BIN_COUNT:40,capacity:3}

Facility {NAME:VENTANILLA2,X:384,Y:186,E_BIN_start:16,E_BIN_SIZE:1,E_BIN_COUNT:40,capacity:3}


POSITION {NAME:POS1,X:278,Y:381}
POSITION {NAME:POS2,X:482,Y:380}

Function {name:funGauss, type:"GAUSS", a:1, b:30, sigma1:3.3, sigma2:3.3,intervals:100 }

Function {NAME:funValues,type:"VALUES",expression:"RANDOM",VALUES:"
0.0001,0.0000/0.0002,0.0101/0.0004,0.0202/0.0006,0.0303/0.0008,0.0404/
0.0011,0.0505/0.0015,0.0606/0.0020,0.0707/0.0025,0.0808/0.0032,0.0909/
0.0039,0.1010/0.0049,0.1111/0.0060,0.1212/0.0073,0.1313/0.0088,0.1414/
0.0106,0.1515/0.0128,0.1616/0.0152,0.1717/0.0180,0.1818/0.0213,0.1919/
0.0250,0.2020/0.0293,0.2121/0.0341,0.2222/0.0396,0.2323/0.0458,0.2424/
0.0527,0.2525/0.0603,0.2626/0.0689,0.2727/0.0783,0.2828/0.0887,0.2929/
0.1000,0.3030/0.1124,0.3131/0.1258,0.3232/0.1403,0.3333/0.1559,0.3434/
0.1726,0.3535/0.1904,0.3636/0.2093,0.3737/0.2292,0.3838/0.2501,0.3939/
0.2720,0.4040/0.2948,0.4141/0.3185,0.4242/0.3429,0.4343/0.3680,0.4444/
0.3937,0.4545/0.4199,0.4646/0.4464,0.4747/0.4731,0.4848/0.5000,0.4949/
0.5269,0.5051/0.5536,0.5152/0.5801,0.5253/0.6063,0.5354/0.6320,0.5455/
0.6571,0.5556/0.6815,0.5657/0.7052,0.5758/0.7280,0.5859/0.7499,0.5960/
0.7708,0.6061/0.7907,0.6162/0.8096,0.6263/0.8274,0.6364/0.8441,0.6465/
0.8597,0.6566/0.8742,0.6667/0.8876,0.6768/0.9000,0.6869/0.9113,0.6970/
0.9217,0.7071/0.9311,0.7172/0.9397,0.7273/0.9473,0.7374/0.9542,0.7475/
0.9604,0.7576/0.9659,0.7677/0.9707,0.7778/0.9750,0.7879/0.9787,0.7980/
0.9820,0.8081/0.9848,0.8182/0.9872,0.8283/0.9894,0.8384/0.9912,0.8485/
0.9927,0.8586/0.9940,0.8687/0.9951,0.8788/0.9961,0.8889/0.9968,0.8990/
0.9975,0.9091/0.9980,0.9192/0.9985,0.9293/0.9989,0.9394/0.9992,0.9495/
0.9994,0.9596/0.9996,0.9697/0.9998,0.9798/0.9999,0.9899/1.0000,1.0000/
"}

START 500


;*****************************************************
GENERATE 10,0,0,0 {NAME:GEN1,X:91,Y:383}

ADVANCE 20,4 {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE 20  + (FN$funValues * 20) ; classic definition
RELEASE VENTANILLA1
ADVANCE 20,0 {TO:POS1}

ADVANCE 20,0 {TO:VENTANILLA2}

SEIZE VENTANILLA2
ADVANCE FN$funGauss ; parameter-based definition
;ADVANCE 2 ; parameter-based definition
RELEASE VENTANILLA2
ADVANCE 20,0 {TO:POS2}

ENDGENERATE 1

The FUNCTION command allows you to define functions that return numeric values, either through direct calculations or through precomputed distribution tables. These functions are used to simulate variable and realistic behavior in operations such as ADVANCE, ASSIGN, TABULATE, etc., and they represent times, quantities, costs, probabilities, and more.

In GPSS-Plus, functions can be classified into two broad groups:



1. Functions based on statistical distributions (with a value table)

These functions pre-generate an internal table with a configurable number of points (intervals) and interpolate the result over it. They are ideal for representing random behavior with known patterns. Available types are:

• GAUSS: Normal distribution (Gaussian bell curve).

• EXP: Decreasing exponential distribution.

• UNIFORM: Uniform (rectangular) distribution.

• TRIANGULAR: Triangular distribution.

• LOGNORMAL: Log-normal distribution, right-skewed.

• FDISTRIBUTION: Lets you define a custom distribution function using a mathematical formula.



2. Direct-calculation functions (no table)

These functions evaluate the result directly, without generating or consulting a table. They are more flexible when you want to work with formulas or with discrete event-count models. They include:

• POISSON: Generates a random integer according to a Poisson distribution (number of events per interval).

• MATH: Directly evaluates a mathematical expression. It accepts multiple parameters that are substituted by letters (A, B, C, etc.) in order.

---

Example:

Function {name:funGauss, type:"GAUSS", a:1, b:30, sigma1:3.3, sigma2:3.3,intervals:100 }

Function {name:funExp, type:"EXP", b:0, lambda:0.15, intervals:100}

Function {name:funUni, type:"UNIFORM", min:20, max:40, intervals:100}

Function {name:funTri, type:"TRIANGULAR", min:20, max:40, mode:30, intervals:100}

Function {name:funLog, type:"LOGNORMAL", mu:3.4, sigma:0.3, intervals:100}
Function {name:funLog2, type:"LOGNORMAL", b:30, spread:5, intervals:100}

Function {name:funCus, type:"FDISTRIBUTION", function:"A * Math.sin(B * x)", a:10, b:0.5, min:0, max:10, intervals:100}


Function {name:funPoi, type:"POISSON", lambda:3.5}

Function {Name:math1, type: math, EXPRESSION:"A * 2 + B"}

The Gaussian (or normal) distribution represents a bell-shaped curve, where the most likely values are near a central value and extremes are less likely. It is ideal for modeling natural phenomena such as service times, measurement errors, or process durations, where most cases cluster around a mean.

Parameters:

• a: Curve height (visualization only; it does not affect the calculation).
• b: Central value or expected mean of the process.
• sigma1: Spread (standard deviation) to the left of the center.
• sigma2: Spread to the right of the center. It can differ from sigma1 to create asymmetry.
• intervals: Number of segments used to divide the curve. The higher the number, the more precise.

By construction, the distribution will take values approximately between b - sigma1 * 3 and b + sigma2 * 3.

This example shows how three service windows with different Gaussian functions produce different distributions of service times:

ADVANCE FN$gfun1 ; symmetric
ADVANCE FN$gfun2 ; right spread
ADVANCE FN$gfun3 ; left spread





---

Example:

/*

  	 	Gauss

*/
SYSTEM {TYPE:OPTIONS,Speed:5}

Facility {NAME:VENTANILLA1,X:165,Y:184,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA2,X:343,Y:185,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA3,X:535,Y:183,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}


POSITION {NAME:POS1,X:250,Y:381}
POSITION {NAME:POS2,X:423,Y:383}
POSITION {NAME:POS3,X:566,Y:384}

Function {name:gfun1, TYPE:GAUSS, a:1, b:50, sigma1:3.3, sigma2:3.3,intervals:100 }
Function {name:gfun2, TYPE:GAUSS, a:1, b:50, sigma1:1.0, sigma2:10.0,intervals:100 }
Function {name:gfun3, TYPE:GAUSS, a:1, b:50, sigma1:10.0, sigma2:1.0,intervals:100 }


START 500


;*****************************************************
GENERATE 10,0,0,0 {NAME:GEN1,X:91,Y:383}

ADVANCE 20,4 {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE FN$gfun1
RELEASE VENTANILLA1
ADVANCE 20,0 {TO:POS1}

ADVANCE 20,0 {TO:VENTANILLA2}

SEIZE VENTANILLA2
ADVANCE FN$gfun2
RELEASE VENTANILLA2
ADVANCE 20,0 {TO:POS2}

ADVANCE 20,0 {TO:VENTANILLA3}

SEIZE VENTANILLA3
ADVANCE FN$gfun3
RELEASE VENTANILLA3
ADVANCE 20,0 {TO:POS3}


ENDGENERATE 1

The exponential distribution is used to model events that occur randomly but with a decreasing probability over time. It is ideal for situations such as waiting times, system failures, or random arrivals where something is most likely to occur early, and becomes less likely the longer it takes.

A classic example: "If you are waiting to be served, it is more likely to happen soon; and each additional minute reduces that probability."

This is not well represented by a uniform distribution (such as ADVANCE 10,5), but it is by an exponential function, defined with the type:

Function {name:efun1, type:"EXP", a:100, b:20, lambda:0.3, intervals:100}

Parameters

• a: Curve height (visual only; it does not affect the calculation).

• b: Base minimum value. This is the point from which the distribution starts.

• lambda: Decay rate. The higher the lambda, the faster the decay.

• intervals: Number of segments into which the curve is divided (the more, the more precise).

Approximately, 99.9% of the values will lie within the range:

• λ = 1 → from b to b + 6.91

• λ = 0.5 → from b to b + 13.82

• λ = 2 → from b to b + 3.45

Comparative usage example:

Function {Name:efun1, type:"EXP", a:100, b:20, lambda:0.3, intervals:70}
Function {Name:efun2, type:"EXP", a:100, b:20, lambda:0.6, intervals:70}
Function {Name:efun3, type:"EXP", a:100, b:20, lambda:1.0, intervals:70}

ADVANCE FN$efun1 ; slow decay
ADVANCE FN$efun2 ; medium decay
ADVANCE FN$efun3 ; fast decay



---

Example:

/*

  	 	Exponential

*/
SYSTEM {TYPE:OPTIONS, Speed:5}

;=== Facilities with statistical tracking ===
Facility {NAME:VENTANILLA1,X:165,Y:184,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA2,X:343,Y:185,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA3,X:535,Y:183,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

;=== Final positions for visualization ===
POSITION {NAME:POS1, X:250, Y:381}
POSITION {NAME:POS2, X:423, Y:383}
POSITION {NAME:POS3, X:566, Y:384}

;=== EFunctions with different decay rates ===
Function {Name:efun1, TYPE:EXP, a:100, b:20, Lambda:0.3, Intervals:70}
Function {Name:efun2, TYPE:EXP, a:100, b:20, Lambda:0.6, Intervals:70}
Function {Name:efun3, TYPE:EXP, a:100, b:20, Lambda:1.0, Intervals:70}

;=== Simulation start ===
START 500

;=== Entity flow through the three service windows ===
GENERATE 10,0,0,0 {NAME:GEN1, X:91, Y:383}

; WINDOW 1 – Slow decay
ADVANCE 20,4 {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE FN$efun1
RELEASE VENTANILLA1
ADVANCE 20,0 {TO:POS1}

; WINDOW 2 – Medium decay
ADVANCE 20,0 {TO:VENTANILLA2}
SEIZE VENTANILLA2
ADVANCE FN$efun2
RELEASE VENTANILLA2
ADVANCE 20,0 {TO:POS2}

; WINDOW 3 – Fast decay
ADVANCE 20,0 {TO:VENTANILLA3}
SEIZE VENTANILLA3
ADVANCE FN$efun3
RELEASE VENTANILLA3
ADVANCE 20,0 {TO:POS3}

ENDGENERATE 1

What is the log-normal distribution?

A variable follows a log-normal distribution if the logarithm of that variable has a normal distribution. In other words:

“Many small events occur frequently, but it is also possible for some events with very large values to appear, although with low probability.”

Typical cases:

• Machine repair time.

• Duration of a phone call.

• Income (most people earn little, a few earn a lot).

Function {Name:lfunc1, Type:LOGNORMAL, b:30, sigma:0.1}

Parameters:

• b: The function’s most likely value (the peak of the curve).
• sigma: Controls the spread of values to the right. The larger the sigma, the wider the distribution’s “tail”.

GPSS-Plus automatically converts these values into the mathematical parameters μ (log-mean) and σ (standard deviation) to build the log-normal curve.

Unlike the Gaussian, the log-normal is not symmetric. It has a long “tail” toward higher values. This behavior matches well with phenomena where extreme values are rare, but possible.

This example shows three log-normal functions with the same curve type, but different dispersion.

Function {Name:lfunc1, Type:LOGNORMAL, b:30, sigma:0.1}   ; narrow curve
Function {Name:lfunc2, Type:LOGNORMAL, b:20, sigma:0.15}  ; medium dispersion
Function {Name:lfunc3, Type:LOGNORMAL, b:40, sigma:0.2}   ; long tail



---

Example:

/*

  	 	Log-normal

*/
SYSTEM {TYPE:OPTIONS, Speed:5}

Facility {NAME:VENTANILLA1,X:165,Y:184,E_BIN_start:0,E_BIN_SIZE:1,E_BIN_COUNT:100,capacity:10}

Facility {NAME:VENTANILLA2,X:343,Y:185,E_BIN_start:0,E_BIN_SIZE:1,E_BIN_COUNT:100,capacity:10}

Facility {NAME:VENTANILLA3,X:535,Y:183,E_BIN_start:0,E_BIN_SIZE:1,E_BIN_COUNT:100,capacity:10}

POSITION {NAME:POS1, X:250, Y:381}
POSITION {NAME:POS2, X:423, Y:383}
POSITION {NAME:POS3, X:566, Y:384}

Function {Name:lfunc1, Type: LOGNORMAL, b:30, sigma:0.1}
Function {Name:lfunc2, Type: LOGNORMAL, b:20, sigma:0.15}
Function {Name:lfunc3, Type: LOGNORMAL, b:40, sigma:0.2}


START 500

GENERATE 10,0,0,0 {NAME:GEN1, X:91, Y:383}

; WINDOW 1 – Small dispersion
ADVANCE 20,4 {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE FN$lfunc1
RELEASE VENTANILLA1
ADVANCE 20,0 {TO:POS1}

; WINDOW 2 – Medium dispersion
ADVANCE 20,0 {TO:VENTANILLA2}
SEIZE VENTANILLA2
ADVANCE FN$lfunc2
RELEASE VENTANILLA2
ADVANCE 20,0 {TO:POS2}

; WINDOW 3 – Large dispersion (long tail)
ADVANCE 20,0 {TO:VENTANILLA3}
SEIZE VENTANILLA3
ADVANCE FN$lfunc3
RELEASE VENTANILLA3
ADVANCE 20,0 {TO:POS3}

ENDGENERATE 1

The uniform distribution represents maximum uncertainty: all values within a range have exactly the same probability.

"It’s like rolling a perfect die: no number is more likely than another."

This type of distribution is useful when there is no reason to believe some values are more likely than others.

Parameters

Function {Name:ufun1, TYPE:UNIFORM, Min:20, Max:40}

• Min: minimum value the function can take.

• Max: maximum value the function can take.

All values between Min and Max have the same probability.

In the report chart, the curve has the shape of a flat rectangle. The wider the range, the more spread out the distribution will be.

This example compares three uniform distributions with different ranges. All have a rectangular shape, but differ in width and position:

Function {Name:ufun1, TYPE:UNIFORM, Min:20, Max:40}   ; Small range
Function {Name:ufun2, TYPE:UNIFORM, Min:20, Max:60}   ; Wide range
Function {Name:ufun3, TYPE:UNIFORM, Min:30, Max:50}   ; Shifted range



---

Example:

/*

  	 	Uniforme

*/
SYSTEM {TYPE:OPTIONS, Speed:5}

Facility {NAME:VENTANILLA1,X:165,Y:184,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA2,X:343,Y:185,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA3,X:535,Y:183,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

POSITION {NAME:POS1, X:250, Y:381}
POSITION {NAME:POS2, X:423, Y:383}
POSITION {NAME:POS3, X:566, Y:384}

Function {Name:ufun1, TYPE:UNIFORM, Min:20, Max:40}
Function {Name:ufun2, TYPE:UNIFORM, Min:20, Max:60}
Function {Name:ufun3, TYPE:UNIFORM, Min:30, Max:50}

START 500

GENERATE 10,0,0,0 {NAME:GEN1, X:91, Y:383}

; WINDOW 1 – Uniform from 20 to 40
ADVANCE 20,4 {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE FN$ufun1
RELEASE VENTANILLA1
ADVANCE 20,0 {TO:POS1}

; WINDOW 2 – Uniform from 20 to 60
ADVANCE 20,0 {TO:VENTANILLA2}
SEIZE VENTANILLA2
ADVANCE FN$ufun2
RELEASE VENTANILLA2
ADVANCE 20,0 {TO:POS2}

; WINDOW 3 – Uniform from 30 to 50
ADVANCE 20,0 {TO:VENTANILLA3}
SEIZE VENTANILLA3
ADVANCE FN$ufun3
RELEASE VENTANILLA3
ADVANCE 20,0 {TO:POS3}

TERMINATE 1

The triangular distribution lets you define a value’s minimum, maximum, and most likely (mode). It has a triangular shape, where the mode is the most frequent value and the extremes are less likely.

It’s useful when you have an approximate idea of how a process behaves, but not enough data to justify a more complex distribution.

“A delivery usually takes 3 days, but it could take 2 or 5.”

That kind of uncertainty is ideal for a triangular distribution.

Parameters

Function {Name:tfun1, TYPE:TRIANGULAR, Min:20, Max:40, Mode:30}



• Min: Minimum possible value.
• Max: Maximum possible value.
• Mode: Most likely value (peak of the distribution).

This example compares three triangular functions with different peak positions. All share the same range, but produce different distributions:



Function {Name:tfun1, TYPE:TRIANGULAR, Min:20, Max:40, Mode:30} ; Centered peak
Function {Name:tfun2, TYPE:TRIANGULAR, Min:20, Max:40, Mode:25} ; Left-skewed peak
Function {Name:tfun3, TYPE:TRIANGULAR, Min:20, Max:40, Mode:35} ; Right-skewed peak



---

Example:

/*

  	 	Triangular

*/
SYSTEM {TYPE:OPTIONS, Speed:5}

Facility {NAME:VENTANILLA1,X:165,Y:184,E_BIN_start:0,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA2,X:343,Y:185,E_BIN_start:0,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

Facility {NAME:VENTANILLA3,X:535,Y:183,E_BIN_start:0,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:10}

POSITION {NAME:POS1, X:250, Y:381}
POSITION {NAME:POS2, X:423, Y:383}
POSITION {NAME:POS3, X:566, Y:384}

Function {Name:tfun1, TYPE:TRIANGULAR, Min:20, Max:40, Mode:30}
Function {Name:tfun2, TYPE:TRIANGULAR, Min:20, Max:40, Mode:25}
Function {Name:tfun3, TYPE:TRIANGULAR, Min:20, Max:40, Mode:35}

START 500

GENERATE 10,0,0,0 {NAME:GEN1, X:91, Y:383}

; WINDOW 1 – Centered triangle
ADVANCE 20,4 {TO:VENTANILLA1}
SEIZE VENTANILLA1
ADVANCE FN$tfun1
RELEASE VENTANILLA1
ADVANCE 20,0 {TO:POS1}

; WINDOW 2 – Triangle with the peak to the left
ADVANCE 20,0 {TO:VENTANILLA2}
SEIZE VENTANILLA2
ADVANCE FN$tfun2
RELEASE VENTANILLA2
ADVANCE 20,0 {TO:POS2}

; WINDOW 3 – Triangle with the peak to the right
ADVANCE 20,0 {TO:VENTANILLA3}
SEIZE VENTANILLA3
ADVANCE FN$tfun3
RELEASE VENTANILLA3
ADVANCE 20,0 {TO:POS3}

ENDGENERATE 1

The Poisson distribution models the number of events that occur in a fixed time interval, provided that:

• Events occur independently.

• The average rate of occurrence (λ) is constant.



When should you use Poisson?



• Number of calls per minute in a call center.

• Customer arrivals to a store.

• Manufacturing defects per day.

Parameter:

λ (lambda): the expected mean number of events per interval.

For example, if λ = 3, on average there will be 3 events per unit of time, although there can be 2, 4, 0, etc. The variability is part of the distribution.



Relationship with the exponential distribution

• Poisson counts how many events occur.

• Exponential measures the time between events.



Both are controlled by the same parameter λ, and they are complementary:

Poisson(λ):    Number of events per interval    λ
Exponential(λ):  Time between consecutive events    1 / λ

What does this example show?

A visual comparison of both distributions for 3 different values of λ:

Function {Name:fPoisson1, TYPE:POISSON, LAMBDA:X$LAMBDA1}
Function {Name:fPoisson2, TYPE:POISSON, LAMBDA:X$LAMBDA2}
Function {Name:fPoisson3, TYPE:POISSON, LAMBDA:X$LAMBDA3}

Function {Name:fexp1, TYPE:EXP, LAMBDA:X$LAMBDA1, b:0}
Function {Name:fexp2, TYPE:EXP, LAMBDA:X$LAMBDA2, b:0}
Function {Name:fexp3, TYPE:EXP, LAMBDA:X$LAMBDA3, b:0}

The results are shown as dynamic text using the running mean:

Converges to λ = 3.0 → Mean ≈ 3.0
Converges to λ = 0.25 → Mean ≈ 0.25

Exp = 1 / λ = 0.333 → Mean ≈ 0.333

This simulation helps you see how:

• Poisson stabilizes the event count toward λ.

• Exponential stabilizes the time between events toward 1 / λ.











---

Example:

/*

  	 	Poisson

*/
SYSTEM {TYPE:OPTIONS,Speed:5}

Graphic {NAME:pText1,Type:TEXT,X:309,Y:281,Text:"Mean1"}
Graphic {NAME:pText2,Type:TEXT,X:309,Y:238,Text:"Mean2"}
Graphic {NAME:pText3,Type:TEXT,X:308,Y:198,Text:"Mean3"}

Graphic {NAME:eText1,Type:TEXT,X:506,Y:280,Text:"Exp1"}
Graphic {NAME:eText2,Type:TEXT,X:506,Y:238,Text:"Exp2"}
Graphic {NAME:eText3,Type:TEXT,X:504,Y:196,Text:"Exp3"}



POSITION {NAME:POS1,X:598,Y:395}
INITIAL contador,0

INITIAL LAMBDA1,1/4
INITIAL iLAMBDA1,round(1/X$LAMBDA1,3)
INITIAL pTotal1,0
INITIAL eTotal1,0

INITIAL LAMBDA2,3/4
INITIAL iLAMBDA2,round(1/X$LAMBDA2,3)
INITIAL pTotal2,0
INITIAL eTotal2,0

INITIAL LAMBDA3,3
INITIAL iLAMBDA3,round(1/X$LAMBDA3,3)
INITIAL pTotal3,0
INITIAL eTotal3,0



Function {Name:fPoisson1, TYPE:POISSON, LAMBDA:X$LAMBDA1}
Function {Name:fPoisson2, TYPE:POISSON, LAMBDA:X$LAMBDA2}
Function {Name:fPoisson3, TYPE:POISSON, LAMBDA:X$LAMBDA3}

Function {Name:fexp1, TYPE:EXP, LAMBDA:X$LAMBDA1, b:0}
Function {Name:fexp2, TYPE:EXP, LAMBDA:X$LAMBDA2, b:0}
Function {Name:fexp3, TYPE:EXP, LAMBDA:X$LAMBDA3, b:0}

START 2000

;*****************************************************
GENERATE 2,0,0,0 {NAME:GEN1,X:218,Y:395}

SAVEVALUE contador,X$contador + 1

; --- Accumulation Poisson ---
SAVEVALUE pTotal1,X$pTotal1 + FN$fPoisson1
SAVEVALUE pMedia1, X$pTotal1 / X$contador
SAVEVALUE pMediaRound1, round(X$pMedia1,3)

SAVEVALUE pTotal2,X$pTotal2 + FN$fPoisson2
SAVEVALUE pMedia2, X$pTotal2 / X$contador
SAVEVALUE pMediaRound2, round(X$pMedia2,3)

SAVEVALUE pTotal3,X$pTotal3 + FN$fPoisson3
SAVEVALUE pMedia3, X$pTotal3 / X$contador
SAVEVALUE pMediaRound3, round(X$pMedia3,3)

; --- Accumulation Exponential ---

SAVEVALUE eTotal1,X$eTotal1 + FN$fexp1
SAVEVALUE eMedia1, X$eTotal1 / X$contador
SAVEVALUE eMediaRound1, round(X$eMedia1,3)

SAVEVALUE eTotal2,X$eTotal2 + FN$fexp2
SAVEVALUE eMedia2, X$eTotal2 / X$contador
SAVEVALUE eMediaRound2, round(X$eMedia2,3)

SAVEVALUE eTotal3,X$eTotal3 + FN$fexp3
SAVEVALUE eMedia3, X$eTotal3 / X$contador
SAVEVALUE eMediaRound3, round(X$eMedia3,3)


move {name:pText1,text:"Converges to Lambda = X$LAMBDA1  -->  X$pMediaRound1"}
move {name:pText2,text:"Converges to Lambda = X$LAMBDA2  -->  X$pMediaRound2"}
move {name:pText3,text:"Converges to Lambda = X$LAMBDA3  -->  X$pMediaRound3"}

move {name:eText1,text:"Exp = 1/X$LAMBDA1 = X$iLAMBDA1 -->  X$eMediaRound1"}
move {name:eText2,text:"Exp = 1/X$LAMBDA2 = X$iLAMBDA2 -->  X$eMediaRound2"}
move {name:eText3,text:"Exp = 1/X$LAMBDA3 = X$iLAMBDA3 -->  X$eMediaRound3"}


ADVANCE 30,10 {TO:POS1}


ENDGENERATE 1

Custom distributions

The FDISTRIBUTION type lets you define fully customized distribution functions using a mathematical expression, without being limited to predefined formulas such as GAUSS, EXP or TRIANGULAR.

These functions internally generate a distribution table by evaluating a mathematical expression over a given range. This is ideal for representing non-standard distributions or variants of the classic ones.



How does it work?

GPSS-Plus builds a distribution table based on:

• A mathematical expression that defines the shape of the function (a bell, a triangle, etc.)

• A value range (min, max) over which that function is evaluated

• A number of intervals that determines the table resolution

• Optional parameters (A, B, C...) that you can use inside the formula

Once the table is built, the function behaves like any other distribution: a random value is drawn, the table is consulted, and the corresponding result is returned.

Syntax:

Function {
  Name: name,
  Type: FDISTRIBUTION,
  Expression: "formula",
  min: minValue,
  max: maxValue,
  intervals: count,
  A: value, B: value, ...
}

Example 1: Custom Gaussian distribution

Function {
  Name:gauss1,
  Type: FDISTRIBUTION,
  EXPRESSION: "(1 / (A * SQRT(2 * PI))) * EXP(-0.5 * ((X - B) / A)^2)",
  A: 2.3,
  B: 30,
  min: B - (3 * A),
  max: B + (3 * A),
  intervals: 100
}

This example creates a bell-shaped function centered at 30, with dispersion 2.3. It is equivalent to a classic Gaussian, but fully configurable.

Example 2: Triangular distribution defined by formula

Function {
  Name:tri1,
  Type: FDISTRIBUTION,
  EXPRESSION: "(1 / C) * (1 - ABS((X - B) / (C / 2)))",
  B: 25, C: 30,
  min: B - C / 2,
  max: B + C / 2,
  intervals: 100
}

This function generates a triangular distribution with its peak at 25, total width 30, and base [10, 40].

Technical details:

• The variable X is the horizontal axis (domain).

• The function is evaluated intervals times between min and max.

• The integral is automatically normalized so it behaves like a probability distribution.

• All parameters (A, B, C, etc.) can be expressions.





---

Example:

/*

  	 	FDistribution

*/
SYSTEM {TYPE:OPTIONS,Speed:5}

Facility {NAME:VENTANILLA1,X:244,Y:190,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:20}

Facility {NAME:VENTANILLA2,X:412,Y:188,E_BIN_start:5,E_BIN_SIZE:1,E_BIN_COUNT:80,capacity:20}

POSITION {NAME:POS1,X:200,Y:387}
POSITION {NAME:POS2,X:341,Y:381}
POSITION {NAME:POS3,X:507,Y:380}

;GAUSSIAN
Function {Name:tName1, type: FDISTRIBUTION, EXPRESSION:"(1 / (A * SQRT(2 * PI))) * EXP(-0.5 * ((X - B) / A)^2)", b:30,  a: 2.3, min:B - (3 * A), max:B + (3 * A),intervals:100}

; TRIANGULAR B: center of the range C: total width of the range
Function {Name:tName2, A:0, B:25, C:30, D:0, type: FDISTRIBUTION, EXPRESSION:"(1 / C) * (1 - ABS((X - B) / (C / 2)))", min:B - C/2, max:B + C/2, intervals:100}

START 1000


;*****************************************************
GENERATE 2,0,0,0 {NAME:GEN1,X:56,Y:319}

ADVANCE 20,0 {TO:POS1}

ADVANCE 30,10 {TO:VENTANILLA1}

SEIZE VENTANILLA1
ADVANCE FN$tName1
RELEASE VENTANILLA1

ADVANCE 20,0 {TO:POS2}

ADVANCE 20,10 {TO:VENTANILLA2}

SEIZE VENTANILLA2
ADVANCE FN$tName2
RELEASE VENTANILLA2

ADVANCE 20,0 {TO:POS3}


ENDGENERATE 1

Custom mathematical formulas

The MATH type lets you define functions that are evaluated as direct mathematical formulas, without using distributions or precomputed value tables. They are useful when the value we need depends on variables deterministically, or on an algebraic expression.

This type of function does not generate randomness. It simply takes the parameters in order, substitutes them into the expression, and returns the result.

Syntax:

Function {Name:name, Type:MATH, Expression:"A + B * C"}



• Name: identifier name of the function.
• Type: must be MATH.
• Expression: formula to evaluate, using uppercase letters as variables (A, B, C...). These letters represent the parameters passed in order.

How do you call a MATH function?

It is used like any FN$ function, but with parameters in parentheses:

FN$(name, value_A, value_B, ...)









---

Example:

/*

  	 	Math

*/
Graphic {NAME:Text1,Type:TEXT,X:370,Y:312,Text:"Hello"}

Function {Name:math1, type: MATH, EXPRESSION:"A * 2 + B"}

START 1
;*****************************************************
GENERATE 1,0,0,1 {NAME:GEN1,X:56,Y:319}

assign AAA,4
assign BBB,6

move {name:Text1,text:"Result: FN$(math1,P$AAA,P$BBB)"}

ENDGENERATE 1

So far we have seen how GPSS-Plus is, in its essence, a discrete event simulation engine. However, it is also capable of simulating continuous systems—those in which changes occur gradually over time.

What is a continuous system?

A continuous system is one where values change without interruptions. For example:

• The level of a tank being filled.
• The temperature of a furnace being heated.
• The velocity of a car accelerating smoothly.

In these cases, there are no discrete "jumps" like those in a queue or a customer entering or leaving. The change happens progressively.

How to simulate that in a discrete environment?

The answer is: cheating, but intelligently. Instead of simulating a constant and fluid change, we divide it into small time steps, fast enough so that it looks continuous.
It is like cinema: each frame is a static image, but when played at 24 frames per second, we perceive motion.

How is this done in GPSS-Plus?

With key adjustments:

SYSTEM {type:OPTIONS, TIME_DECIMALS:1, SPEED:5}



• TIME_DECIMALS:1 indicates that time is measured with one decimal place (0.1).
• SPEED:5 sets the system update to a medium speed. From 0 (pause) to 10 (maximum speed). A medium speed (5) means that 10 AC1 instants take approximately 1 second. With SPEED:2, 1 second is roughly equivalent to 1 AC1.

The engine remains discrete. Time does not advance on its own; it advances when an entity is serviced or an event is triggered. What we do is generate many small events in rapid succession.



Example: Filling a tank

We are going to fill a tank with a variable flow rate (for example, following a sine function to make it more dynamic).

To do this, we use a timer, which launches a block of code every 0.1 units of time. It does not generate transactions or statistics: it just executes.

SYSTEM {TYPE:ON_TIMER, TRIGGER:filling, INTERVAL: 0.1}

Each time the PROCEDURE is triggered, we will:

1. Calculate a flow rate based on an oscillating function, previously defined with FUNCTION TYPE:MATH.
2. Add that flow to the current tank level.
3. Visually update the level.
4. Display the value on the screen.
5. Stop the simulation if the tank becomes full.



In this case, each cycle calculated the flow rate and added it to the level using a simple formula:

SAVEVALUE level, X$level + X$flow * 0.1

This method is called the Euler method, and it is the simplest form of numerical integration.

It estimates that during the time interval between AC1$ and AC1$ + 0.1, the tank will fill by an amount equal to the flow rate at instant AC1$ multiplied by the 0.1 interval.

In the next step, it will perform the same calculation again using the new flow rate value at that instant. And so on, adding small amounts as if it were a sum of rectangles: that is, in essence, an integral.

---

Example:

/*

 Continuous system within the discrete

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
SYSTEM {type:OPTIONS, TIME_DECIMALS:1, SPEED:5}
SYSTEM {TYPE:ON_TIMER, TRIGGER:filling, INTERVAL: 0.1}

Graphic {NAME:alert,Type:TEXT,X:291,Y:342,Text:"alert"}

Function {Name:fcFlow, Type:Math, Expression:"0.6 + SIN(A) * 4"}

INITIAL level, 0
INITIAL flow, 1.2
INITIAL phase, 0
INITIAL constant, 0.6

include ./library_graphics/speedometer.lib

START 100

PROCEDURE PRE_RUN
	assign config,{title:"Tank"
    		,x:100,y:60
            ,width:100 ,height:180
	       	,min_value: 0
    		,max_value: 100
            ,"color":"#ff0000"}

	call tank.speedometer.init,V$config

	assign config,{title:"Flow Rate"
    		,x:300,y:60
            ,width:100 ,height:180
	       	,min_value: -10
    		,max_value: 10
            ,"color":"orange"}

	call flow.speedometer.init,V$config

TERMINATE_VE
ENDPROCEDURE

PROCEDURE filling
    ; Oscillate flow rate as a function of simulated time
    SAVEVALUE flow, FN$(fcFlow,X$fase)

    ; Increment the phase smoothly
    SAVEVALUE phase, X$fase + 0.1

    ; Add flow to the level, according to the time interval
    SAVEVALUE level, X$level + X$flow * 0.1

    ; Rounded values for display
    ASSIGN tFlow, round(X$flow, 2)
    ASSIGN tLevel, round(X$level, 2)
	CALL tank.speedometer.set, P$tLevel
	CALL flow.speedometer.set, P$tFlow

    ; Status visualization
    IF (X$level>=100)
        MOVE {name:alert, text:"TANK FULL!"}
        STOP
    ELSE
        MOVE {name:alert, text:"Level: P$tLevel - Flow: P$tFlow"}
    ENDIF
TERMINATE
ENDPROCEDURE 1

In the previous chapter we saw how GPSS-Plus can simulate apparently continuous behaviors by using TIMERs and very small time steps. We observed, for example, how a tank was filled on screen, simulating a constant process.

Now we go one step further:
We are not only going to see what happens… we are going to record it and automatically plot it for later analysis.

Because in many cases, observing motion is not enough: we need a curve, a graph, a historical record of the behavior.
For that purpose, GPSS-Plus provides a data tracing system:

PLOTTER and PLOT

• PLOTTER {}: declares a graphical table where values will be stored.
• PLOT: adds a point to that table, using the current time or another variable as the X axis.

Each added point is like a system “frame”, and when the simulation ends, GPSS-Plus draws a curve using all recorded points.

Usage example

In our case, we will record:

PLOTTER {NAME:thePlot, Y_0:level, Y_1:flow, X:TIME_AC1}

This means:

• We will plot two value series: level and flow.
• The horizontal axis (X) will be time (AC1$), referenced as TIME_AC1.

To add points at each instant:

PLOT thePlot, X$level, X$flow

This is executed inside the PROCEDURE, on every call, gradually building the process history.

“LEVEL is obtained by accumulating FLOW. The system simulates a continuous integration.”
“Each point corresponds to an instant automatically generated by the TIMER.”

---

Example:

/*

 PLOT data collection

*/
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

SYSTEM {type:OPTIONS, TIME_DECIMALS:1, SPEED:5}
SYSTEM {TYPE:ON_TIMER, TRIGGER:filling, INTERVAL: 0.1}

PLOTTER {NAME:thePlot, Y_0:level, Y_1:flow, X:TIME_AC1}

Graphic {NAME:warning,Type:TEXT,X:291,Y:342,Text:"warning"}

Function {Name:fcFlow, Type:Math, Expression:"0.6 + SIN(A) * 4"}

INITIAL level, 0
INITIAL flow, 1.2
INITIAL phase, 0

include ./library_graphics/speedometer.lib

START 100

PROCEDURE PRE_RUN
	assign config,{title:"Tank"
    		,x:100,y:60
            ,width:100 ,height:180
	       	,min_value: 0
    		,max_value: 100
            ,"color":"#ff0000"}

	call tank.speedometer.init,V$config

	assign config,{title:"Flow"
    		,x:300,y:60
            ,width:100 ,height:180
	       	,min_value: -10
    		,max_value: 10
            ,"color":"orange"}

	call flow.speedometer.init,V$config

TERMINATE_VE
ENDPROCEDURE

PROCEDURE filling
    ; Oscillate flow as a function of simulated time
    SAVEVALUE flow, FN$(fcFlow,X$phase)

    ; Increase phase
    SAVEVALUE phase, X$phase + 0.1

    ; Add flow to the level
    SAVEVALUE level, X$level + X$flow * 0.1

    ; Record data into the plotter
    PLOT thePlot, X$level, X$flow

    ; Display rounded values
    ASSIGN tFlow, round(X$flow, 2)
    ASSIGN tLevel, round(X$level, 2)

    ; Update visual indicators
	CALL tank.speedometer.set, P$tLevel
	CALL flow.speedometer.set, P$tFlow

	IF (X$level>=100)
        MOVE {name:warning, text:"TANK FULL!"}
        STOP
    ELSE
        MOVE {name:warning, text:"Level: P$tLevel - Flow: P$tFlow"}
    ENDIF
TERMINATE
ENDPROCEDURE 1

In previous chapters we saw how GPSS-Plus can simulate systems with an apparently continuous behavior thanks to frequent execution of timed procedures (TIMER) and the use of SAVEVALUE to accumulate values such as filling a tank.

Up to now we used a simple formula to simulate the filling:

SAVEVALUE level, X$level + X$flow * 0.1

This method is effective, but basic. It assumes the flow is constant during each time interval, which is not entirely true if the flow changes rapidly, for example with a sine function as in this case.

And when we talk about interval, here we are talking about that "0.1". SIN(0) is not the same as SIN(0.1). And if we want a more accurate estimate of the average value, it would probably be better to use SIN(0.05), i.e., the midpoint of the interval.

What happens if the flow varies during the time step?

When the value you are accumulating changes within the same interval, the system is not perfectly exact: you are adding an approximate average value, not the real one.

To improve this, GPSS-Plus includes the INTEGRATE block, which uses a numerical integration method called fourth-order Runge-Kutta (RK4) to compute a much more accurate estimate.

What does INTEGRATE do?

INTEGRATE { EXPRESSION: "SIN(T) + 2", DT: 0.1, SAVEVALUE: flow_RK4 }

This block:

• Evaluates the expression at four key points of the interval: at the start (X), twice at the midpoint (X + DT/2), and at the end (X + DT).

• Applies the fourth-order Runge-Kutta (RK4) method, combining those values with specific weights to accurately estimate how the function varies over that segment.

• Stores the result in the indicated SAVEVALUE, as a better estimate of the average value of the expression over that interval.

The resulting value will be a better estimate of the mean flow in that time interval, and we can use it to fill the tank more accurately.



Comparing the traditional method (Euler) and RK4

We will build an example that uses both methods in parallel:

• flow: using the simple method

• flow_RK4: using RK4 numerical integration

• level: accumulated with the classic flow

• level_RK4: accumulated with the RK4 flow

In addition, we will plot the 4 curves using PLOTTER to visually compare the results.

What will you see in the plot?

• level_RK4 rises slightly more smoothly and a bit faster than level, because it accounts for the fact that the flow grows within the interval.

• flow_RK4 matches peaks and valleys better than flow, which only evaluates a single point.

• The white line on screen (RK4 level) goes a bit ahead of the blue line (simple level).

When is it valid to use RK4?

The fourth-order Runge-Kutta (RK4) method, implemented by the INTEGRATE block in GPSS-Plus, is a numerical algorithm designed to solve ordinary differential equations of the form:

dy/dt = f(t)

And it does so assuming that the function f(t) is continuous and smooth over the interval being integrated.

But… GPSS-Plus is a discrete-event system

This means there are many variables (X$level, X$entitiesInQueue, X$facility, etc.) that can change abruptly, without continuity or smoothness.

Those changes depend on events that fire when other entities arrive, seize resources, or finish.

Therefore:

You should not use INTEGRATE with expressions that depend on discrete system elements.

INTEGRATE with RK4 is a powerful and accurate tool, as long as it is used with purely mathematical functions. It is not a magical simulation of the future: it is an intelligent estimator for a well-defined function.





---

Example:

/*

 Improving results with INTEGRATE

*/
SYSTEM {type:OPTIONS, TIME_DECIMALS:1, SPEED:5}
SYSTEM {TYPE:ON_TIMER, TRIGGER:filling, INTERVAL: 0.1}

PLOTTER {NAME:thePlot, Y_0:level, Y_1:flow,X:TIME_AC1}
PLOTTER {NAME:thePlot_RK4, Y_0:level, Y_1:flow,X:TIME_AC1}
PLOTTER {NAME:thePlot_ALL, Y_0:level, Y_1:flow, Y_2:level_RK4, Y_3:flow_RK4,X:TIME_AC1}

Graphic {NAME:warning,Type:TEXT,X:291,Y:342,Text:"warning"}
Graphic {NAME:warning_RK4,Type:TEXT,X:291,Y:302,Text:"Warning2"}

Graphic {NAME:Cube1,Type:LINE,POINTS:"[100,100],[100,500],[200,500],[200,100]"
	, Close:1
    , color:#00FFFF
    , Fcolor:#FFFFFF}
Graphic {NAME:Line1,Type:LINE,fcolor:#FF6666, X1:102,Y1:100,X2:198,Y2:100}

Graphic {NAME:Line_RK4,Type:LINE,color:#333300, X1:98,Y1:100,X2:202,Y2:100}

INITIAL level, 0
INITIAL flow, 1.2
INITIAL level_RK4, 0
INITIAL flow_RK4, 1.2
INITIAL phase, 0
INITIAL constant, 0.6

START 100

;*****************************************************
PROCEDURE filling
    ; Oscillate flow as a function of simulated time
    SAVEVALUE flow, X$constant + SIN(X$phase) * 4
    ; Smoothly increase the phase
    SAVEVALUE phase, X$phase + 0.1
    ; Continuous integration of the level

    INTEGRATE  { EXPRESSION: "X$constant + SIN(T) * 4", METHOD: RK4, DT: 0.1, SAVEVALUE: flow_RK4 }

    SAVEVALUE level, X$level + X$flow * 0.1
    SAVEVALUE level_RK4, X$level_RK4 + X$flow_RK4 * 0.1

	PLOT thePlot,X$level,X$flow
	PLOT thePlot_RK4,X$level_RK4,X$flow_RK4
	PLOT thePlot_ALL,X$level,X$flow,X$level_RK4,X$flow_RK4

	MOVE {NAME:Line1, X1:98,Y1:(100+X$level*4) ,X2:202,Y2:(100+X$level*4)}
	MOVE {NAME:Line_RK4, X1:98,Y1:(100+X$level_RK4*4) ,X2:202,Y2:(100+X$level_RK4*4)}

    ASSIGN tFlow, round(X$flow, 2)
    ASSIGN tLevel, round(X$level, 2)

	ASSIGN tFlow_RK4, round(X$flow_RK4, 2)
    ASSIGN tLevel_RK4, round(X$level_RK4, 2)

    ; State display
    IF (X$level>=100)
        MOVE {name:warning, text:"TANK FULL!"}
        stop
    ELSE
        MOVE {name:warning, text:"Level: P$tLevel - Flow: P$tFlow"}
        MOVE {name:warning_RK4, text:"Level: P$tLevel_RK4 - Flow: P$tFlow_RK4"}
    ENDIF
TERMINATE
ENDPROCEDURE 1

This example shows how to simulate the motion of a vehicle on a circular track using constant acceleration. It is a first step toward building simple physical models, such as those used in basic game engines or mechanical simulations.

What is being simulated?

• The car starts from rest (velocity 0).
• A constant positive acceleration is applied until a maximum speed is reached (4 radians per second).
• Once this limit is reached, acceleration is reversed so the car decelerates smoothly down to a minimum speed (0.2 rad/s).
• Then it accelerates again, repeating the cycle.

How is it calculated?

The INTEGRATE block is used to accumulate acceleration over time:

INTEGRATE {EXPRESSION: X$aceleracion, DT: 0.01, SAVEVALUE: deltaVel}

Since acceleration is constant:

deltaVel = X$aceleracion * 0.01

This increment is then accumulated into the velocity:

SAVEVALUE velocidad, X$velocidad + X$deltaVel

Visual and graphical result

• The car moves smoothly around the circular track, accelerating and braking.
• The resulting plot (PLOTTER) shows two curves:
  • Acceleration: a square wave switching between positive and negative values.
  • Velocity: a triangular wave responding to the acceleration.

This behavior is typical of a basic speed control system and serves as a foundation for variable acceleration, friction, or adaptive control models.

---

Example:

/*

 Constant acceleration motion

*/
SYSTEM {type:OPTIONS, TIME_DECIMALS:2, SPEED:5}
SYSTEM {TYPE:ON_TIMER, TRIGGER:moverCoche, INTERVAL: 0.01}

; --- Initial variables ---
INITIAL velocidad, 0.0            ; Angular velocity
INITIAL angulo, 0               ; Angular position (radians)
INITIAL aceleracion, 0.01       ; Constant angular acceleration
INITIAL radio, 200              ; Circular track radius

; --- Graphic elements ---
Graphic {NAME:txtVel, Type:TEXT, X:510, Y:120, TEXT:"Velocity:"}
Graphic {NAME:coche, Type:LINE, X1:-10, Y1:-10,  X2:-10, Y2:10,  X3:10, Y3:10,  X4:10, Y4:-10,  COLOR:#FF0000, close:1}
Graphic {NAME:pista, Type:ARC, X:300, Y:300, RADIUS:X$radio, CLOSE:0, COLOR:#999999}

; --- Evolution plot ---
PLOTTER {NAME:curva, Y_0:aceleracion, Y_1:velocidad, X:TIME}

START 500

; --- Motion procedure ---
PROCEDURE moverCoche
    IF (X$velocidad >= 4)
        SAVEVALUE aceleracion, -0.1  ; Start braking
    ENDIF
    IF (X$velocidad <= 0.2)
        SAVEVALUE aceleracion, 0.1   ; Accelerate again
    ENDIF

    ; Compute velocity increment
    INTEGRATE {EXPRESSION: X$aceleracion, DT: 0.01, SAVEVALUE: deltaVel}

    ; Accumulate velocity
    SAVEVALUE velocidad, X$velocidad + X$deltaVel

    ; Advance angle using velocity
    SAVEVALUE angulo, X$angulo + X$velocidad * 0.05

    ; Compute position
    ASSIGN rad, X$angulo
    ASSIGN posX, 300 + X$radio * COS(P$rad)
    ASSIGN posY, 300 + X$radio * SIN(P$rad)

    MOVE {NAME:coche, X:P$posX, Y:P$posY}

    ASSIGN tVel, round(X$velocidad, 2)
    MOVE {NAME:txtVel, TEXT: "Velocity: P$tVel rad/s"}

    PLOT curva, X$aceleracion, X$velocidad
TERMINATE
ENDPROCEDURE

This example extends the circular motion simulation by allowing the vehicle acceleration to evolve dynamically over time.

Instead of switching abruptly between fixed acceleration values, the system now adjusts acceleration gradually, producing behavior closer to real vehicles: slow acceleration and sharper braking.

What is modeled?

• Progressive acceleration when starting from rest.
• Stronger braking at higher speeds.
• Continuous circular motion.
• Real-time visualization of position and velocity.
• Plots showing the evolution of acceleration and velocity.

Key components

• acceleration: current angular acceleration.
• deltaA: incremental change applied to acceleration.
• INTEGRATE: computes velocity change from acceleration.
• velocity: smoothly varying angular speed.
• angle: angular position driving the motion.
• PLOTTER: records acceleration and velocity over time.

Acceleration control logic

1. Acceleration increases slowly while speed is low.
2. When acceleration exceeds a threshold, its growth reverses, producing braking.
3. Once velocity reaches zero, the system resets and accelerates again.

The resulting motion resembles a realistic drive cycle with smooth acceleration and sharper deceleration.

Visual outcome

• Acceleration follows a sawtooth-like pattern.
• Velocity exhibits smooth oscillations.
• The car changes color: green while accelerating, red while braking.

---

Example:

/*

 Variable acceleration motion

*/
SYSTEM {type:OPTIONS, TIME_DECIMALS:2, SPEED:6}
SYSTEM {TYPE:ON_TIMER, TRIGGER:moverCar, INTERVAL: 0.1}

; --- Initial variables ---
INITIAL velocity, 0.0            ; Angular velocity
INITIAL angle, 0                ; Angular position (radians)
INITIAL acceleration, 0.01      ; Angular acceleration
INITIAL radius, 200             ; Circular track radius
INITIAL deltaA, 0.0002

; --- Graphics ---
Graphic {NAME:txtVel, Type:TEXT, X:510, Y:120, TEXT:"Velocity:"}
Graphic {NAME:car, Type:LINE, X1:-10, Y1:-10, X2:-10, Y2:10, X3:10, Y3:10, X4:10, Y4:-10, COLOR:green, close:1}
Graphic {NAME:track, Type:ARC, X:300, Y:300, RADIUS:X$radius, CLOSE:0, COLOR:#999999}

; --- Evolution plot ---
PLOTTER {NAME:curve, Y_0:acceleration, Y_1:velocity, X:TIME}

START 500

PROCEDURE moverCar
    ;-------------------------------
    ; SMOOTH ACCELERATION CONTROL
    ;-------------------------------

    ; If acceleration is too high, reduce it smoothly
    IF (X$acceleration > 0.04)
        SAVEVALUE deltaA, -0.003
        SAVEVALUE acceleration, 0.04
        MOVE {name:car, color:red}
    ENDIF

    ; If velocity reaches zero, reset and start accelerating again
    IF (X$velocity <= 0.0)
        SAVEVALUE deltaA, 0.0002
        SAVEVALUE acceleration, 0
        SAVEVALUE velocity, 0.0
        MOVE {name:car, color:green}
    ENDIF

    ;---------------------------------
    ; UPDATE VELOCITY AND POSITION
    ;---------------------------------

    ; Gradually modify acceleration
    SAVEVALUE acceleration, X$acceleration + X$deltaA

    ; Integrate acceleration to obtain velocity increment
    INTEGRATE {EXPRESSION: X$acceleration, DT: 0.1, SAVEVALUE: deltaVel}
    SAVEVALUE velocity, X$velocity + X$deltaVel

    ; Update angular position
    SAVEVALUE angle, X$angle + X$velocity * 0.1

    ;--------------------------------
    ; COMPUTE POSITION AND MOVE CAR
    ;--------------------------------

    ASSIGN rad, X$angle
    ASSIGN posX, 300 + X$radius * COS(P$rad)
    ASSIGN posY, 300 + X$radius * SIN(P$rad)
    MOVE {NAME:car, X:P$posX, Y:P$posY}

    ;--------------------------
    ; DISPLAY STATE AND PLOTS
    ;--------------------------

    ASSIGN tVel, round(X$velocity, 2)
    ASSIGN tAcc, round(X$acceleration, 4)
    MOVE {NAME:txtVel, TEXT:"Velocity: P$tVel rad/s\nAcceleration: P$tAcc"}

    ; Plot data for analysis
    PLOT curve, X$acceleration, X$velocity
TERMINATE
ENDPROCEDURE

In the previous chapters we simulated a tank fill using continuous functions, recorded its evolution with PLOTTER, and improved accuracy with numerical integration (INTEGRATE, RK4). Now we combine all of that into a realistic hybrid system where continuous and discrete logic coexist.

Example: solar station with users connected

This model represents a hybrid system where:

• There is a solar energy source (continuous model)
• There are discrete users who arrive, decide whether they need to charge, and connect if needed

Continuous part: solar generation

Solar input is modeled as a sinusoid that simulates the day cycle: it oscillates smoothly from 0 to 1.5 over 1440 minutes (24 hours). Each time unit represents one minute, and each timer tick adds energy to the system battery.

INTEGRATE {
  EXPRESSION: "0.75 + 0.75 * SIN((T / 1440) * 6.2832)",
  DT: 1,
  SAVEVALUE: solarFlow
}

The result is accumulated into batteryLevel with a maximum cap of 100. A PLOTTER records both battery level and solar flow every cycle, producing a full-day evolution curve in the report.

Discrete part: users requesting charge

Users arrive using GENERATE. Each one decides whether to charge using a Poisson-based decision function:

Function {Name:chargeDecision, TYPE:POISSON, LAMBDA:1/4}

If they decide to charge, they move to the charger resource (RESTROOM), wait there, and are released automatically via WAKE once they reach the required charge level (requiredCharge).

How both worlds are coordinated

Every time solarCycle runs:

• Solar flow is updated (continuous)
• The system battery is recharged with that flow
• All users currently connected to the charger are iterated (FOREACH ... IN_RESOURCE) and receive energy if available
• Fully charged users are released using WAKE

Visually, the model shows a battery tank level, an arc representing current solar intensity, and a plot of the recorded evolution.

Conclusion

This is a continuous/discrete hybrid model: a continuous environmental evolution (solar generation) combined with discrete arrivals, decisions, and resource occupancy (users charging). This structure is typical in energy systems, shared infrastructure, and any scenario with intermittent production and variable demand.

---

Example:

/*

 Hybrid simulation

*/
SYSTEM {type:OPTIONS, TIME_DECIMALS:0, SPEED:5}                 ; Integer time units (no decimals) and slow visual simulation
SYSTEM {TYPE:ON_TIMER, TRIGGER:solarCycle, INTERVAL: 1}         ; Run procedure 'solarCycle' every 1 time unit

;--- Result plots ---
PLOTTER {NAME:batteryPlot, Y_0:batteryLevel, Y_1:solarFlow, X:TIME_AC1}      ; Curves: battery level and solar flow

;--- Random user decision function ---
Function {Name:chargeDecision, TYPE:POISSON, LAMBDA:1/4}                    ; Probability of deciding to charge

;--- Graphic positions ---
Position {NAME:PosIn, X:431, Y:511}                                         ; Entry to the charging area
Position {NAME:PosOut, X:690, Y:510}                                        ; Exit
Position {NAME:PosCharge, X:578, Y:173}                                     ; Charging point (visual)

;--- User charging resource ---
Restroom {NAME:Charger, X:555, Y:360, R_BIN_SIZE:1, R_BIN_COUNT:40}         ; Allows 40 concurrent charging "slots"

;--- Visual indicators ---
Graphic {NAME:txtBattery, Type:TEXT, X:329, Y:305, Text:"Battery"}          ; Text: battery level
Graphic {NAME:gSolarArc, TYPE:ARC, X:411, Y:173,
  fCOLOR:#FFFF99, RADIUS:50, START_ANGLE:0, END_ANGLE:45, CLOSE:1}          ; Arc: solar intensity
Graphic {NAME:txtSolar, Type:TEXT, X:411, Y:173, Text:"Solar"}              ; Text: solar flow
Graphic {NAME:Box1, Type:LINE,
  POINTS:"[100,100],[100,500],[200,500],[200,100]",
  Close:1, fcolor:#666666}                                                  ; Battery tank
Graphic {NAME:LevelLine, Type:LINE, color:#00FFFF, X1:98, Y1:100, X2:202, Y2:100} ; Battery level line

;--- Initial variables ---
INITIAL batteryLevel, 50
INITIAL solarFlow, 0
INITIAL requiredCharge, 15

START 2000

;==============================
; SOLAR CYCLE PROCEDURE
;==============================
PROCEDURE solarCycle
    ; Solar flow: normalized sinusoid between 0 and 1.5 over a 24h cycle (1440 minutes)
    INTEGRATE { EXPRESSION: "0.75 + 0.75 * SIN((T / 1440) * 6.2832)", DT: 1, SAVEVALUE: solarFlow }

    ; Increase battery (cap at 100)
    SAVEVALUE batteryLevel, MIN(100, X$batteryLevel + X$solarFlow)

    ; Iterate entities currently inside the Charger resource
    FOREACH NUMBER, IN_RESOURCE, Charger
        if (X$batteryLevel > 1)
            ; Increase user's internal battery
            assign current, P$(battery, P$NUMBER) + 0.5
            assign battery, P$current, P$NUMBER

            ; Decrease system battery
            savevalue batteryLevel, X$batteryLevel - 0.5

            ; If user has enough charge, release them
            if (P$current > X$requiredCharge)
                wake Charger, 0, P$NUMBER
            endif
        endif
    ENDFOREACH

    ; Solar arc: proportional to current flow
    ASSIGN sunAngle, round((X$solarFlow / 1.5) * 360, 1)
    MOVE {NAME:gSolarArc, END_ANGLE:P$sunAngle}

    ; Update battery level line
    MOVE {NAME:LevelLine, X1:98, Y1:(100 + X$batteryLevel * 4), X2:202, Y2:(100 + X$batteryLevel * 4)}

    ; Show rounded values
    assign tBatteryRound, round(X$batteryLevel, 2)
    assign tSolarRound, round(X$solarFlow, 2)
    move {name:txtBattery, text:"Current level: P$tBatteryRound"}
    move {name:txtSolar, text:"Solar flow: P$tSolarRound / 1.5"}

    ; Store data for report
    PLOT batteryPlot, X$batteryLevel, X$solarFlow
TERMINATE
ENDPROCEDURE 1

;==============================
; USERS
;==============================
GENERATE 5,5 {NAME:userGen, X:294, Y:514, ECOLOR:#000000}                   ; One user every ~5 time units

assign battery, X$requiredCharge                                             ; Required energy for this user

ASSIGN decision, FN$chargeDecision                                            ; Decide whether they need to charge (Poisson)
ADVANCE 10 {to:PosIn}                                                        ; Connection / approach time

IF (P$decision >= 1)
    assign battery, 0                                                        ; Start charging counter
    ADVANCE 10 {to:Charger}                                                   ; Move to charger
    rest Charger                                                             ; Wait until fully charged (released by WAKE)
ENDIF

ADVANCE 10 {to:PosOut}                                                       ; Exit
TERMINATE 1

Until now, we have worked by building models that operated within a closed and controlled universe inside the GPSS-Plus engine. The simulation engine decided when time advanced, what happened at each moment, and how the system elements behaved. It was a logical, deterministic, and autonomous environment.

We are going to break away from all that with the introduction of the real world. Nothing will be the same: the engine's focus changes, entities will live according to other patterns, and flows will no longer be solely under our control.

Entities should not advance because a random number decides so, but because a physical sensor has detected their presence.

Time

One of the first consequences of this opening to the outside is that time no longer belongs to us.

We can no longer arbitrarily accelerate or pause it. If the engine wants to read from a sensor, it must wait as long as that sensor takes to respond. If reading a file is delayed, the simulation will be as well. Therefore, when working with the real world, execution must be in real-time.

What was previously just a "moment" is now strictly one second on the system clock. It is declared as follows:

SYSTEM {TYPE:OPTIONS, REAL_TIME:1}

An ADVANCE 10 means exactly a wait of 10 real seconds.

From there, there is no turning back: everything happens at the rhythm of the physical world, and the simulation becomes a subordinate part of reality.
The engine ceases to be a pure simulator and starts behaving as an orchestrator of real processes.

The New System Architecture

We can now identify three major components of the system:

• GPSS-Plus and the BRIDGER resource, which entities will use to issue and receive commands.
• The Outside World, which can include sensors, databases, file systems, or physical/virtual devices. Even other simulation engines.
• The middleware.js, which is a new bidirectional software that knows how to communicate with the BRIDGER and any element of the outside world.

THE BRIDGER:

From an entity's point of view, in addition to the BRIDGER COMMAND, it only has 5 BLOCKS:

• BRIDGE_READ
• BRIDGE_WRITE
• BRIDGE_SUBSCRIBE
• BRIDGE_BROWSE
• BRIDGE_CALL

These BLOCKS are the ones that communicate with middleware.js.



THE MIDDLEWARE.js

Available in the downloads chapter.

It is a set of JavaScript files to run in a node.js environment that receives instructions from the BRIDGER and retransmits them to the external device and vice versa.

In summary, middleware.js functions as an exchange layer between protocols, transforming the five blocks defined in GPSS-Plus into messages compatible with MQTT (the most widely used, based on topics) and OPC-UA (the most complete, with hierarchical structures and defined data types).

For initial testing, there is an operational public service at:

wss://bridger.gpss-plus.com:3000



The Outside World

These are all the sensors, actuators, devices, and external resources.

For testing, you have a virtual OPC-UA client that represents a set of simulated sensors and services.

Its address is: opc.tcp://opcua.gpss-plus.com:4840

It contains a scale, a door sensor, distance sensors, PID control, file reading and writing, and even background program execution.

Naturally, you can modify and expand the code to add your own services.

The Topology:

These three elements are distributed as follows:

gpss-plus           192.168.x.x           192.168.n.m
BRIDGER       <->  middleware.js    <->  Temperature Sensor
192.168.a.b    |                         File System
(The browser)  |                         MySQL Database
               |
               |                         192.168.n.m
               |   192.168.y.y           Random number generator
              <->  middleware.js    <->  Neural network
               |                         OPC-UA Motion detector
               |
               |
               |   192.168.z.z           192.168.n.m
              <->  middleware.js    <->  Inter-system semaphore


In summary, the browser running GPSS-Plus must be able to access the IP where middleware.js is installed, and this, in turn, must access the external device or service.
The most stable configuration is to have middleware.js on the same network as the sensors.

In the following chapters, we will see how to handle the BRIDGER step by step and we will build our own physical devices.



In GPSS-Plus, we call an external resource any element of the system that is not directly part of the simulation engine, but with which entities can interact.
These resources can act as data sources or as real actuators within the physical or digital environment.

What counts as an external resource?

Typical examples include:

• A file in the file system (FS).

• A MySQL table or any database accessible via the network.

• A physical sensor, such as a temperature or motion detector, connected via OPC-UA or MQTT.

• A REST API that returns states or accepts commands.

• An industrial or electronic device, such as a scale, a motor, or a load cell.

In short, everything that lives outside the engine but can influence it is considered an external resource.

One single mechanism for all

GPSS-Plus does not differentiate between a sensor and a database.
Both are treated uniformly through the BRIDGER resource, which acts as a universal access interface.

This enormously simplifies the mental model:
you can replace a real sensor with a MySQL table, or a local file, without rewriting your model, simply by changing the BRIDGER configuration.

Example sensor: OPC-UA Virtual Device

OPC-UA (Open Platform Communications – Unified Architecture) is an industrial standard for structured communication between devices and systems.
It allows for the exchange of nodes, attributes, and events in a secure, hierarchical, and extensible manner.

In GPSS-Plus, you can connect to both a real OPC-UA server and the included virtual device for testing and development without physical hardware.

This virtual device exposes simulated nodes such as:

• Sensor_Temp_1
• Motor_X.Status
• Contador_Piezas (Part_Counter)
• Puerta_Acceso_A.IsOpen (Access_Door_A.IsOpen)

You will be able to read, write, or subscribe to their changes using the same BRIDGER mechanism.

In the following chapters, we will see how to:

• Detect events, such as the opening of a simulated door.
• Access file systems or read-only online services.
• Execute remote applications or scripts.

Both the virtual OPC-UA device and middleware.js can be freely downloaded and modified to suit your own needs or real hardware.

Let's look at a concrete example to understand how information flows between GPSS-Plus, middleware.js, and the OPC-UA server.

We are going to modify the behavior of a GENERATE block so that entities are created when a physical (simulated) sensor detects a door opening —instead of doing it by time or probability parameters.

Creating the Communication Bridge

The first step is to define the BRIDGER, which will be the link to the outside world:

Initial options,{user:"user", pass:"1234"}

BRIDGER {NAME:bridge1,X:333,Y:444
    ,SERVER:"wss://bridger.gpss-plus.com:3000"
    ,CLIENT:"opc.tcp://opcua.gpss-plus.com:4840"
    ,OPTIONS:V$options
    ,ON_ERROR:bridge1_on_error
    }

The main parameters are:

• NAME: Internal identifier for the BRIDGER (e.g., bridge1).
• SERVER: The secure WebSocket address where middleware.js is listening.
• CLIENT: The address of the OPC-UA server (usually on the same network as the middleware).
• OPTIONS: Additional parameters (such as username and password) required for the connection.
• ON_ERROR: A trigger that will execute if a communication error occurs.

Subscribing to a Sensor

Once the bridge is defined, we must start the connection within the model's PRE_RUN and subscribe to the variable representing the door's state:

    BRIDGE_SUBSCRIPTION { NAME: bridge1
      , VARIABLE: "Sensor_Door_IsOpen"
    , TRIGGER: on_open
    }

This instruction keeps a channel open with the sensor to receive automatic notifications every time its value changes.

The parameters are minimal:

• NAME: The name of the BRIDGER that will manage the communication.
• VARIABLE: The exact name of the variable published by the sensor.
• TRIGGER: The procedure that will process each received update.

Subscriptions allow receiving data in real-time without the need to perform periodic polling (reads).

The Associated Procedure

Each time a new value is received, the specified trigger is executed.
The parameter P$(PARAM_A.VALUE) will contain the current value of the sensor (0 or 1 in this case). PARAM_B contains the calling entity's number and PARAM_C the timestamp.

procedure on_open
   move {name:Text1,TEXT:"DOOR P$(PARAM_A.VALUE)"}
     if (P$(PARAM_A.VALUE.EXIST) && P$(PARAM_A.VALUE)==1)
        NEW GEN1
     endif
   TERMINATE_VE
endprocedure

In this example, every time the sensor detects that the door opens (value = 1), the system creates a new GEN1 entity, simulating a person entering the system.

---

Example:

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
SYSTEM {TYPE:OPTIONS, REAL_TIME:1}

Facility {NAME:facility1,X:446,Y:514}

Graphic {Type:TEXT,Name:Text1,X:376,Y:358}
Graphic {Type:TEXT,Name:TextError,X:376,Y:330,Text:"On error...."}

Initial options,{user:"user", pass:"1234"}

BRIDGER {NAME:bridge1,X:375,Y:398
	,SERVER:"wss://bridger.gpss-plus.com:3000"
	,CLIENT:"opc.tcp://opcua.gpss-plus.com:4840"
    ,OPTIONS:V$options
    ,on_error:bridge1_on_error
    }


POSITION {NAME:POS1,X:264,Y:511}

POSITION {NAME:POS2,X:658,Y:509}


START 100

;*****************************************************

PROCEDURE PRE_RUN
    BRIDGE_SUBSCRIPTION { NAME: bridge1
	, VARIABLE: "Sensor_Door_IsOpen"
    , TRIGGER: on_open
    }

	TERMINATE_VE
ENDPROCEDURE

;*****************************************************
GENERATE 0,0,0,0 {NAME:GEN1,X:141,Y:351}
    ADVANCE 5,0 {TO:POS1}
    ADVANCE 5,0 {TO:facility1}
    SEIZE facility1
    advance 10,10
    RELEASE facility1
    ADVANCE 10,0 {TO:POS2}
ENDGENERATE 1
;----------------------------------------------------------------------------
procedure on_open
        move {name:Text1,TEXT:"DOOR P$(PARAM_A.VALUE)"}
        if (P$(PARAM_A.VALUE.EXIST) && P$(PARAM_A.VALUE)==1)
    	NEW GEN1
    	endif
	TERMINATE_VE
endprocedure
;----------------------------------------------------------------------------
procedure bridge1_on_error
        move {name:TextError,TEXT:"P$PARAM_A"}
	TERMINATE_VE
endprocedure

We have seen that in the virtual OPC-UA device we could repeatedly read the values of the variable "Sensor_Door_IsOpen".

However, we will not always know which variables or methods exist within a device. For example, a file service might list directories, or a database might expose tables whose names change.

For this purpose, the BRIDGE_BROWSE block exists, allowing you to query the internal structure of the connected device or service.

Why use BRIDGE_BROWSE?

The BRIDGE_BROWSE command is used to discover:

• Which variables are available.
• What data type each one has (Boolean, Double, String, etc.).
• Whether they are read-only, writable, or both.
• What methods or operations are exposed.

In other words, it is the capability map of the device.

Out of the 5 BRIDGER blocks, let's see what is obtained from BRIDGE_BROWSE:

• BRIDGE_READ
• BRIDGE_WRITE
• BRIDGE_SUBSCRIBE
• BRIDGE_BROWSE
• BRIDGE_CALL

BRIDGE_BROWSE runs automatically during the first connection, but it can also be invoked manually if you wish to explore a new device or verify what has changed.

Example Output (Debug or Canvas)

When executing BRIDGE_BROWSE, the middleware returns a hierarchical list of accessible variables:

Sensor_Motion_Detected: ns=1;i=1000 [Boolean]
Sensor_Door_IsOpen: ns=1;i=1001 [Boolean]
PIDControl_CurrentTemperature: ns=1;i=1002 [Double]
PIDControl_Setpoint: ns=1;i=1003 [Double] (writable)
PIDControl_PIDOutput: ns=1;i=1004 [Double]
Device_Motor_Enabled: ns=1;i=1005 [Boolean] (writable)
System_Battery_BatteryLevel: ns=1;i=1006 [Double]
Device_Scale_Weight: ns=1;i=1007 [Double]
Device_Scale_Trigger: ns=1;i=1008 [Boolean] (writable)
Device_Piston_IsExtended: ns=1;i=1009 [Boolean]
Device_Piston_Trigger: ns=1;i=1010 [Boolean] (writable)
...

Each line shows:

• The variable name.
• Its internal identifier (ns=1;i=1000, typical in OPC-UA).
• The data type.
• Whether it is writable ((writable)).
• Whether it is an executable method.

Using BRIDGE_BROWSE Manually

Before interacting with a new device, run BRIDGE_BROWSE once to understand its structure.
Afterward, you can use BRIDGE_READ, BRIDGE_WRITE, or BRIDGE_SUBSCRIBE accurately on the variables you have identified.

---

Example:

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
SYSTEM {TYPE:OPTIONS, REAL_TIME:1}

Graphic {Type:TEXT,Name:Text1,X:653,Y:294}
Graphic {Type:TEXT,Name:TextError,X:440,Y:329,Text:"On error...."}

Initial options,{user:"user", pass:"1234"}

BRIDGER {NAME:bridge1,X:443,Y:405
	,SERVER:"wss://bridger.gpss-plus.com:3000"
	,CLIENT:"opc.tcp://opcua.gpss-plus.com:4840"
    ,OPTIONS:V$options
    ,on_error:bridge1_on_error
    }


POSITION {NAME:POS1,X:209,Y:347}

START 1

;*****************************************************

PROCEDURE PRE_RUN
    BRIDGE_BROWSE { NAME: bridge1
    , TRIGGER: on_browse
    }

	TERMINATE_VE
ENDPROCEDURE

;*****************************************************
GENERATE 10,0,0,1 {NAME:GEN1,X:141,Y:351}
    ADVANCE 5,0 {TO:POS1}
ENDGENERATE 1
;----------------------------------------------------------------------------
procedure on_browse
        move {name:Text1,TEXT:"BROWSE P$(PARAM_A)"}
	TERMINATE_VE
endprocedure
;----------------------------------------------------------------------------
procedure bridge1_on_error
    move {name:TextError,TEXT:"P$PARAM_A"}
    TERMINATE_VE
endprocedure

Until now, we have received data from the outside world.
Now we will learn to send instructions and read specific values from GPSS-Plus to an OPC-UA, MQTT, or any other device connected through middleware.js.

Writing to a Device

Giving a command to an actuator is as simple as assigning a value and sending it:

    ASSIGN values, { Device_Motor_Enabled: 1 }
    BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}

This writes to the Device_Motor_Enabled variable of the device, turning the motor on (1 = ON, 0 = OFF).
The structure of the command is always the same:

• VALUES: A key-value set with the variables to be modified.
• TRIGGER: The procedure that will execute when the middleware confirms delivery.

Reading a Variable State

Reading is performed in an analogous way:

    ASSIGN values, ["Device_Motor_Enabled"]
    BRIDGE_READ {name:bridge1, trigger:on_read, VALUES:V$values}

In this case, the list ["Device_Motor_Enabled"] indicates which variables we want to query.
The value will arrive asynchronously, and will be received within the corresponding trigger (on_read).

Asynchronous vs. Synchronous Execution

By default, READ and WRITE operations are asynchronous:
the GPSS-Plus engine continues its execution without stopping to wait for the device's response.

This is standard for physical systems, where communication can take several hundred milliseconds.

If the resource is immediate (e.g., a local file or an internal database), you can force a synchronous operation with:

 BRIDGE_READ { name:bridge1, VALUES:V$values, SYNC:1, trigger:on_read }

In this mode, the entity and the engine block until the response is received.
This should only be used in controlled contexts, as stopping the simulator's time affects the entire system.

---

Example:

SYSTEM {TYPE:OPTIONS, REAL_TIME:1}

Graphic {Type:TEXT,Name:Text1,X:653,Y:294}
Graphic {Type:TEXT,Name:Text2,X:653,Y:194}
Graphic {Type:TEXT,Name:TextError,X:440,Y:329,Text:"On error...."}

Initial options,{user:"user", pass:"1234"}

BRIDGER {NAME:bridge1,X:443,Y:405
	,SERVER:"wss://bridger.gpss-plus.com:3000"
	,CLIENT:"opc.tcp://opcua.gpss-plus.com:4840"
    ,OPTIONS:V$options
    ,on_error:bridge1_on_error
    }


POSITION {NAME:POS1,X:209,Y:347}
POSITION {NAME:POS2,X:409,Y:347}

START 100

;*****************************************************
GENERATE 3,0,0,10 {NAME:GEN1,X:141,Y:351}

	ASSIGN values, ["Device_Motor_Enabled"]
	BRIDGE_READ {name:bridge1, trigger:on_read, VALUES:V$values}
	ADVANCE 5,0 {TO:POS1}

	if (D$N %2 == 0 )
    ASSIGN values, { Device_Motor_Enabled: 0 }
	BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}
    else
    ASSIGN values, { Device_Motor_Enabled: 1 }
	BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}
    endif

	ADVANCE 5,0 {TO:POS2}
ENDGENERATE 1
;----------------------------------------------------------------------------
procedure on_write
        move {name:Text1,TEXT:"AC1$ WRITE P$(PARAM_A)"}
	TERMINATE_VE
endprocedure
;----------------------------------------------------------------------------
procedure on_read
        move {name:Text2,TEXT:"AC1$ READ P$(PARAM_A)  \n::  Value: P$(PARAM_A.Device_Motor_Enabled)"}
	TERMINATE_VE
endprocedure
;----------------------------------------------------------------------------
procedure bridge1_on_error
    move {name:TextError,TEXT:"AC1$ P$PARAM_A"}
   TERMINATE_VE
endprocedure

In this example, we will see all the system elements in operation.

The model represents an automated production line where packages arrive one by one, are weighed on a scale, and based on their weight, are diverted to one path or another using a pneumatic piston.

Process Description

1. Entry Detection
   A door sensor detects the arrival of a new package (symbolizing a product entering the zone).
   Each detection generates a new entity in GPSS-Plus.

2. Unitary Flow Control
   A restroom acts as a unitary releaser, allowing packages to pass one at a time toward the scale.
   The next package only advances once the previous one has finished weighing.

3. Weighing
   Upon reaching the scale, the entity activates the sensor (Device_Scale_Trigger = 1).
   When the weight stabilizes, the system assigns the read value to the entity.

4. Classification
   If the weight exceeds a threshold (pesoLimite), the piston is activated (Device_Piston_Trigger = 1), diverting the package to the heavy zone.
   If not, it continues straight to the light zone.

5. Synchronization with Physical Actuators
   The piston retracts automatically.
   GPSS-Plus subscribes to the piston state (Device_Piston_IsExtended) to know when it is ready for the next cycle.

System Architecture:

[Door Sensor]  -> generates entity
         ↓
 [Unitary Releaser]
         ↓
       [Scale]  <-> OPC-UA Device_Scale_Weight
         ↓
   [Separator / Piston]
         ↓
 [Light Exit] / [Heavy Exit]

---

Example:

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
SYSTEM {TYPE:OPTIONS, REAL_TIME:1}

Restroom {NAME:LiberadorUnitario,X:155,Y:332}

Queuer {NAME:zonaBascula,X:163,Y:32}
Graphic {NAME:lineZonaBascula,Type:LINE,color:#FF0000, X1:82,Y1:64,X2:260,Y2:65}

Restroom {NAME:RestroomBascula,X:226,Y:110}

initial pesoLimite,8

Initial options,{user:"user", pass:"1234"}

BRIDGER {NAME:bridge1,X:733,Y:556
	,SERVER:"wss://bridger.gpss-plus.com:3000"
	,CLIENT:"opc.tcp://opcua.gpss-plus.com:4840"
    ,OPTIONS:V$options
    ,on_error:bridge1_on_error
    }


POSITION {NAME:POS1,X:97,Y:437}
POSITION {NAME:POS2,X:95,Y:183}

POSITION {NAME:PosBascula,X:225,Y:199}
POSITION {NAME:PosSeparador,X:387,Y:201}
POSITION {NAME:PosPesados,X:513,Y:302}
POSITION {NAME:PosPesados2,X:594,Y:302}
POSITION {NAME:PosLigeros,X:511,Y:197}
POSITION {NAME:PosLigeros2,X:592,Y:197}

Graphic {NAME:Text1,Type:TEXT,X:167,Y:484,Text:"On OPEN"}
Graphic {NAME:TextError,Type:TEXT,X:424,Y:582,Text:"Error"}

Graphic {NAME:lineBascula,Type:LINE,color:#FF0000, X1:191,Y1:176,X2:263,Y2:176}
Graphic {NAME:txtBascula,Type:TEXT,X:226,Y:156,Text:"bascula"}

Graphic {NAME:lineSeparador,Type:LINE,color:#FF0000, X1:363,Y1:201,X2:432,Y2:201}
Graphic {NAME:txtSeparador,Type:TEXT,X:394,Y:143,Text:"separador"}

START 10

;*****************************************************

PROCEDURE PRE_RUN
    BRIDGE_SUBSCRIPTION { NAME: bridge1
	, VARIABLE: "Sensor_Door_IsOpen"
    , TRIGGER: on_open
    }
savevalue pesoActual,0
savevalue pesoAnterior,X$pesoActual

	BRIDGE_SUBSCRIPTION { NAME: bridge1
        , VARIABLE: "Device_Scale_Weight"
        , TRIGGER: on_subscription_bascula
        }
	BRIDGE_SUBSCRIPTION { NAME: bridge1
        , VARIABLE: "Device_Piston_IsExtended"
        , TRIGGER: on_subscription_piston
        }

ASSIGN values, { Device_Scale_Trigger: 0 }
BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}

	TERMINATE_VE
ENDPROCEDURE

;*****************************************************
GENERATE 0,0,0,0 {NAME:GEN1,X:91,Y:547}

ADVANCE 5,0 {TO:POS1,flow:1}
ADVANCE 5,0 {TO:LiberadorUnitario,flow:1}
if (R$(zonaBascula,in)>0)
	rest LiberadorUnitario
endif
queue zonaBascula

ADVANCE 5,0 {TO:POS2,flow:1}
ADVANCE 5,0 {TO:PosBascula,flow:1}

ASSIGN values, { Device_Scale_Trigger: 1 }
BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}

rest RestroomBascula
depart zonaBascula
call liberarRestroomBascula

ADVANCE 2
mod {subtitle:"P$peso Kg"}
if (P$peso > X$pesoLimite)
    mod {color:"red"}
else
    mod {color:"green"}
endif

ASSIGN values, { Device_Scale_Trigger: 0 }
BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}

timeout moverPiston,4.3,P$peso

ADVANCE 5,0 {TO:PosSeparador,flow:1}

if (P$peso > X$pesoLimite)
    ADVANCE 3,0 {TO:PosPesados}
	ADVANCE 3,0 {TO:PosPesados2,flow:1}
else
    ADVANCE 3,0 {TO:PosLigeros}
 	ADVANCE 3,0 {TO:PosLigeros2,flow:1}
endif

ENDGENERATE 1
;----------------------------------------------------------------------------

procedure on_open
       move {name:Text1,TEXT:"DOOR P$(PARAM_A.VALUE)"}
       if (P$(PARAM_A.VALUE.EXIST))
       if (P$(PARAM_A.VALUE)==1)
    	NEW GEN1
    	endif
       endif
	TERMINATE_VE
endprocedure

procedure bridge1_on_error
    move {name:TextError,TEXT:"P$PARAM_A"}
	TERMINATE_VE
endprocedure
;-------------------------
procedure on_subscription_bascula
	savevalue pesoActual,P$(PARAM_A.VALUE)
    move {name:txtBascula,TEXT:"X$pesoActual Kg"}
    if (ABS(X$pesoAnterior-X$pesoActual)<=0.1 && X$pesoActual>1)
	    FOREACH entidad, IN_RESOURCE, RestroomBascula
	    	assign peso,round(X$pesoActual,1), P$entidad
		ENDFOREACH

	    wake RestroomBascula
    endif
	savevalue pesoAnterior,X$pesoActual

	TERMINATE_VE
endprocedure
;-------------------------
procedure on_write
	TERMINATE_VE
endprocedure

procedure on_subscription_piston
	if (P$(PARAM_A.VALUE)==1)
    move {name:lineSeparador,Y2:220}
    else
    move {name:lineSeparador,Y2:200}
    endif
	move {name:txtSeparador,text:"Piston P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure

procedure liberarRestroomBascula
	assign hecho,0
	    FOREACH entidad, IN_RESOURCE, zonaBascula
            if (P$hecho==0)
	    	wake RestroomBascula,P$entidad
            endif
            assign hecho,1
		ENDFOREACH
endprocedure

procedure moverPiston
    if (P$PARAM_A>X$pesoLimite)
     ASSIGN values, { Device_Piston_Trigger: 1 }
     BRIDGE_WRITE { name:bridge1, VALUES:V$values, TRIGGER:on_write }
	assign tmp,"heavy"
    else
    assign tmp,"light"
    endif
	TERMINATE_VE
endprocedure

To run the most advanced examples and connect GPSS-Plus with the real world, you will need to install your own middleware.js and, optionally, the virtual OPC-UA device and microcontroller firmwares.

---

middleware.js : Version 1.03

The middleware acts as an intermediate layer between GPSS-Plus and physical sensors or actuators.
It must run in a Node.js environment with secure communication (HTTPS / WSS).

Prerequisites

• Node.js version 18 or higher.
• Valid SSL certificates (required for the secure channel).
• Network connectivity between GPSS-Plus and the OPC-UA or MQTT devices.

Certificate Installation

Depending on whether you run it on a private network or a public domain, there are two options:

a) Local Environment – using mkcert

Ideal for testing on internal networks.

Example for mkcert on Debian:

# Create a DNS entry in your domain pointing to your local IP. Example:
ip11.yourdomain.com -> 192.168.1.11

# Install the libnss3-tools package
sudo apt install libnss3-tools

# Download mkcert
wget https://github.com/FiloSottile/mkcert/releases/latest/download/mkcert-v1.4.4-linux-arm

mv mkcert-v1.4.4-linux-arm /usr/local/bin/mkcert
chmod +x /usr/local/bin/mkcert

# Install the root certificate
mkcert -install

# Create the certificate for your specific subdomain:
mkcert ip11.yourdomain.com 192.168.1.11

# Move certificates to a standard location:
mkdir -p /etc/ssl/localcerts
mv ip11.yourdomain.com+1.pem /etc/ssl/localcerts/
mv ip11.yourdomain.com+1-key.pem /etc/ssl/localcerts/

b) Public Server – using Let’s Encrypt

On servers accessible from the Internet, use real certificates from Let's Encrypt.

Edit middleware.js

Edit the middleware.js file to include the certificate paths:

const certOptions = {
    cert: fs.readFileSync("/etc/letsencrypt/live/PATH_CHAIN/fullchain.pem"),
    key: fs.readFileSync("/etc/letsencrypt/live/PATH_PRIVKEY/privkey.pem")
};

Run the installation of required libraries and start the service:

npm install express ws cors aedes node-opcua mysql2 serialport mqtt
node middleware.js

---

Virtual OPC-UA : Version 1.0

This virtual OPC-UA server simulates a set of sensors and actuators, ideal for development and testing without physical hardware.

npm install
node index.js

Expected output: OPC-UA running: opc.tcp://your.domain:4840

---

Firmware for ESP32 : Version 1.0

Basic firmware for ESP32 microcontrollers, designed to send temperature and humidity via MQTT.

• DHT11 / DHT22 sensor reading.
• Periodic publication to MQTT topics.
• Compatible with the middleware.js broker.

---

Firmware for ESP8266 : Version 1.0

Alternative simpler firmware that allows toggling an LED and reading DHT sensors via MQTT.

While BRIDGE_READ and BRIDGE_WRITE are limited to handling simple data variables, BRIDGE_CALL allows GPSS-Plus to execute remote methods or functions defined in the middleware or industrial devices.

This capability is essential for tasks that go beyond pure simulation, such as:

• Accessing external databases or the server's File System (FS).
• Making HTTP requests to third-party APIs (checking weather, prices, real-time stock).
• Executing complex algorithms or heavy mathematical operations outside the simulation engine.

Asynchronous Synchronization (Rest/Wake Pattern)

Since these calls occur over the network, the response is not instantaneous. To prevent an entity from proceeding before receiving the result, the Rest/Wake pattern is used:

1. The entity triggers BRIDGE_CALL.
2. Immediately after, it enters a wait state using rest esperaCall.
3. When the trigger procedure receives the server's response, it identifies the entity via P$(PARAM_B) and releases it with wake.

This mechanism allows for realistic modeling of network latencies and asynchronous processing in industrial systems.

---

Example:

SYSTEM {TYPE:OPTIONS, REAL_TIME:1}
SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

initial txt_error," "

Graphic {Type:TEXT,Name:Text1,X:295,Y:123}
Graphic {Type:TEXT,Name:Text2,X:295,Y:95}
Graphic {Type:TEXT,Name:Text3,X:295,Y:66}
Graphic {Type:TEXT,Name:Text4,X:295,Y:35}
Graphic {Type:TEXT,Name:TextError,X:192,Y:478,Text:"On error...."}

RestRoom {name:esperaCall,x:543,y:488}

Initial options,{user:"user", pass:"1234"}

BRIDGER {NAME:bridge1,X:542,Y:434
	,SERVER:"wss://your-domain.com:3000"
	,CLIENT:"opc.tcp://your-domain.com:4840"
    ,OPTIONS:V$options
    ,on_error:bridge1_on_error
    }

POSITION {NAME:POS1,X:183,Y:300}
POSITION {NAME:POS2,X:422,Y:300}
POSITION {NAME:POS3,X:704,Y:300}

START 10

PROCEDURE PRE_RUN
    ; Subscriptions to monitor network or system errors
	BRIDGE_SUBSCRIPTION { NAME: bridge1, VARIABLE: "HTTP_Request_Error", TRIGGER: bridge1_on_error }
	BRIDGE_SUBSCRIPTION { NAME: bridge1, VARIABLE: "Topics_CurrentTime", TRIGGER: on_clock }

    ; Reading a file from the remote File System (FS)
 	ASSIGN params, [{}]
	BRIDGE_CALL {name:bridge1, trigger:on_read_file, params:V$params, method:"Methods_FS_Read"}

    ; External API request via HTTP
    ASSIGN params, [{ "method": "GET", "params": { "name": "Antonio" } }]
    BRIDGE_CALL { name:bridge1, trigger:on_http, params:V$params, method:"Methods_HTTP_Request" }

	TERMINATE_VE
ENDPROCEDURE 1

GENERATE 3,0,0,10 {NAME:GEN1,X:59,Y:300}
	ADVANCE 3,0 {TO:POS1}
    ; Call a calculation method (Sum) on the server
	ASSIGN params, [{ "Num1": (D$N), "Num2": (0) }]
	BRIDGE_CALL {name:bridge1, trigger:on_call, params:V$params, method:"Methods_Do_Sum"}

    ; Asynchronous synchronization: the entity waits for the response
    rest esperaCall
    mod {subtitle:"Sum: P$(suma)"}

    ADVANCE 4,4 {TO:POS2}
	ASSIGN params, [{ "Num1": (D$N), "Num2": (D$N) }]
	BRIDGE_CALL {name:bridge1, trigger:on_call, params:V$params, method:"Methods_Do_Sum"}
    rest esperaCall
    mod {subtitle:"Sum2: P$(suma)"}
    ADVANCE 4,4 {TO:POS3}
ENDGENERATE 1

; --- Callback Procedures ---
procedure on_clock
    move {name:Text2,TEXT:"Server Time: P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure

procedure on_read_file
    move {name:Text3,TEXT:"File Content: P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure

procedure on_http
    move {name:Text4,TEXT:"HTTP Response: P$(PARAM_A.VALUE.message)"}
	TERMINATE_VE
endprocedure

procedure on_call
	move {name:Text1,TEXT:"Remote Sum: P$(PARAM_A.sum) Entity: P$(PARAM_B)"}
	assign suma,P$(PARAM_A.sum),P$(PARAM_B)
    ; Wake the specific entity that made the call
    wake esperaCall,-1,P$(PARAM_B)
	TERMINATE_VE
endprocedure

procedure bridge1_on_error
	savevalue txt_error,"X$txt_error\nP$(PARAM_A.VALUE)"
    move {name:TextError,TEXT:"X$txt_error"}
	TERMINATE_VE
endprocedure

The MQTT communication protocol is a standard for IoT devices.

It works through "topics", similar to social media tags. A device like a thermometer sends the obtained temperature without knowing who will request or read it.

Therefore, an "MQTT broker" is required to constantly listen to what the sensors send and be ready to transmit it to whoever needs it.

While a standard broker is Mosquitto, middleware.js incorporates a very similar functionality.

So we return to the same system architecture:

GPSS-Plus <-> (middleware.js + MQTT broker) <-> device

At this point, we move on to programming and using extra hardware.

Don't worry too much; it would be advisable to have some basic knowledge of C programming, but in general, it is enough to ask your favorite AI to build what you need.

We are going to program an ESP8266 microcontroller with WIFI to manage:

• A BH1750 light sensor
• A DHT22 humidity and temperature sensor
• Turning an LED on and off (protected by a resistor).

For this, we will use these hardware elements and software to flash the ESP8266 firmware.

A simple one is "Arduino IDE", which contains all the necessary libraries.

A quick roadmap to follow is:

• 1.- Obtain the hardware.
• 2.- Download Arduino IDE.
• 3.- Install the necessary driver to connect your device via USB simulating a serial port.
• 4.- Compile the firmware's C code in Arduino IDE (available in the downloads chapter).
• 5.- Upload it to the device through Arduino IDE.
• 6.- Send your WIFI credentials and the broker's IP through the serial console.
• 7.- Run GPSS-Plus and watch the real temperature and humidity data while toggling the LED.

In the example, we can see how the three standard MQTT options are performed:

• Subscribing to a sensor (reading humidity).
• Writing to a command (turning on an LED).
• Checking status (Last Will and Testament - LWT).

Note: The WRITE check ("OK" response) is something reported by the BRIDGER at the network layer, not the end device itself.

---

Example:

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}
SYSTEM {TYPE:OPTIONS, REAL_TIME:1}


Initial options,{  }

BRIDGER {NAME:bridge1,X:733,Y:556
	,SERVER:"wss://yourdomain.com:3000"
	,CLIENT:"mqtt://localhost"
    ,OPTIONS:V$options
    ,on_error:bridge1_on_error
    }


POSITION {NAME:POS1,X:101,Y:378}

POSITION {NAME:POS2,X:143,Y:115}


Graphic {NAME:txtSubscribeL,Type:TEXT,X:394,Y:465,Text:"On SUBS"}
Graphic {NAME:txtSubscribeH,Type:TEXT,X:394,Y:435,Text:"On SUBS"}
Graphic {NAME:txtSubscribeT,Type:TEXT,X:394,Y:405,Text:"On SUBS"}
Graphic {NAME:txtSubscribeS,Type:TEXT,X:394,Y:375,Text:"On SUBS"}

Graphic {NAME:TextBrowse,Type:TEXT,X:116,Y:283,Text:"On Browse"}
Graphic {NAME:TextWrite,Type:TEXT,X:391,Y:59,Text:"On Write"}
Graphic {NAME:TextError,Type:TEXT,X:424,Y:582,Text:"Error"}


START 10

;*****************************************************

PROCEDURE PRE_RUN
    BRIDGE_SUBSCRIPTION { NAME: bridge1
	, VARIABLE: "devices/elprimero/sensor/humidity"
    , TRIGGER: on_humidity
    }
    BRIDGE_SUBSCRIPTION { NAME: bridge1
	, VARIABLE: "devices/elprimero/sensor/lux"
    , TRIGGER: on_luz
    }
    BRIDGE_SUBSCRIPTION { NAME: bridge1
	, VARIABLE: "devices/elprimero/sensor/temperature"
    , TRIGGER: on_temperature
    }
    BRIDGE_SUBSCRIPTION { NAME: bridge1
	, VARIABLE: "devices/elprimero/status"
    , TRIGGER: on_status
    }

; No output for MQTT
BRIDGE_BROWSE {name:bridge1, trigger:on_BROWSE }



	TERMINATE_VE
ENDPROCEDURE

;*****************************************************
GENERATE 5,0 {NAME:GEN1,X:91,Y:547}

ADVANCE 5,0 {TO:POS1,flow:1}


if (D$N% 2== 1)
ASSIGN values, {"devices/elprimero/commands/led": "on"}
BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}
else
ASSIGN values, {"devices/elprimero/commands/led": "off"}
BRIDGE_WRITE { name:bridge1, VALUES:V$values ,TRIGGER:on_write}
endif

ADVANCE 5,0 {TO:POS2,flow:1}

ENDGENERATE 1
;----------------------------------------------------------------------------
procedure on_read
    move {name:TextRead,TEXT:"WIFI: P$(PARAM_A)"}
	TERMINATE_VE
endprocedure

procedure bridge1_on_error
    move {name:TextError,TEXT:"P$PARAM_A"}
	TERMINATE_VE
endprocedure
;-------------------------
procedure on_write
move {name:TextWrite,TEXT:"WRITE T:AC1$: P$(PARAM_A.devices/elprimero/commands/led)"}
	TERMINATE_VE
endprocedure



procedure on_luz
	move {name:txtSubscribeL,text:"Subs LUX P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure

procedure on_humidity
	move {name:txtSubscribeH,text:"Subs HUM P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure

procedure on_temperature
	move {name:txtSubscribeT,text:"Subs TEM P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure



procedure on_status
	move {name:txtSubscribeS,text:"Subs STA P$(PARAM_A.VALUE)"}
	TERMINATE_VE
endprocedure






procedure on_BROWSE
   move {name:TextBrowse,text:"on_BROWSE P$(PARAM_A)"}
	TERMINATE_VE
endprocedure

OPC-UA Virtual Device Manual

This document describes the virtual devices and sensors simulated by the Virtual OPC-UA Plant server. This server is ideal for testing logic before deploying to real industrial PLCs.

1. PIDControl

Simulates a PID temperature control loop. Useful for testing OPC_WRITE by changing setpoints.

• PIDControl_CurrentTemperature: Current temperature (read-only)
• PIDControl_Setpoint: Target temperature (read-write)
• PIDControl_PIDOutput: PID output signal (read-only)

2. Sensor_Door & Motion

Simulates physical access sensors.

• Sensor_Motion_Detected: Boolean indicating motion (read-only)
• Sensor_Door_IsOpen: Boolean indicating if the door is open (read-write)

3. Environmental & Proximity Sensors

A collection of read-only sensors for monitoring conditions.

• Sensor_Humidity_Value: Humidity level in %
• Sensor_Proximity_Distance: Distance to object in cm
• Sensor_Light_Lux: Light level in lux
• Sensor_Gas_Concentration: Gas concentration in ppm
• Sensor_Vibration_Level: Vibration intensity
• Sensor_Smoke_Detected: Boolean presence of smoke

4. System Status

• Sensor_Battery_Level: Battery level in %
• Sensor_Network_Strength: Signal strength (0-100)
• System_PowerStatus_IsPowered: Boolean power status

---

Note: Writable variables are intended for use with commands such as OPC_WRITE. Changes in these variables may trigger logic updates in the virtual plant simulation.

---

Example:

SYSTEM {TYPE:PRE_RUN,TRIGGER:PRE_RUN}

OPC {NAME:opc1,X:100,Y:121,visible:1, TYPE:REAL,
    CLIENT:"opc.tcp://192.168.1.10:4840"}

POSITION {NAME:POS1,X:251,Y:335}
POSITION {NAME:POS2,X:469,Y:341}

Graphic {NAME:Text1,Type:TEXT,X:425,Y:314,Text:"Entity"}
Graphic {NAME:Text2,Type:TEXT,X:424,Y:124,Text:"Data"}
Graphic {NAME:Text3,Type:TEXT,X:425,Y:514,Text:"Write Status"}
Graphic {NAME:Text4,Type:TEXT,X:115,Y:398,Text:"Door Sensor"}

initial nAgente,0
START 500

;*****************************************************

PROCEDURE PRE_RUN
    OPC_SUBSCRIPTION { NAME: opc1
        , VARIABLE: "PIDControl_CurrentTemperature"
        , TRIGGER: on_subscription
        }
    OPC_SUBSCRIPTION { NAME: opc1
        , VARIABLE: "Sensor_Door_IsOpen"
        , TRIGGER: door_opened
        }
	TERMINATE_VE
ENDPROCEDURE 1

;*****************************************************
GENERATE 0,0,0,0 {NAME:GEN1,X:43,Y:300}

if (D$N==1)
    ASSIGN values, { PIDCONTROL_SETPOINT: 10 }
    OPC_WRITE { NAME: opc1, VALUES: V$values ,async:1,trigger:on_write}
endif

OPC_READ {name:opc1, savevalue:temperature  }

move {name:Text1,TEXT:"READ Result: X$(temperature.Sensor_Proximity_DistanceInCm)"}

ADVANCE 20,0 {TO:pos1}

ENDGENERATE 1

procedure on_subscription
    move {name:Text2,TEXT:"Subscription AC1$:\n P$PARAM_A \N P$PARAM_B P$PARAM_C"}
    TERMINATE_VE
endprocedure

procedure on_write
    move {name:Text3,TEXT:"Write AC1$:\n P$PARAM_A \N P$PARAM_B P$PARAM_C"}
	TERMINATE_VE
endprocedure

procedure door_opened
    move {name:Text4,TEXT:"DOOR AC1$ ; P$PARAM_A"}
    if (P$(PARAM_A.value)==1)
    	NEW GEN1
    endif
	TERMINATE_VE
endprocedure
